Fujitsu AOU36RLXB Technical Manual

-
(
02 - 05
)
-
OUTDOOR UNIT AOU18-36RL OUTDOOR UNIT AOU18-36RL
MODEL

:AOU30RLXB, AOU36RLXB
Th
R
Th
PI
Th
R
Th
PI
Th
D
Th
D
Th
C
Th
C
Th
O
Th
O
Th
HO
Th
HO

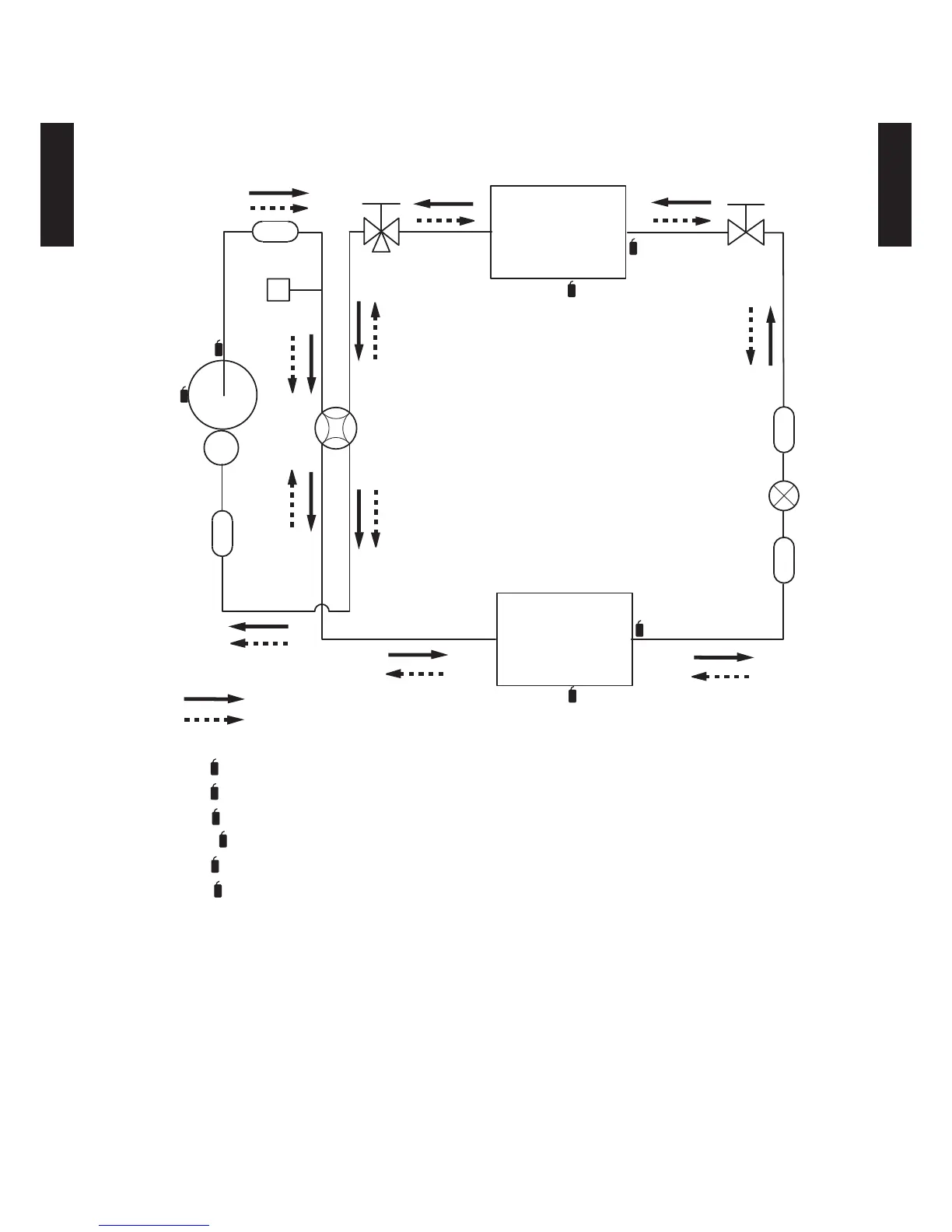

Thermistor (Room Temp.)
Thermistor (Pipe Temp.)
Thermistor (Discharge Temp.)
Thermistor (Compressor Temp.)
Thermistor (Outdoor Temp.)
Thermistor (Heat Exchanger Out Temp.)
Compressor
Pressure
switch
Muffler
Heat exchanger
(INDOOR)
Heat exchanger
(OUTDOOR)
3-Way
valve
(Large)
3-Way
valve
(Small)
4-Way valve
Cooling
Refrigerant pipe diameter
Liquid: 3/8” (9.52 mm)
Gas: 5/8” (15.88 mm)
Heating
Strainer
Strainer
Expansion valve
Sub-accumulator
