Fujitsu AOU36RLXB Technical Manual

-
(
02 - 09
)
-
OUTDOOR UNIT AOU18-36RL OUTDOOR UNIT AOU18-36RL
MODEL

:AOU30RLXB, AOU36RLXB

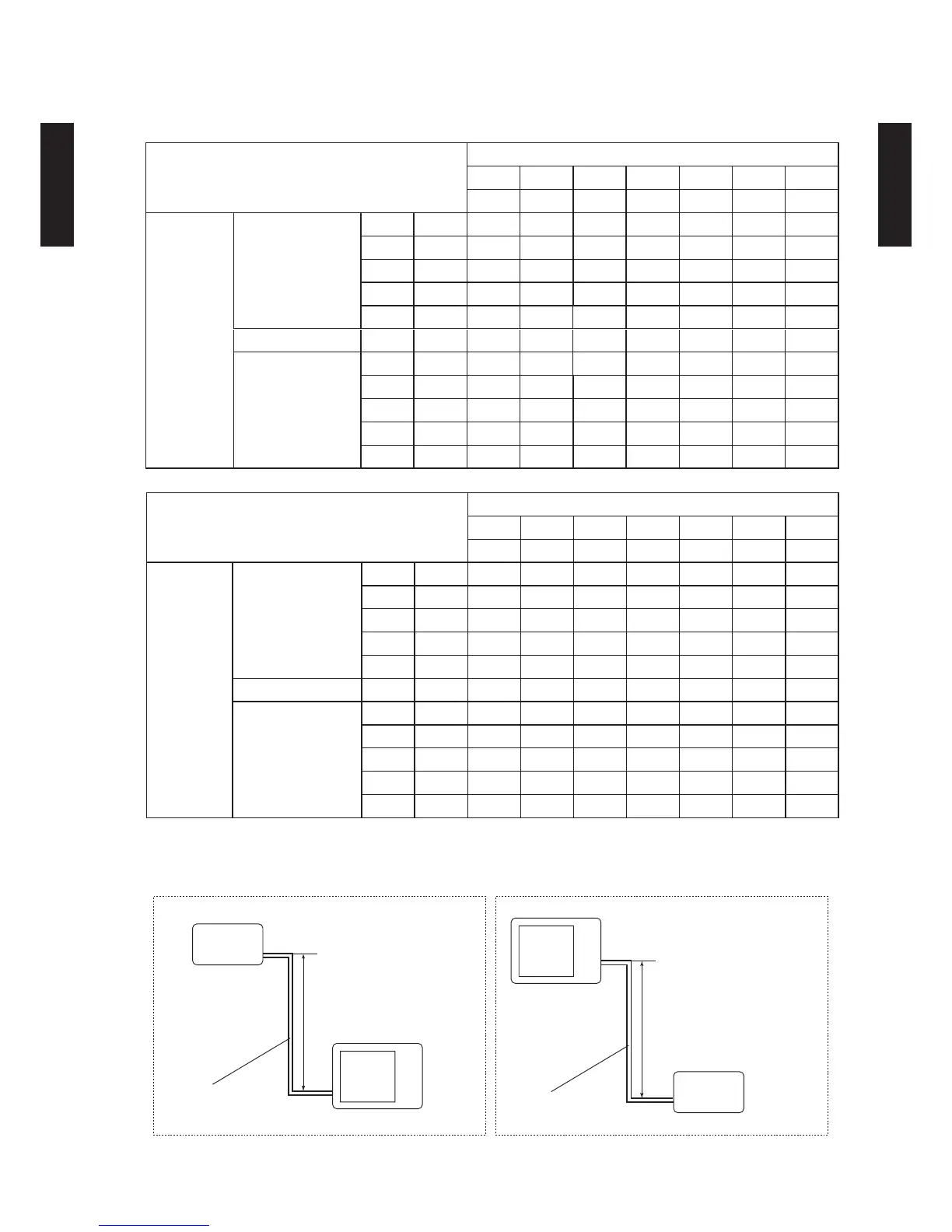

Height difference H

1 Indoor unit is upper than outdoor unit.

2 Indoor unit is under than outdoor unit.
Indoor unit
Indoor unit
Connection pipe
Outdoor unit
Outdoor unit
Connection pipe
HH
COOLING
Pipe length
5m 7.5m 10m 20m 30m 40m 50m
16ft. 25ft. 33ft. 66ft. 99ft. 131ft. 164ft.
Height
difference H

1
Indoor unit is upper
than outdoor unit.
30m 99ft. - - - - 0.932 0.929 0.924
20m 66ft. - - - 0.945 0.947 0.945 0.940
10m 33ft. - - 0.984 0.961 0.963 0.960 0.956
7.5m 25ft. - 0.988 0.988 0.965 0.967 0.964 0.959
5m 16ft. 0.990 0.992 0.992 0.968 0.971 0.968 0.963
0m 0ft. 0.998 1.000 1.000 0.976 0.979 0.976 0.971

2
Indoor unit is under
than outdoor unit
-5m -16ft. 0.998 1.000 1.000 0.976 0.979 0.976 0.971
-7.5m -25ft. - 1.000 1.000 0.976 0.979 0.976 0.971
-10m -33ft. - - 1.000 0.976 0.979 0.976 0.971
-20m -66ft. - - - 0.976 0.979 0.976 0.971
-30m -99ft. - - - - 0.979 0.976 0.971
HEATING
Pipe length
5m 7.5m 10m 20m 30m 40m 50m
16ft. 25ft. 33ft. 66ft. 99ft. 131ft. 164ft.
Height
difference H

1
Indoor unit is upper
than outdoor unit.
30m99ft.----0.816 0.756 0.686
20m 66ft. - - - 0.872 0.816 0.756 0.686
10m 33ft. - - 0.991 0.872 0.816 0.756 0.686
7.5m 25ft. - 1.000 0.991 0.872 0.816 0.756 0.686
5m 16ft. 0.986 1.000 0.991 0.872 0.816 0.756 0.686
0m 0ft. 0.986 1.000 0.991 0.872 0.816 0.756 0.686

2
Indoor unit is under
than outdoor unit
-5m -16ft. 0.981 0.995 0.986 0.868 0.812 0.752 0.683
-7.5m -25ft. - 0.993 0.983 0.866 0.810 0.750 0.681
-10m -33ft. - - 0.981 0.864 0.808 0.748 0.679
-20m -66ft. - - - 0.855 0.799 0.740 0.672
-30m-99ft.----0.791 0.733 0.665
