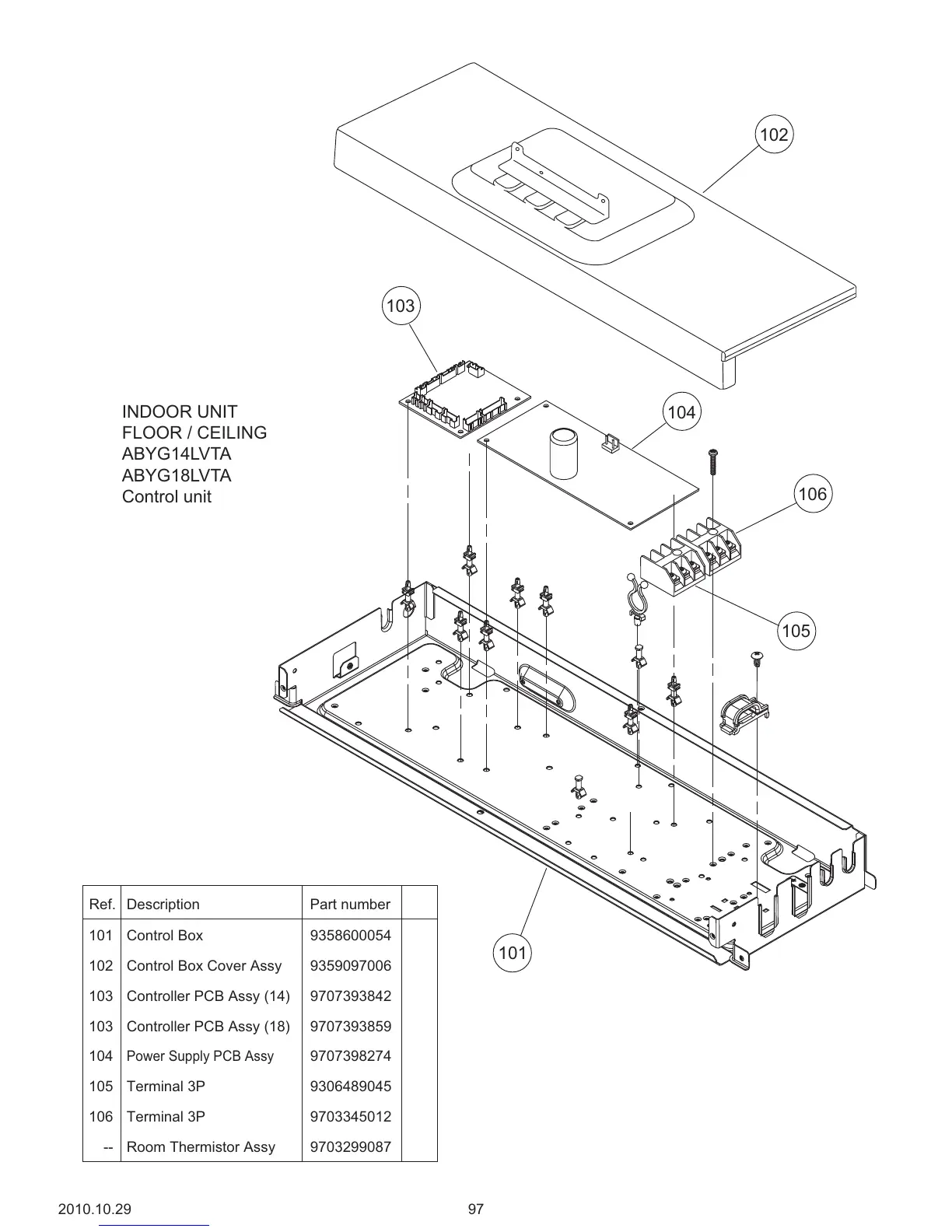

INDOOR UNIT
FLOOR / CEILING
ABYG14LVTA
ABYG18LVTA
Control unit
97
102
104
105
101
103
106
101 Control Box 9358600054
-- Room Thermistor Assy 9703299087
103 Controller PCB Assy (18) 9707393859
103 Controller PCB Assy (14) 9707393842
102 Control Box Cover Assy 9359097006
105 Terminal 3P 9306489045
106 Terminal 3P 9703345012
9707398274104
Power Supply PCB Assy
Ref. Description Part number
2010.10.29
