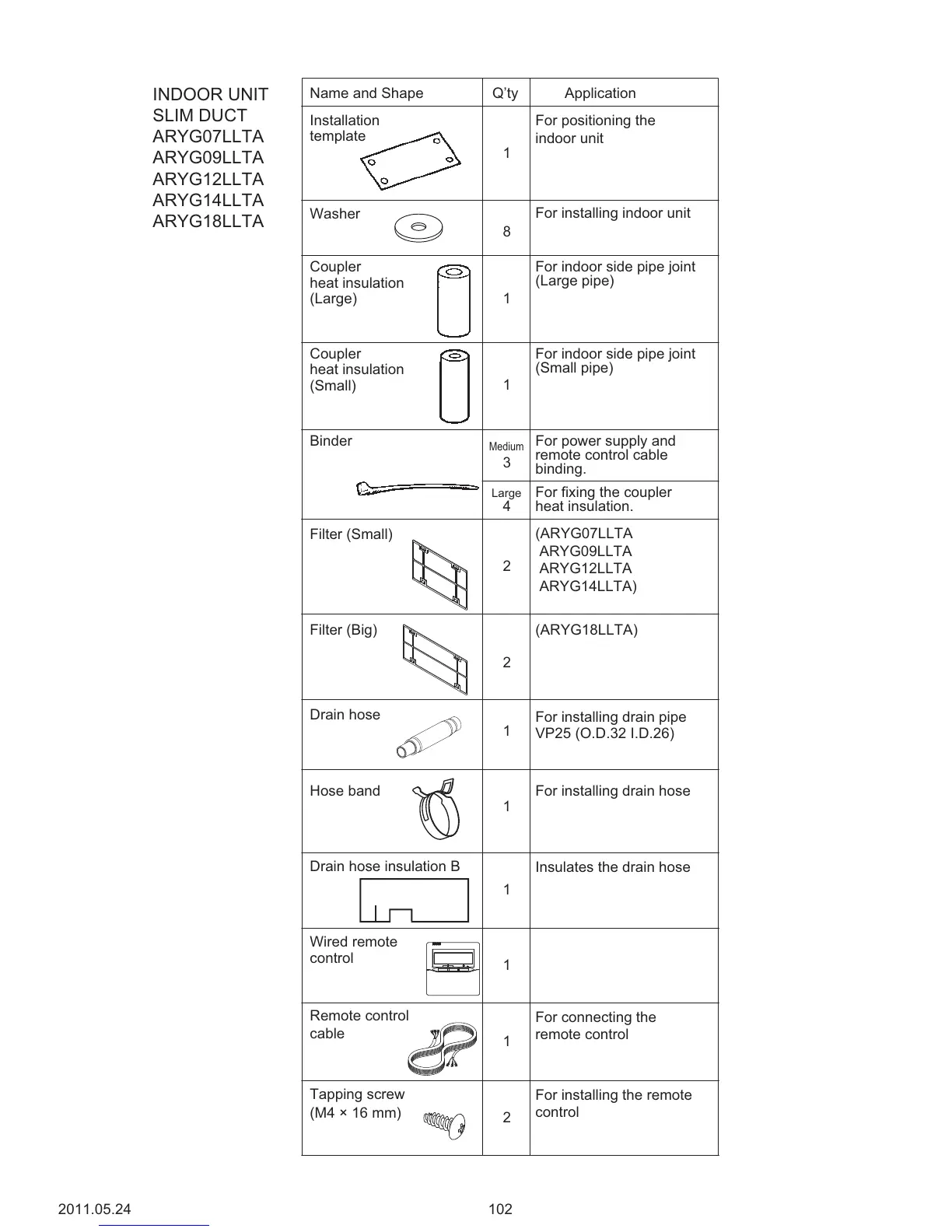

Name and Shape Q’ty Application
Installation
template
1
For positioning the
indoor unit
Washer
8
For installing indoor unit
Coupler
heat insulation
(Large)
1
For indoor side pipe joint
(Large pipe)
Coupler
heat insulation
(Small)
1
For indoor side pipe joint
(Small pipe)
Binder
Medium
3
For power supply and
remote control cable
binding.
Large
4
For fixing the coupler
heat insulation.
Filter (Small)
2
(ARYG07LLTA
ARYG09LLTA
ARYG12LLTA
ARYG14LLTA)
Filter (Big)
2
(ARYG18LLTA)
Drain hose
1
For installing drain pipe
VP25 (O.D.32 I.D.26)
Hose band
1
For installing drain hose
Drain hose insulation B
1
Insulates the drain hose
Wired remote
control
1
Remote control
cable
1
For connecting the
remote control
Tapping screw
(M4 × 16 mm)
2
For installing the remote
control
1022011.05.24
INDOOR UNIT
SLIM DUCT
ARYG07LLTA
ARYG09LLTA
ARYG12LLTA
ARYG14LLTA
ARYG18LLTA
