1
11
732011.02.17
2
5
8
7
4
6
9
10
9
12
12
9
9
3

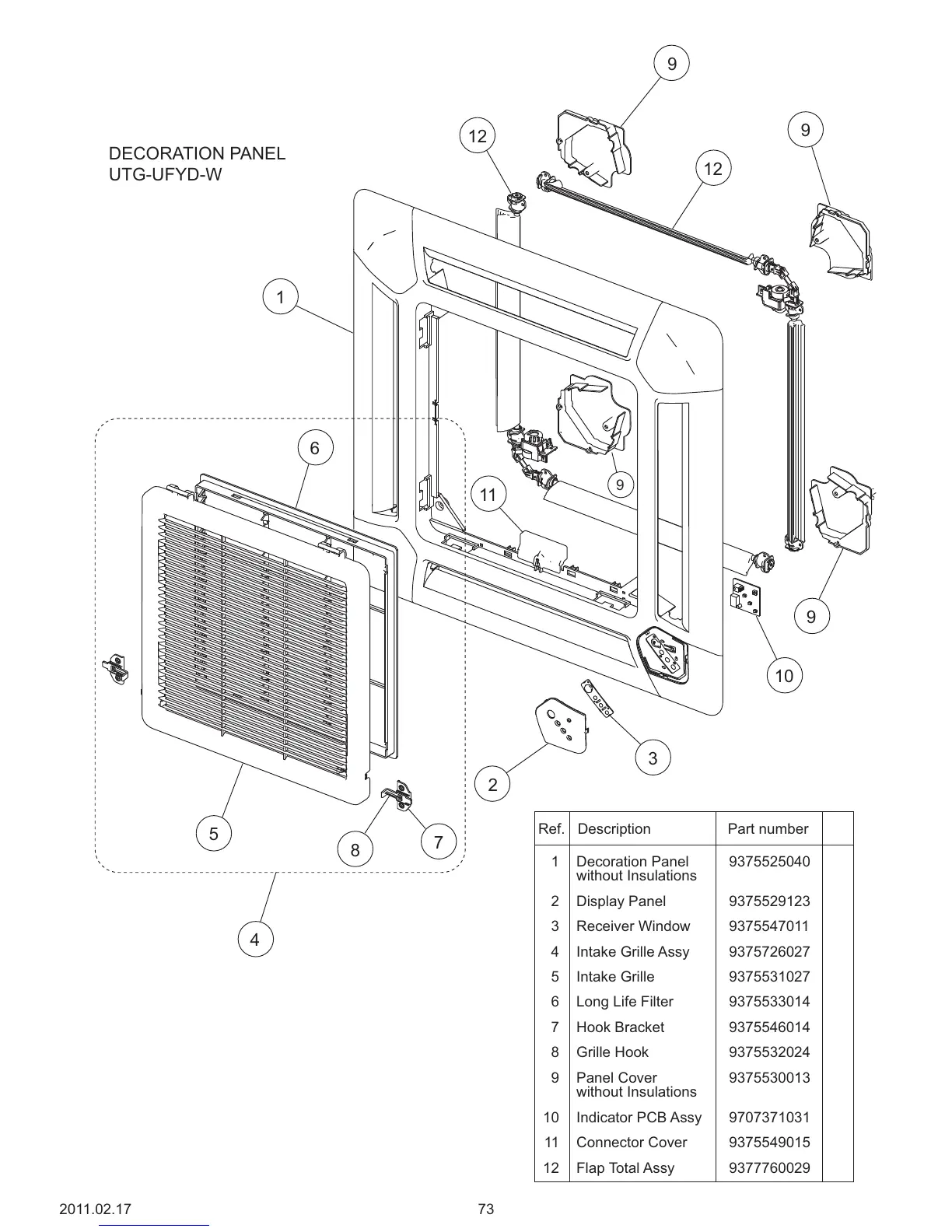

DECORATION PANEL
UTG-UFYD-W
Ref. Description
1 Decoration Panel
without Insulations
9375525040
2 Display Panel
9375529123
3 Receiver Window 9375547011
5 Intake Grille 9375531027
6 Long Life Filter 9375533014
12 Flap Total Assy 9377760029
7 Hook Bracket 9375546014
9375532024
9375530013
8 Grille Hook
9 Panel Cover
without Insulations
10 Indicator PCB Assy
9707371031
11 Connector Cover 9375549015
4 Intake Grille Assy 9375726027
Part number
