55
1 Top Panel Sub Assy
2 Front Panel Sub Assy
3 Service Panel Sub Assy
6 Right Panel Sub Assy
5 Valve Cover Sub Assy
4 Emblem Rear
9374417025
9374414116
9374415038
9374416059
9374827015
9351355005
-- Protective Net 9375381011
7 Thermo holder 9374177011
Ref. Description Part number

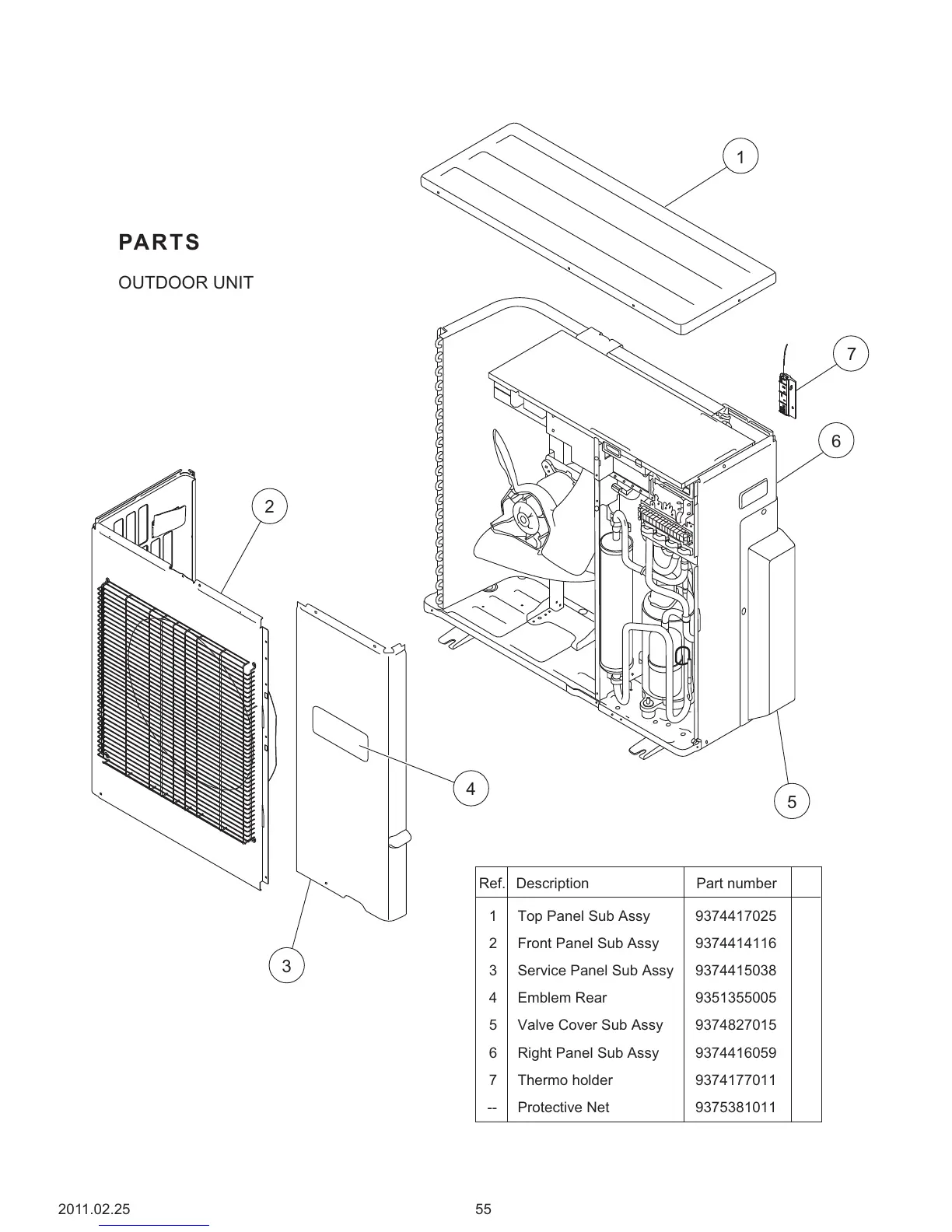

OUTDOOR UNIT
PA R T S
2
1
4
3
5
6
7
2011.02.25
