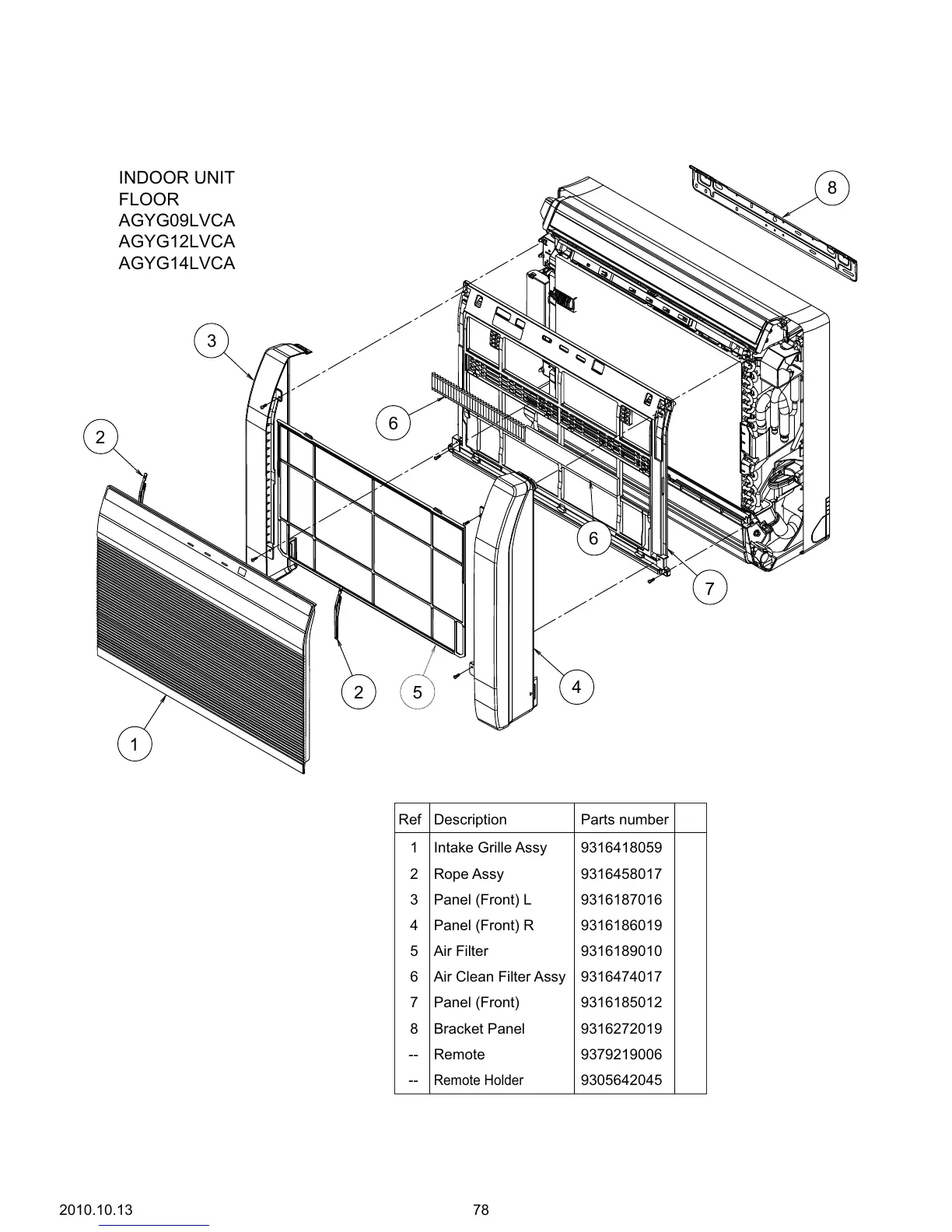

INDOOR UNIT
FLOOR
AGYG09LVCA
AGYG12LVCA
AGYG14LVCA
782010.10.13
1
2
2
3
4
7
6
6
8
1 Intake Grille Assy
2 Rope Assy
3 Panel (Front) L
4 Panel (Front) R
6 Air Clean Filter Assy
Parts numberDescriptionRef
9316418059
9316458017
9316187016
9316186019
9316474017
Remote Holder
-- 9305642045
-- Remote 9379219006
Bracket Panel8 9316272019
7 Panel (Front) 9316185012
5
5 Air Filter 9316189010
