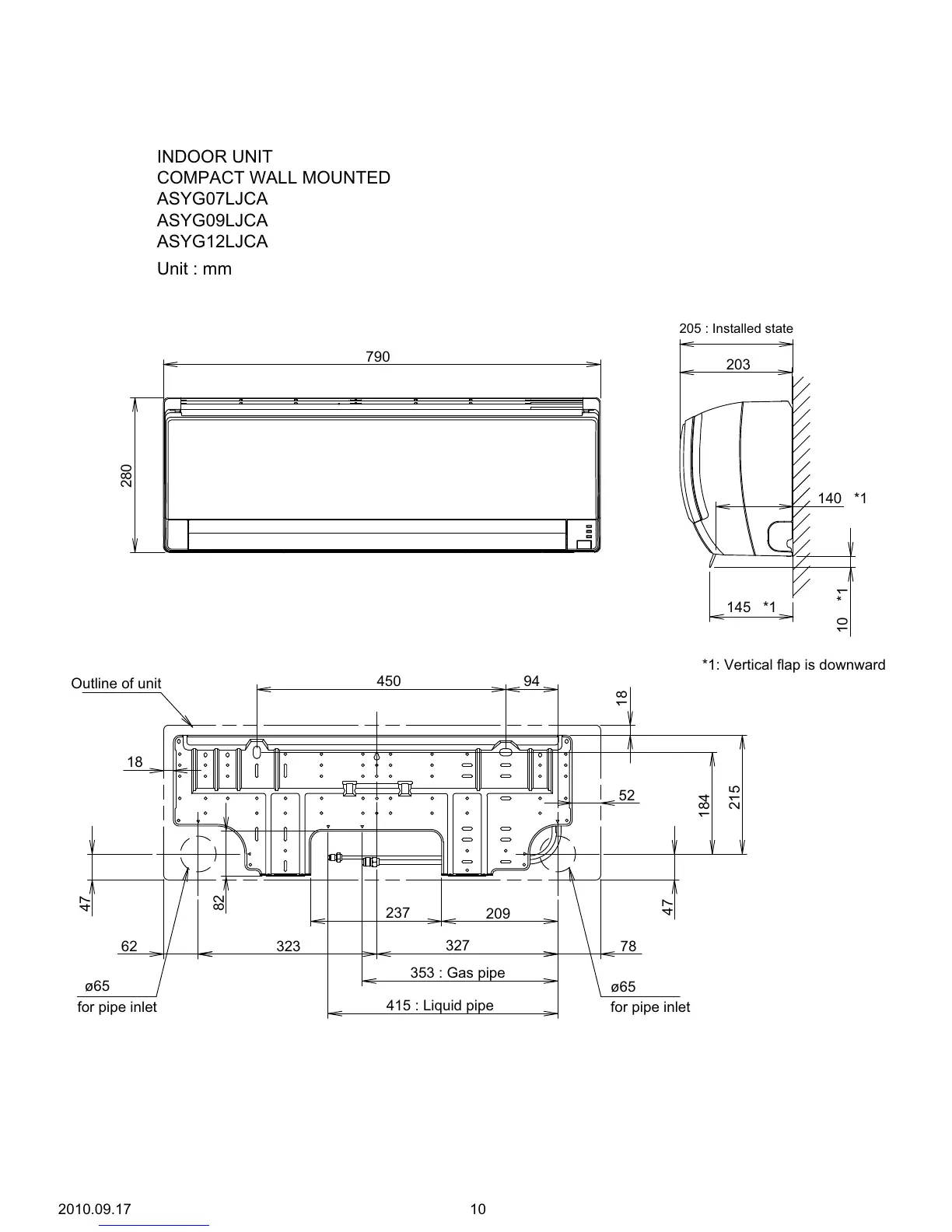

INDOOR UNIT
COMPACT WALL MOUNTED
ASYG07LJCA
ASYG09LJCA
ASYG12LJCA
205 : Installed state
*1: Vertical flap is downward
203
140 *1
10 *1
145 *1
790
280
94
52
78
ø65
for pipe inlet
ø65
for pipe inlet
Outline of unit
323
353 : Gas pipe
415 : Liquid pipe
327
237
450
209
62
18
47
47
184
215
18
82
