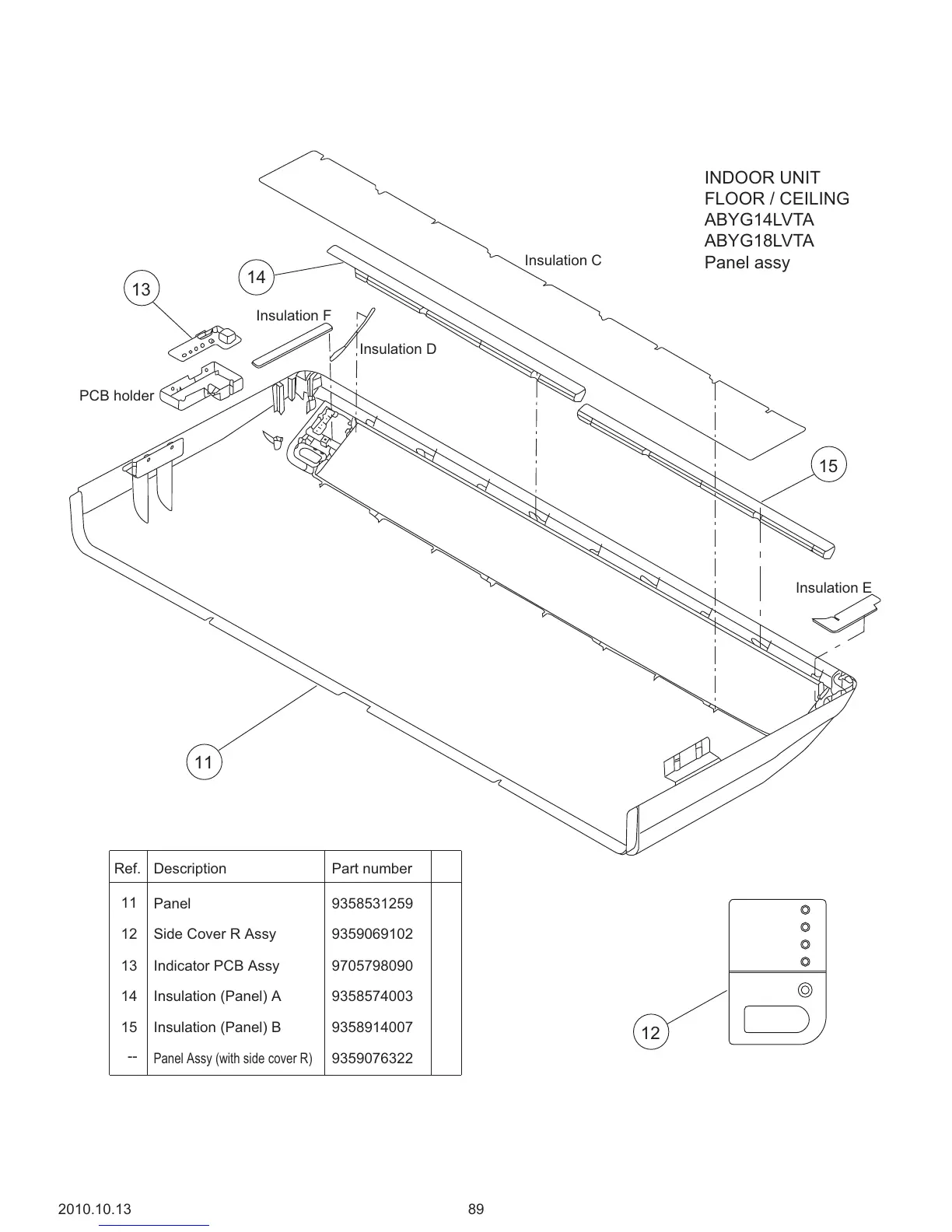

INDOOR UNIT
FLOOR / CEILING
ABYG14LVTA
ABYG18LVTA
Panel assy
89
11
12
15
14
13
13 Indicator PCB Assy 9705798090
14 Insulation (Panel) A 9358574003
15 Insulation (Panel) B 9358914007
11
Panel Assy (with side cover R)
9359076322
12 Side Cover R Assy 9359069102
--
Panel
Insulation F
PCB holder
Insulation D
Insulation E
Insulation C
9358531259
Ref. Description
Part number
2010.10.13
