5V
D206 EMPG3863X GREEN
D207 EMAA3863X ORANGE
R202 330
<1/4W>
R203 330
<1/4W>
PHA201
PIC-37143TH5
JM201
VCC
OUT
GND
2
1
3
C201
0.1
<F>
C202
10/
16V
+
SW201
EVQPAG04K
1
3
2
4
1
2
3
4
5
6
7
8
CN201
08 / 08 JC25 / XMR
BROWN
RED
ORANGE
YELLOW
WHITE
BLUE
PURPLE
GRAY

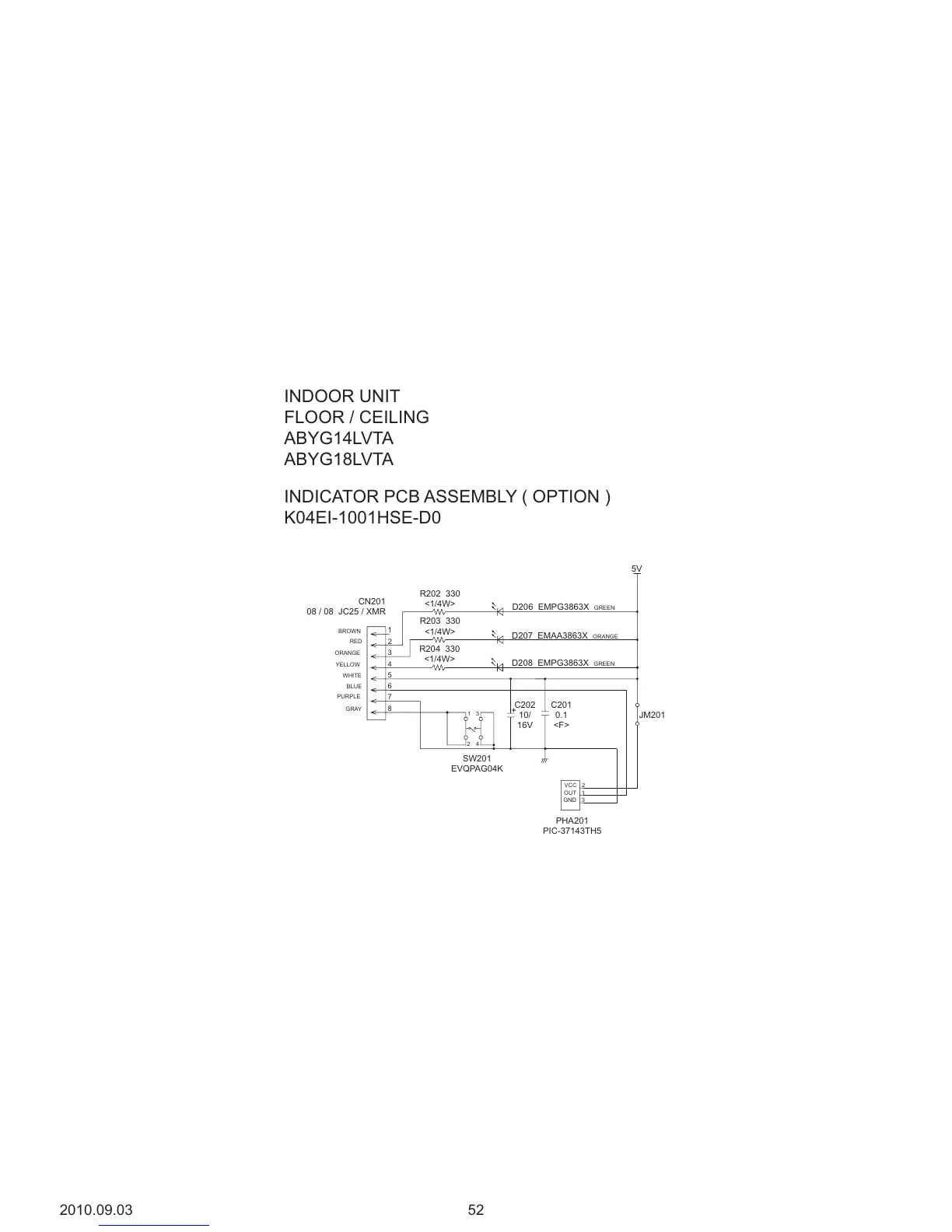

INDICATOR PCB ASSEMBLY ( OPTION )
K04EI-1001HSE-D0
INDOOR UNIT
FLOOR / CEILING
ABYG14LVTA
ABYG18LVTA
2010.09.03
D208 EMPG3863X GREEN
R204 330
<1/4W>
52
