Fujitsu AOYG18LAT3 User Manual

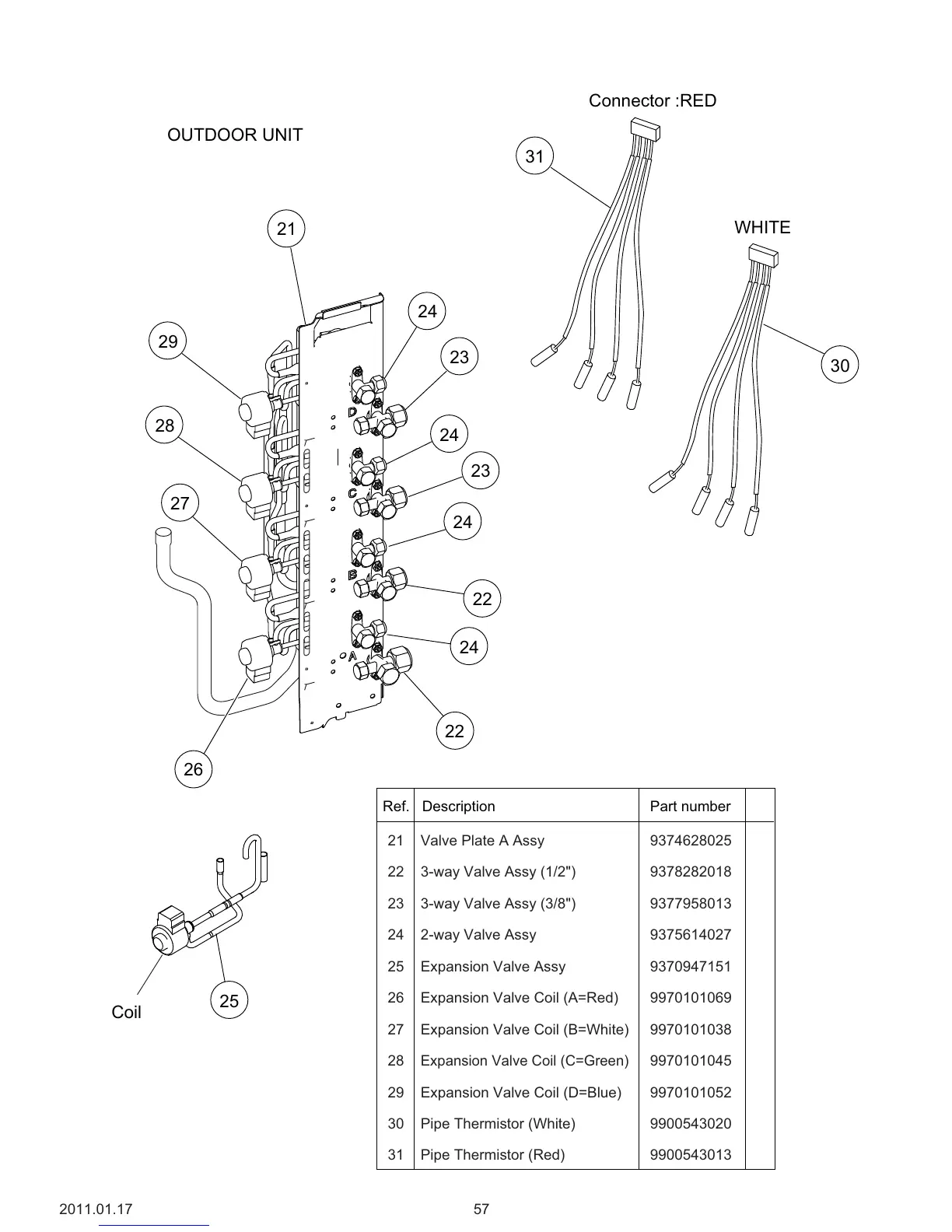

OUTDOOR UNIT
29
28
27
26
21
24
23
24
23
24
22
24
22
572011.01.17
31
30
Connector :RED
WHITE
21 Valve Plate A Assy
22
23
3-way Valve Assy (1/2")
24 2-way Valve Assy
26 Expansion Valve Coil (A=Red)
27 Expansion Valve Coil (B=White)
28 Expansion Valve Coil (C=Green)
29 Expansion Valve Coil (D=Blue)
9374628025
3-way Valve Assy (3/8") 9377958013
9378282018
9375614027
9370947151
9970101069
9970101038
9970101045
9970101052
Ref. Description Part number
30
31 Pipe Thermistor (Red)
Pipe Thermistor (White) 9900543020
9900543013
25
25 Expansion Valve Assy
Coil
