Fujitsu AOYG18LAT3 User Manual

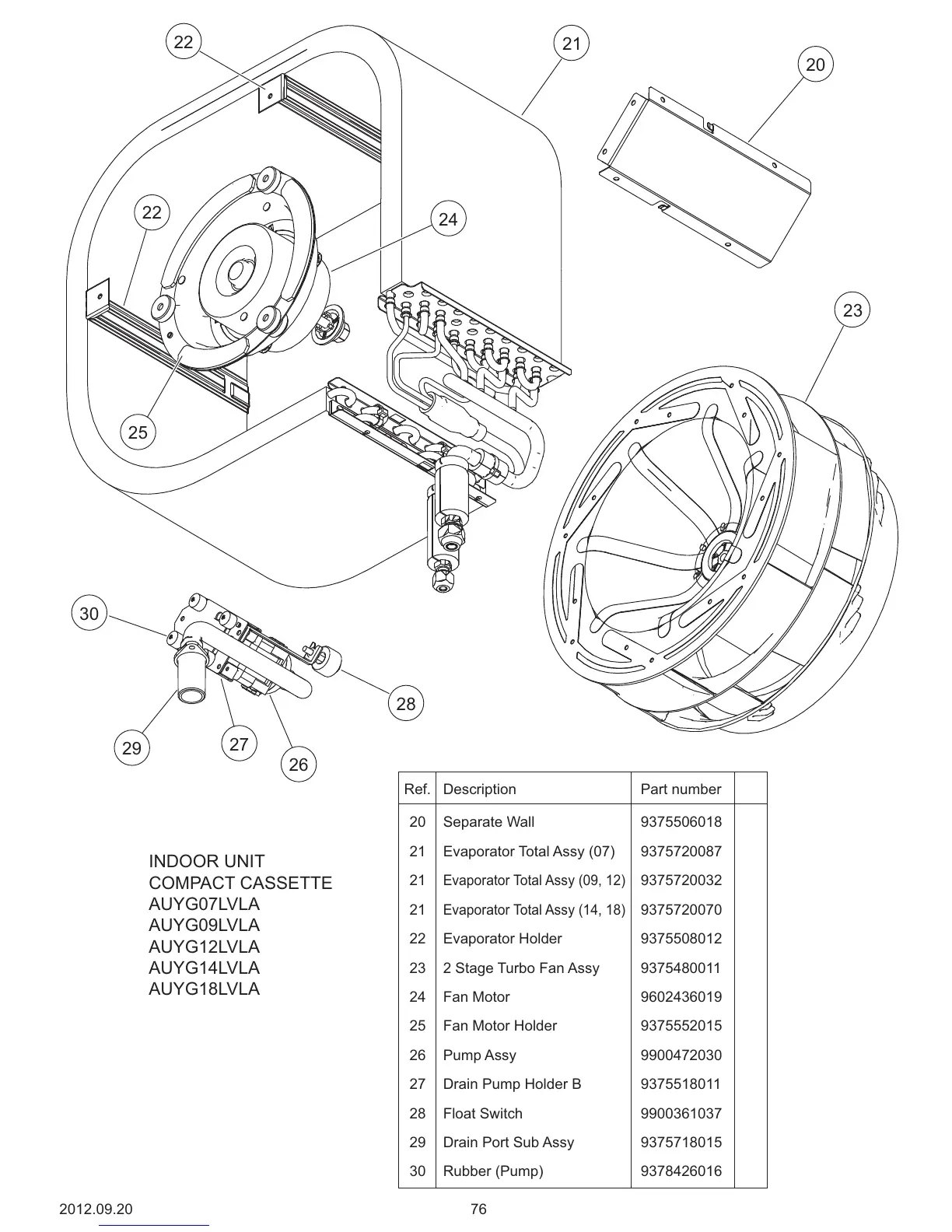

INDOOR UNIT
COMPACT CASSETTE
AUYG07LVLA
AUYG09LVLA
AUYG12LVLA
AUYG14LVLA
AUYG18LVLA
23
20
23 2 Stage Turbo Fan Assy 9375480011
21
Evaporator Total Assy (09, 12) 9375720032
21
Evaporator Total Assy (07) 9375720087
21
Evaporator Total Assy (14, 18) 9375720070
22 Evaporator Holder 9375508012
24 Fan Motor 9602436019
25 Fan Motor Holder 9375552015
28 Float Switch 9900361037
29 Drain Port Sub Assy 9375718015
30 Rubber (Pump) 9378426016
20 Separate Wall 9375506018
26 Pump Assy
9900472030
27 Drain Pump Holder B 9375518011
Ref. Description Part number
762012.09.20
21
22
22
25
24
28
26
29
30
27
