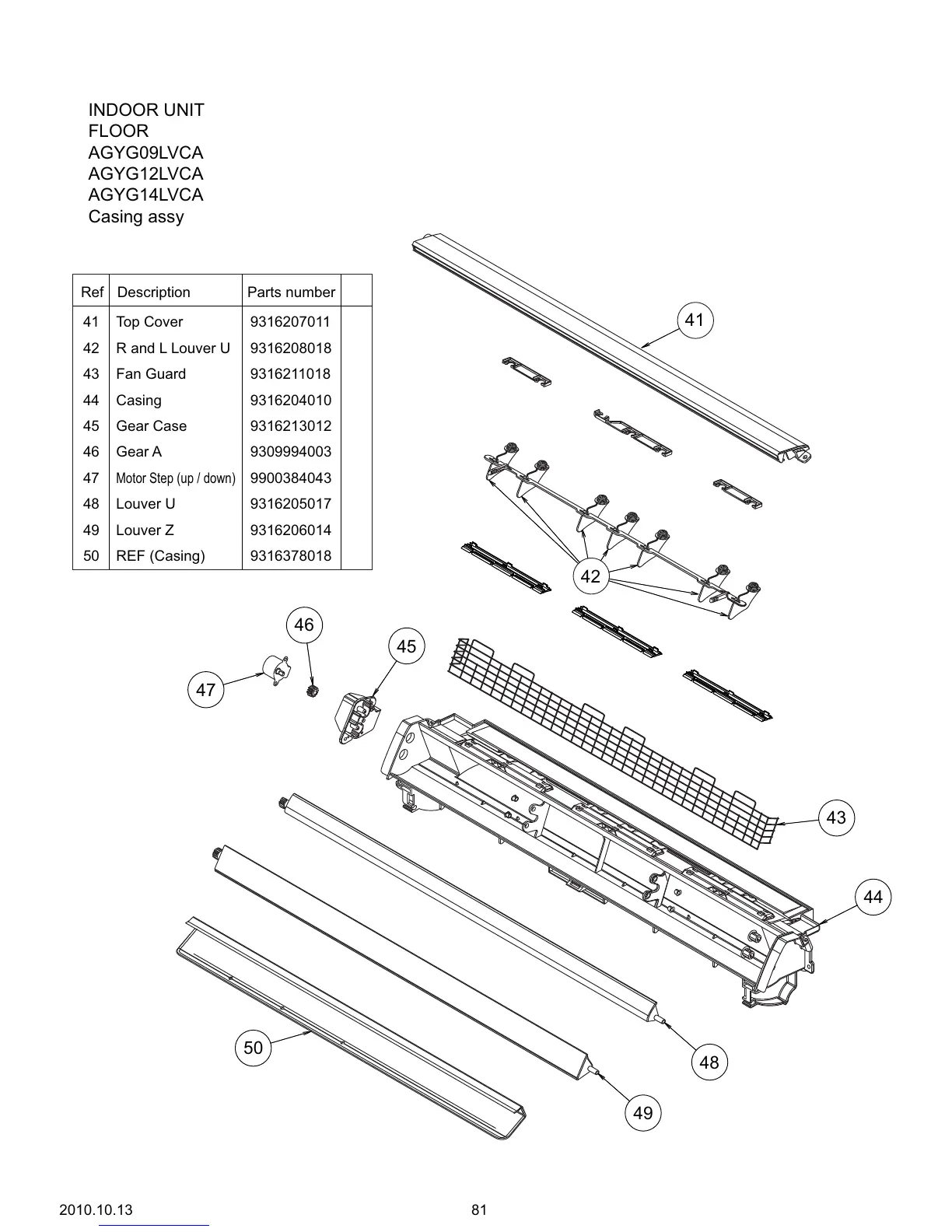

INDOOR UNIT
FLOOR
AGYG09LVCA
AGYG12LVCA
AGYG14LVCA
Casing assy
41 Top Cover
R and L Louver U42
Parts numberDescriptionRef
9316207011
9316208018
Casing
43
9316204010
Fan Guard 9316211018
812010.10.13
50
41
43
47
48
49
46
45
44
42
44
Motor Step (up / down)
46
9900384043
Gear A
45
9309994003
Gear Case 9316213012
REF (Casing)
49
50 9316378018
Louver Z
48
9316206014
Louver U
47
9316205017
