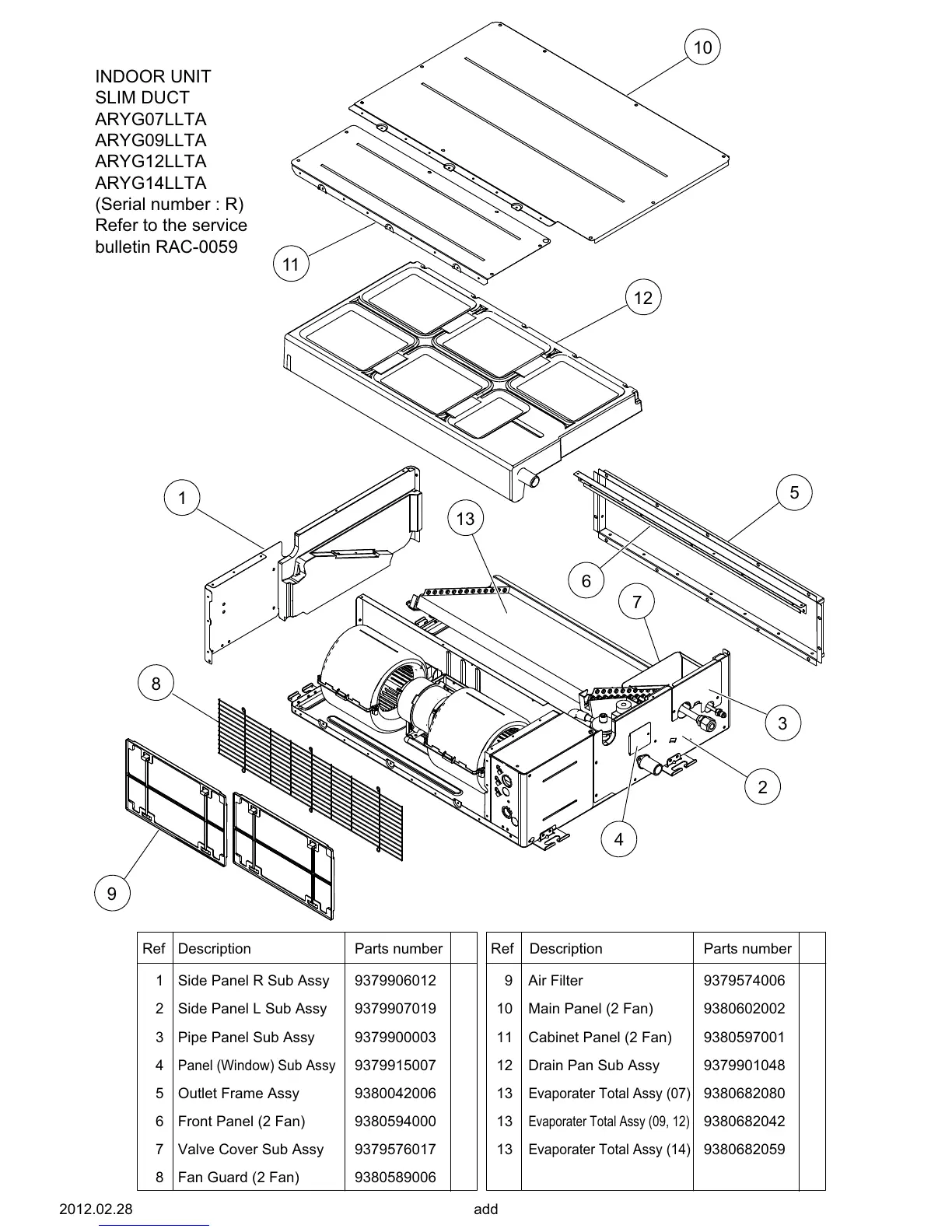

INDOOR UNIT
SLIM DUCT
ARYG07LLTA
ARYG09LLTA
ARYG12LLTA
ARYG14LLTA
(Serial number : R)
Refer to the service
bulletin RAC-0059
3 Pipe Panel Sub Assy
1 Side Panel R Sub Assy
2 Side Panel L Sub Assy
5 Outlet Frame Assy
Parts numberDescriptionRef
Panel (Window) Sub Assy
3
11
10
12
7
2
8
9
4
1
add2012.02.28
11 Cabinet Panel (2 Fan)
10 Main Panel (2 Fan)
12 Drain Pan Sub Assy
9379906012
9379900003
9379907019
9380042006
9379915007
9380597001
8 Fan Guard (2 Fan) 9380589006
9380602002
93799010484
Parts numberDescriptionRef
13 Evaporater Total Assy (14) 9380682059
13
Evaporater Total Assy (07) 9380682080
13 Evaporater Total Assy (09, 12) 9380682042
9 Air Filter 9379574006
7 Valve Cover Sub Assy 9379576017
6 Front Panel (2 Fan) 9380594000
5
6
13
