94

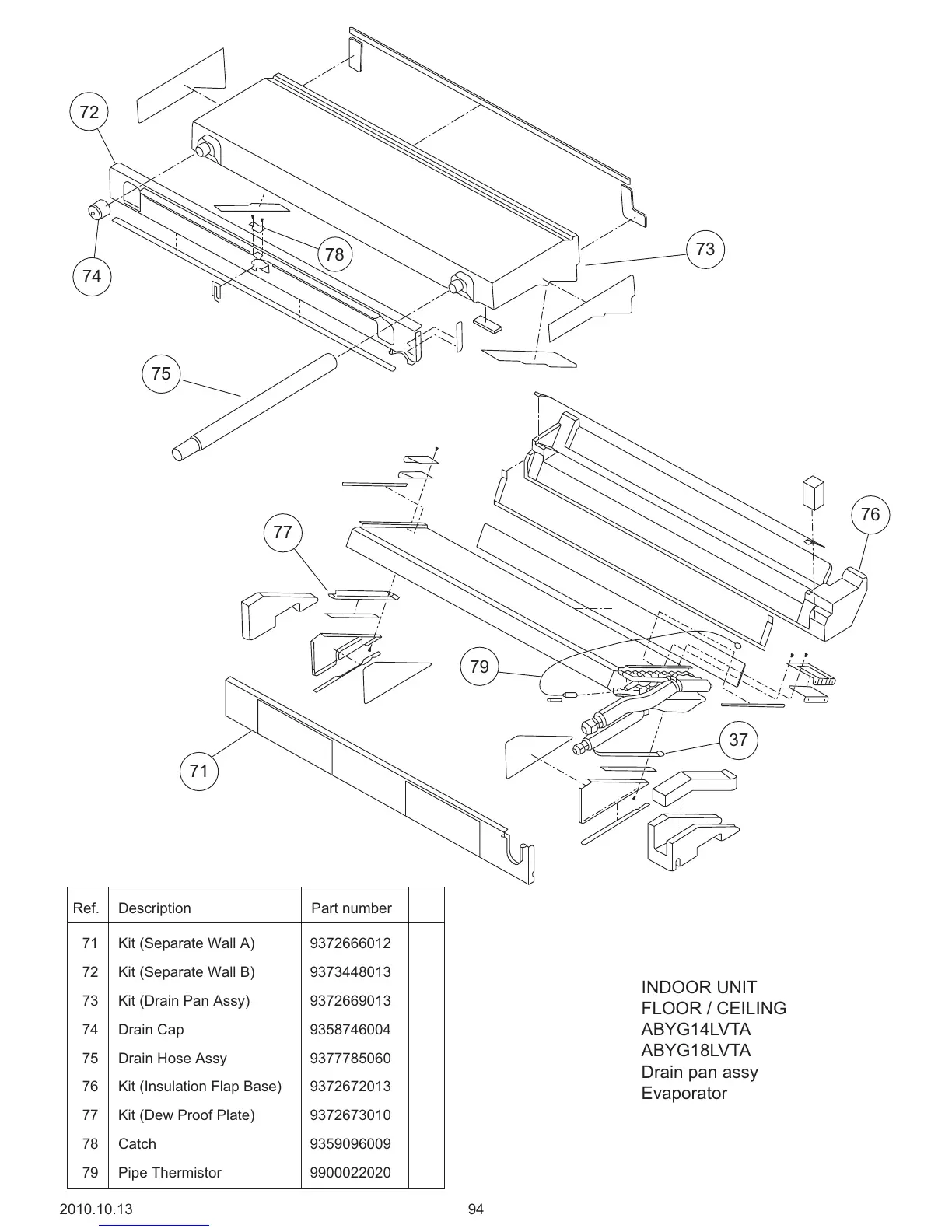

INDOOR UNIT
FLOOR / CEILING
ABYG14LVTA
ABYG18LVTA
Drain pan assy
Evaporator
72
71
73
76
37
77
79
75
74
78
77 Kit (Dew Proof Plate) 9372673010
75 Drain Hose Assy 9377785060
71 Kit (Separate Wall A) 9372666012
73 Kit (Drain Pan Assy) 9372669013
79 Pipe Thermistor 9900022020
76 Kit (Insulation Flap Base) 9372672013
72 Kit (Separate Wall B) 9373448013
78 Catch 9359096009
74 Drain Cap 9358746004
Ref. Description
Part number
2010.10.13
