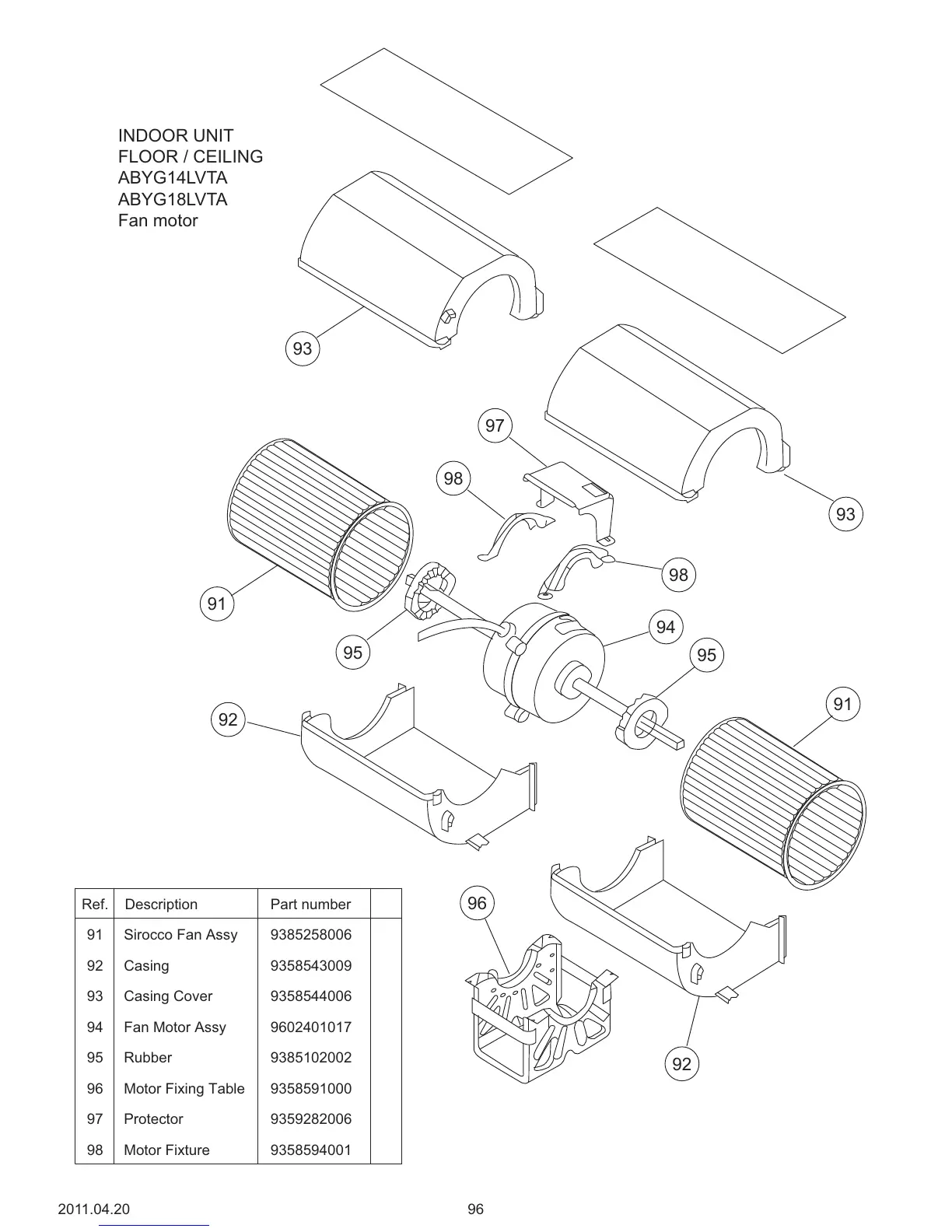

INDOOR UNIT
FLOOR / CEILING
ABYG14LVTA
ABYG18LVTA
Fan motor
96
91
93
97
98
98
93
91
95
95
92
96
92
94
91 Sirocco Fan Assy 9385258006
95 Rubber 9385102002
92 Casing 9358543009
96 Motor Fixing Table 9358591000
94 Fan Motor Assy 9602401017
98 Motor Fixture 9358594001
97 Protector 9359282006
93 Casing Cover 9358544006
Ref. Description
Part number
2011.04.20
