5V
5V
5V
+
C202
47/
10V
R201
47
<1/4W>
I C201
GP1UM261
2
1
3
VCC
OUT
GND
C201
0.1
<F>
CN203 CN202
SW201
KSHC611BT
SW202
SSSS213000
5V
5V
CN201
3 2
1
9
8
7
6
5
4
3
2
1
6
5
4
3
2
1
1
2
3
4
5
6
D201
SLR-343DC
ORANGE
D202, D203
SLR-343MC
GREEN
x 2
06 JB20 / JB20
1061 L60
09 PAP / JB20
1061 L550

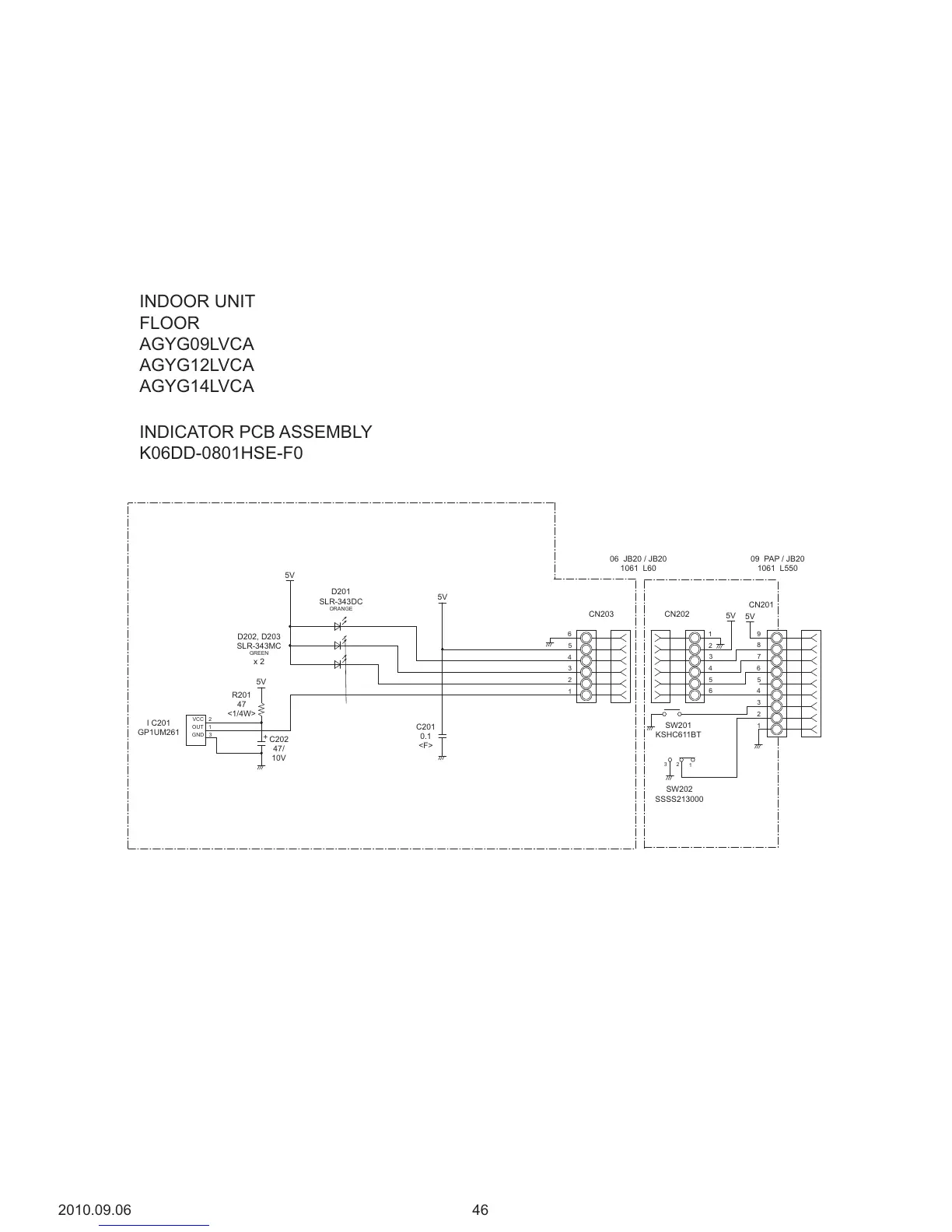

INDICATOR PCB ASSEMBLY
K06DD-0801HSE-F0
2010.09.06
INDOOR UNIT
FLOOR
AGYG09LVCA
AGYG12LVCA
AGYG14LVCA
46
