632011.03.28

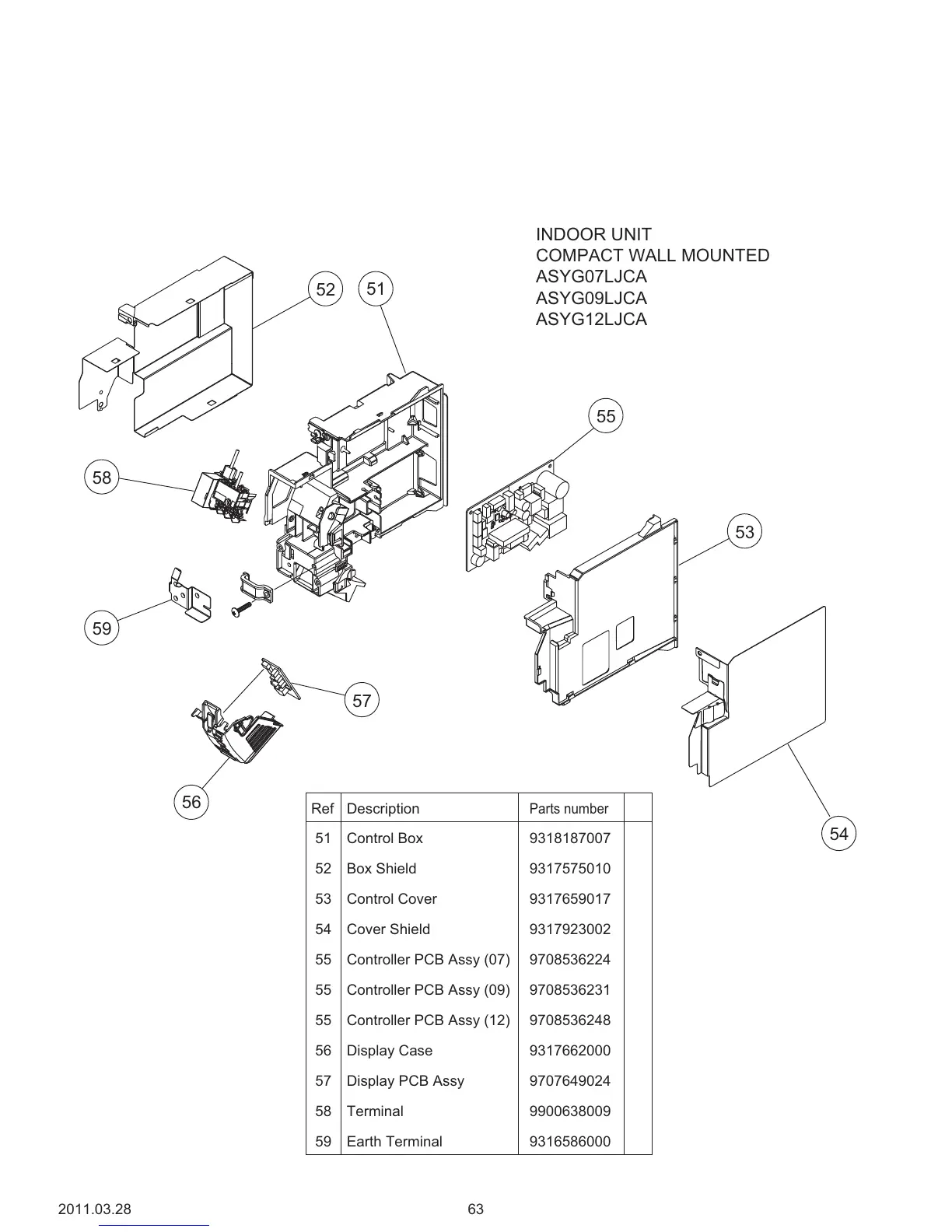

INDOOR UNIT
COMPACT WALL MOUNTED
ASYG07LJCA
ASYG09LJCA
ASYG12LJCA
51
52 Box Shield
Control Box
53
Terminal
Earth Terminal
54
55 Controller PCB Assy (07)
55 Controller PCB Assy (09)
55 Controller PCB Assy (12)
56
Control Cover
Parts number
DescriptionRef
9318187007
9317575010
9317659017
9317923002
9708536224
9317662000
57
Cover Shield
58
59
Display Case
Display PCB Assy 9707649024
9900638009
9316586000
9708536231
9708536248
51
53
54
55
56
57
58
59
52
