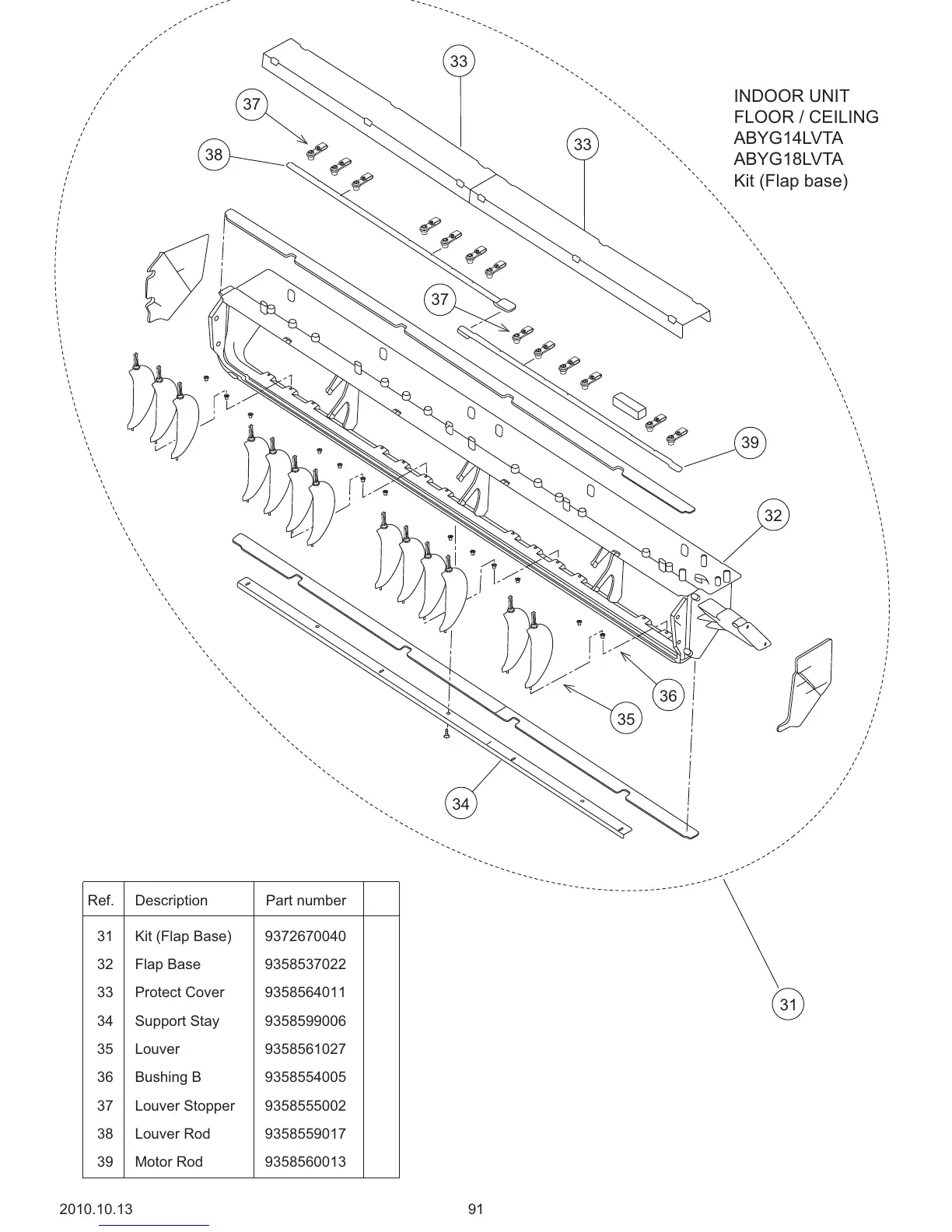

Fujitsu aoyg30lat4 - Parts Diagram - Indoor Unit, Floor;Ceiling, Kit (Flap Base) (ABYG14 LVTA, ABYG18 LVTA)

INDOOR UNIT
FLOOR / CEILING
ABYG14LVTA
ABYG18LVTA
Kit (Flap base)
91
34
39
37
37
33
33
31
38
32
35
36
35 Louver 9358561027
36 Bushing B 9358554005
39 Motor Rod 9358560013
33 Protect Cover 9358564011
34 Support Stay 9358599006
37 Louver Stopper 9358555002
38 Louver Rod 9358559017
32 Flap Base 9358537022
31 Kit (Flap Base) 9372670040
