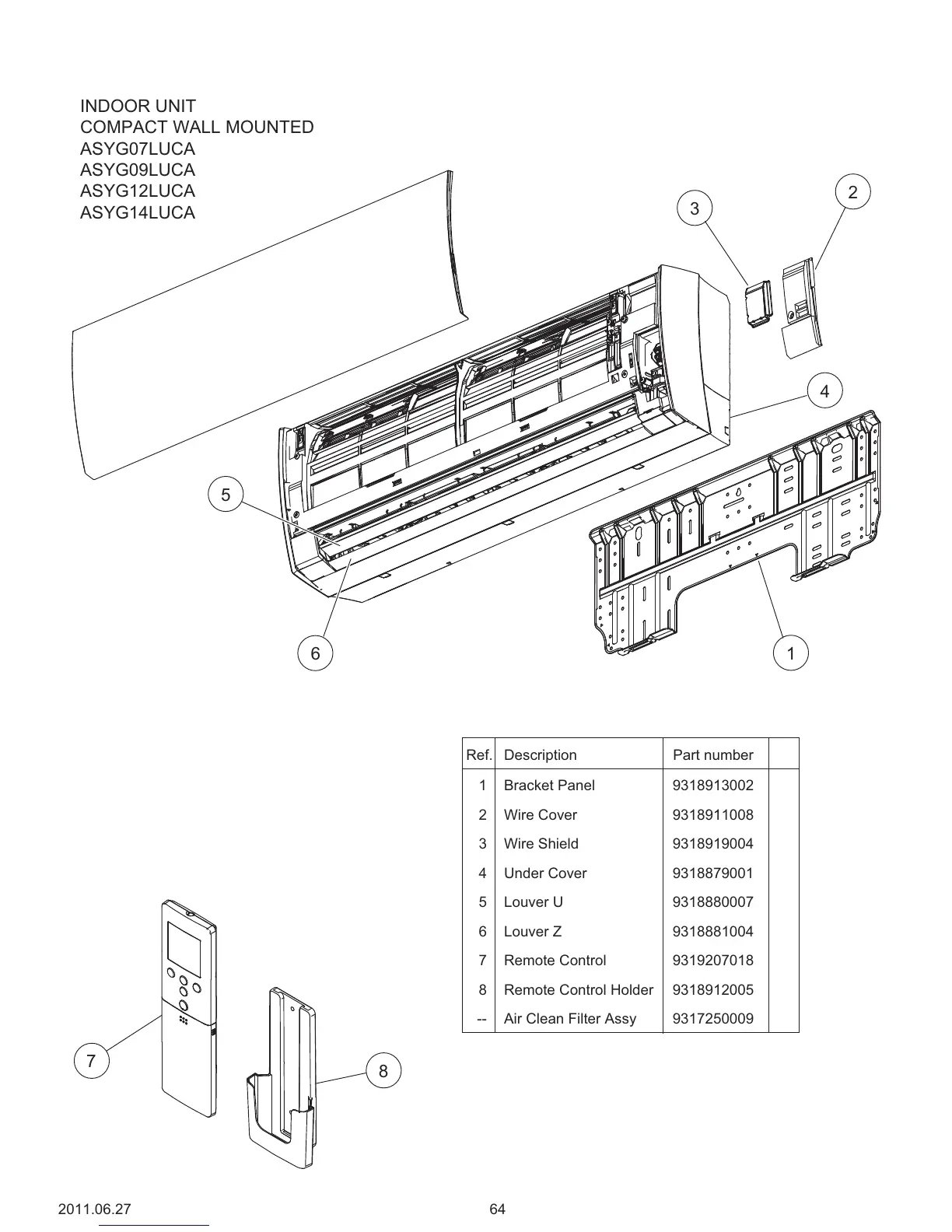

INDOOR UNIT
COMPACT WALL MOUNTED
ASYG07LUCA
ASYG09LUCA
ASYG12LUCA
ASYG14LUCA
2011.06.27 64
5
2
6
4
3
Under Cover 9318879001
1 Bracket Panel 9318913002
7
Wire Cover 9318911008
8
Wire Shield 9318919004
-- Air Clean Filter Assy 9317250009
Remote Control 9319207018
Remote Control Holder 9318912005
Ref. Description Part number
Louver U 9318880007
Louver Z 9318881004
