Fujitsu aoyg30lat4 - Parts Diagram - Indoor Unit, Floor;Ceiling, Evaporator (ABYG14 LVTA, ABYG18 LVTA)

111 pages

To Next Page

To Previous Page

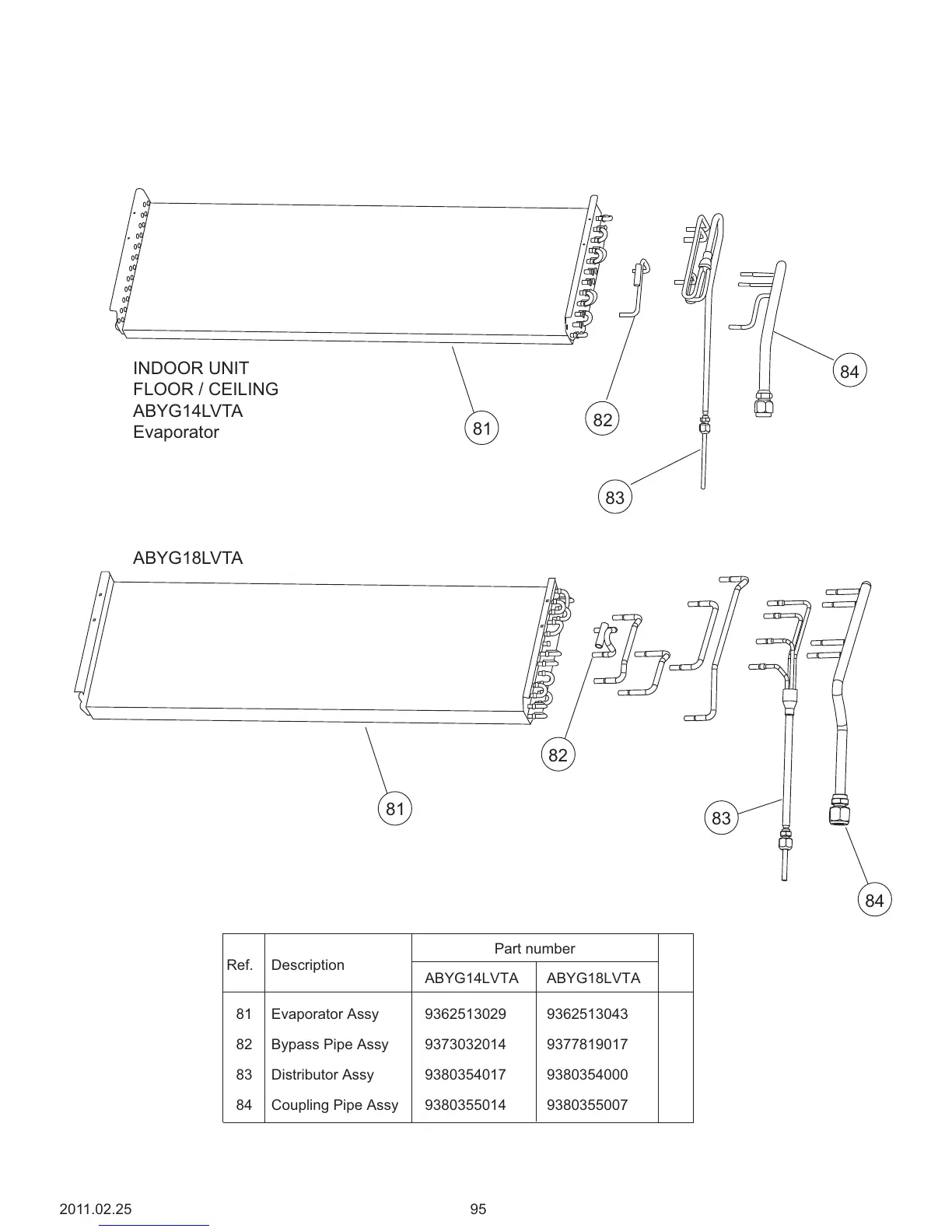

ABYG18LVTA

81 Evaporator Assy 9362513043

82 Bypass Pipe Assy 9377819017

Distributor Assy 9380354000

Coupling Pipe Assy 9380355007

Ref. Description

Part number

ABYG18LVTA

9362513029

9373032014

9380354017

9380355014

ABYG14LVTA

INDOOR UNIT

FLOOR / CEILING

ABYG14LVTA

Evaporator

2011.02.25
