Fujitsu aoyg30lat4 - Dimensions - Indoor Unit, Compact Wall Mounted (ASYG07 LUCA, ASYG09 LUCA, ASYG12 LUCA, ASYG14 LUCA)

111 pages

To Next Page

To Previous Page

unit : mm

282

185

870

2011.06.24 11

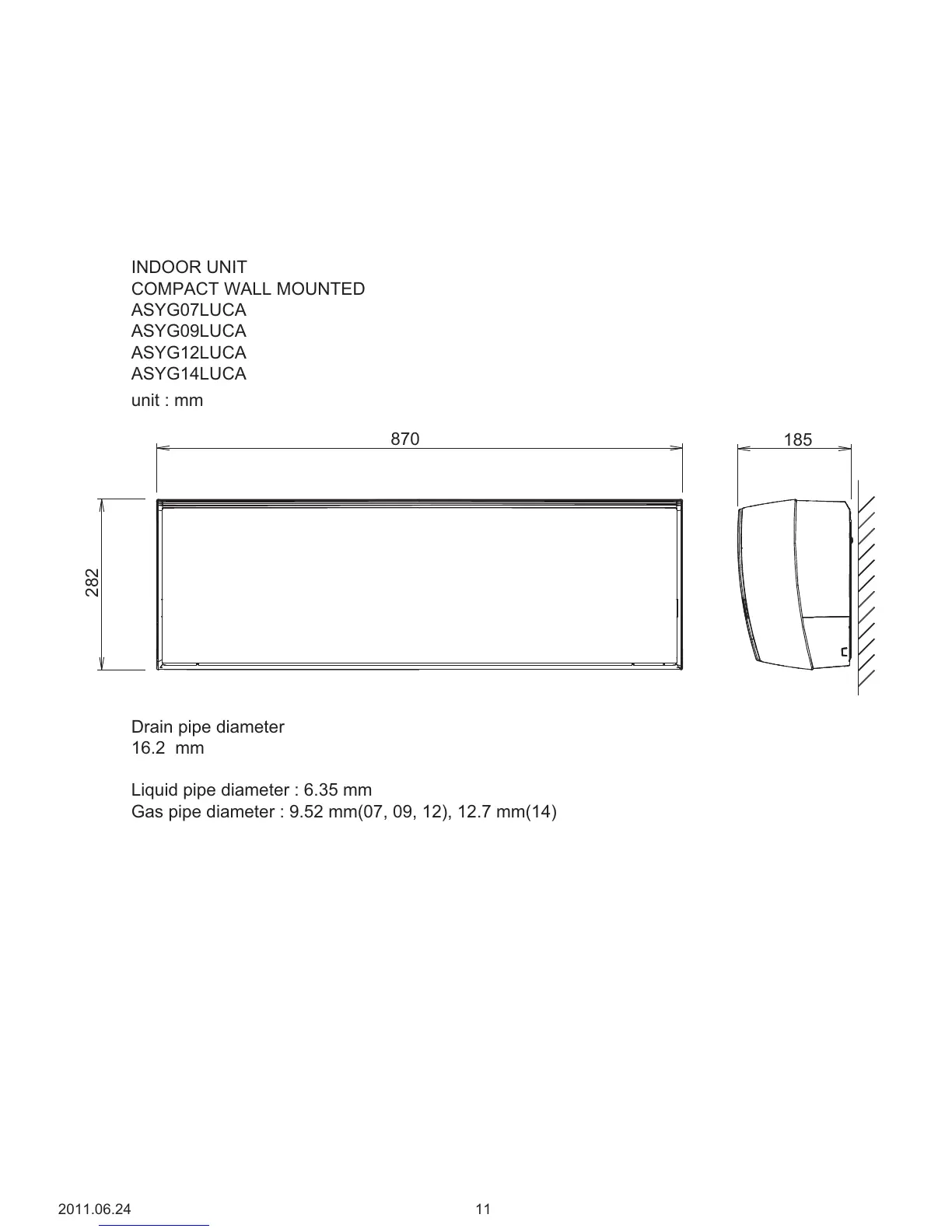

INDOOR UNIT

COMPACT WALL MOUNTED

ASYG07LUCA

ASYG09LUCA

ASYG12LUCA

ASYG14LUCA

Drain pipe diameter

16.2 mm

Liquid pipe diameter : 6.35 mm

Gas pipe diameter : 9.52 mm(07, 09, 12), 12.7 mm(14)
