5V
R201 220 <1/4W>
R202 390 <1/4W>
R203 220 <1/4W>
D203 SLR-325MC GREEN
D201 SLR-325MC GREEN
D202 SLR-325DC ORANGE
PHA201
P I C-37143TH5
SW201
EVQPAG04K
C202
10/
25V
+
C201
0.1
<F>
2
4 3
1
2
1
3
VCC
OUT
GND
CN201
S07B-PASK-2 ( LF ) ( SN )
OPERATE
TIMER
MANUAL AUTO SWITCH
FILTER CLEN / FILTER SIGN
5V
REMOTE CONTROL
GND
1
2
3
4
5
6
7

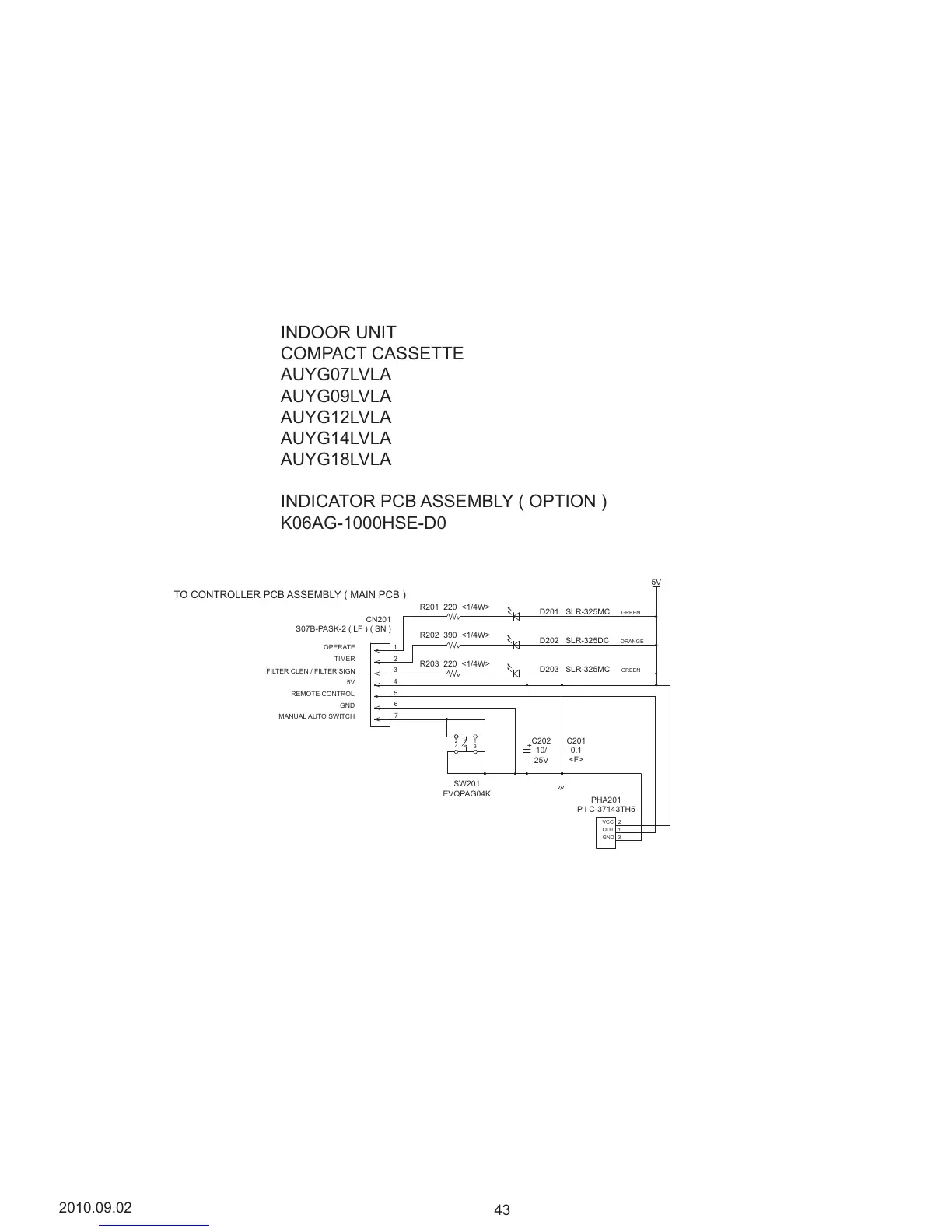

TO CONTROLLER PCB ASSEMBLY ( MAIN PCB )
INDICATOR PCB ASSEMBLY ( OPTION )
K06AG-1000HSE-D0
INDOOR UNIT
COMPACT CASSETTE
AUYG07LVLA
AUYG09LVLA
AUYG12LVLA
AUYG14LVLA
AUYG18LVLA
2010.09.02
43
