56

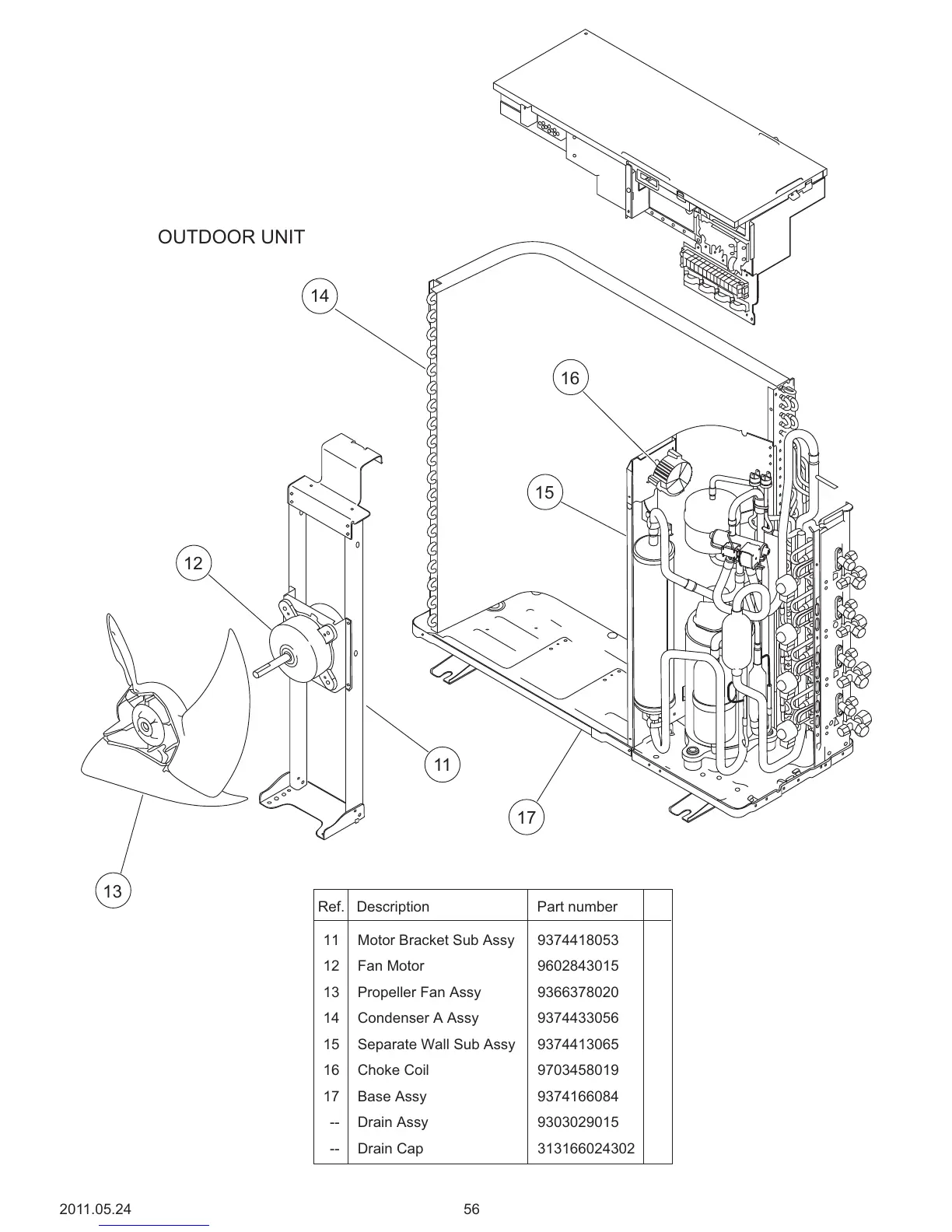

11 Motor Bracket Sub Assy
13 Propeller Fan Assy
12 Fan Motor
14 Condenser A Assy
15 Separate Wall Sub Assy
17 Base Assy
9374418053
9366378020
9602843015
9374433056
9374413065
9374166084
16 Choke Coil 9703458019
-- Drain Assy
-- Drain Cap
9303029015
313166024302
Ref. Description Part number
OUTDOOR UNIT
17
11
13
12
14
15
16
2011.05.24
