61
72
65
73
63
66
70
62
69
67
71
64
68
59
70 Terminal
71 ACTPM
9900433017
9703457012
72 Power Supply PCB Assy 9705647039
73 Controller PCB Assy
74 Heat Sink Thermistor
75 Discharge Thermistor
76 Thermistor (Outdoor)
77
Heat Exchanger Thermistor
78 Discharge Pipe Thermistor
9708013374
9900311018
9900620004
9900477035
9900540005
9900621001

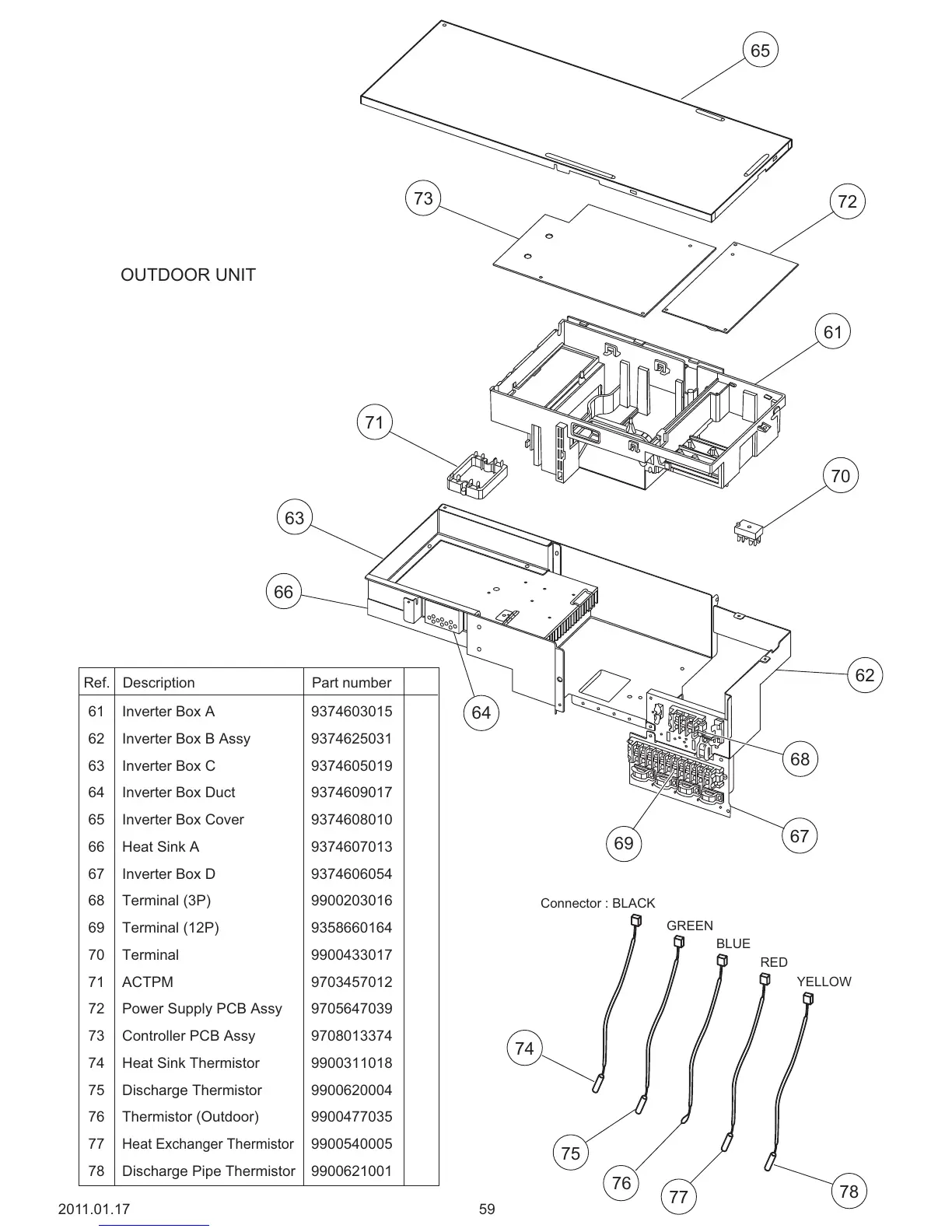

Ref. Description Part number
61 Inverter Box A
62 Inverter Box B Assy
63 Inverter Box C
64 Inverter Box Duct
65 Inverter Box Cover
9374603015
9374625031
9374605019
9374609017
9374608010
66 Heat Sink A
67 Inverter Box D
68 Terminal (3P)
69 Terminal (12P)
9374607013
9374606054
9900203016
9358660164
OUTDOOR UNIT
Connector : BLACK
GREEN
BLUE
RED
YELLOW
74
75
76
77
78
2011.01.17
