43
49
48
44
42
41
46
47
45

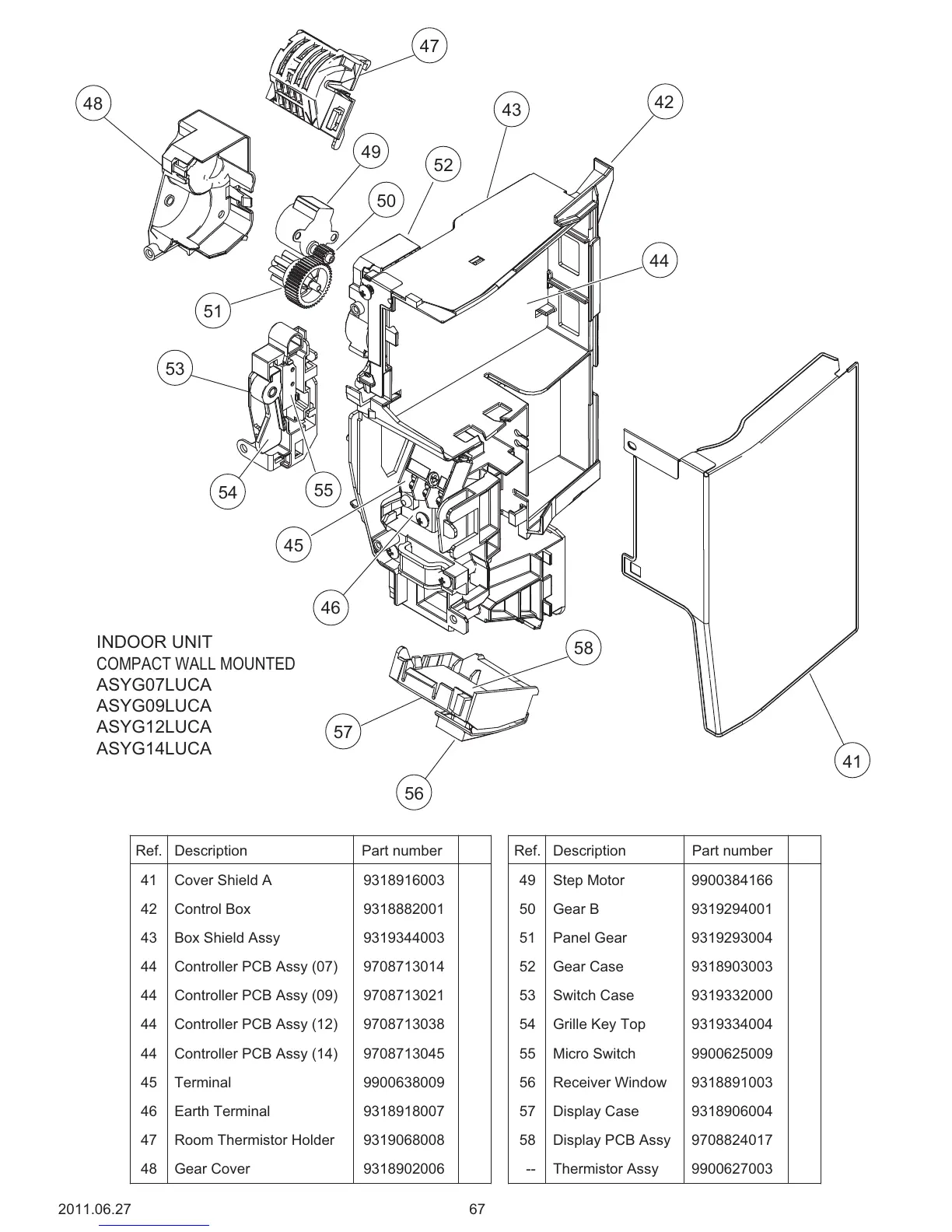

INDOOR UNIT
COMPACT WALL MOUNTED
ASYG07LUCA
ASYG09LUCA
ASYG12LUCA
ASYG14LUCA
67
46
Terminal 9900638009
44
Controller PCB Assy (07) 9708713014
45
Controller PCB Assy (09) 9708713021
Earth Terminal 9318918007
41
Control Box
9318916003
42
Cover Shield A
9318882001
43 Box Shield Assy 9319344003
44
44
Controller PCB Assy (12) 9708713038
Controller PCB Assy (14) 9708713045
44
49 Step Motor 9900384166
47 Room Thermistor Holder 9319068008
48 Gear Cover 9318902006
Ref. Description Part number
56
Display PCB Assy 9708824017
Display Case 931890600457
-- Thermistor Assy 9900627003
58
Receiver Window 9318891003
54 Grille Key Top 9319334004
55 Micro Switch 9900625009
51 Panel Gear 9319293004
Switch Case 9319332000
52
53
Gear Case 9318903003
50 Gear B 9319294001
Ref. Description Part number
2011.06.27
52
53
50
51
54
57
55
56
58
