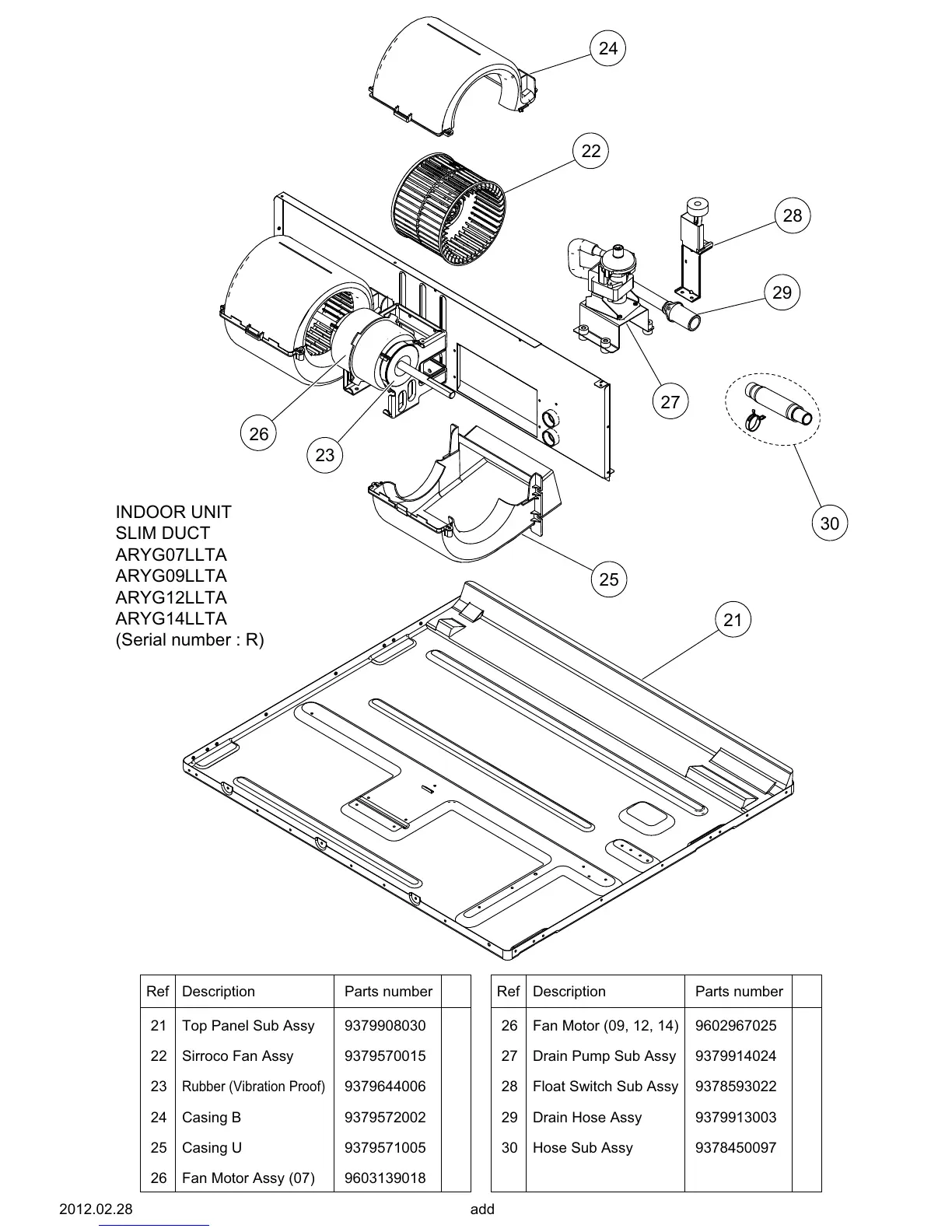

27 Drain Pump Sub Assy
28
29
Float Switch Sub Assy
26 Fan Motor (09, 12, 14) 9602967025
26 Fan Motor Assy (07) 9603139018
9379914024
9378593022
Drain Hose Assy 9379913003
30 Hose Sub Assy 9378450097
Parts numberDescriptionRef
Top Panel Sub Assy21
Sirroco Fan Assy22
23
Rubber (Vibration Proof)
Casing B24
9379908030
9379570015
9379644006
9379572002
25 Casing U 9379571005
Parts numberDescriptionRef
add2012.02.28
INDOOR UNIT
SLIM DUCT
ARYG07LLTA
ARYG09LLTA
ARYG12LLTA
ARYG14LLTA
(Serial number : R)
21
27
30
29
22
25
24
26
28
23
