Fujitsu ARHG24LMLA - Fan Performance; Fan Performance Curve

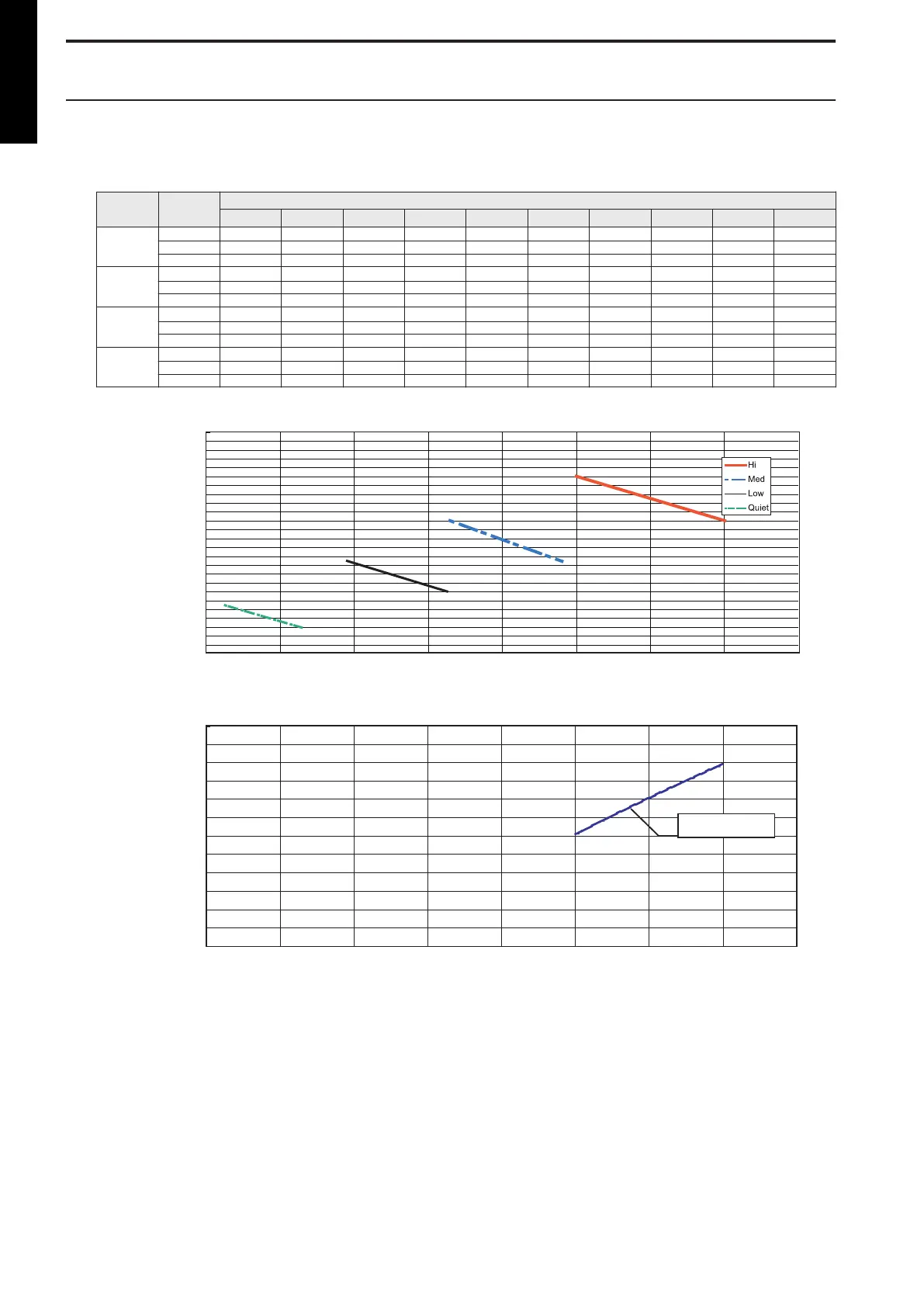

5. Fan performance
5-1. Fan performance curve
¢
Model: ARHG24LMLA (Normal mode)
Fan speed Item
Static pressure (Pa)
6 8 11 14 18 21 25 30 35 40
HIGH
m
3
/h
— — — — — — — 1200 1100 1000
l/s — — — — — — — 333 306 278
CFM — — — — — — — 706 647 589
MED
m
3
/h
— — — — — 980 910 830 — —
l/s — — — — — 272 253 231 — —
CFM — — — — — 577 536 489 — —
LOW
m
3
/h
— — — 825 750 690 — — — —
l/s — — — 229 208 192 — — — —
CFM — — — 486 441 406 — — — —
QUIET
m
3
/h
630 580 525 — — — — — — —
l/s 175 161 146 — — — — — — —
CFM 371 341 309 — — — — — — —
Q-h Characteristic curve
STATIC PRESSURE(Pa)
50
40
30
20
10
0
500 600 700 800 900 1,000 1,100 1,200 1,300
Airflow (m
3
/h)
COOLING
Cooling capacity(%)
104.0
102.0
100.0
98.0
96.0
94.0
92.0
500 600 700 800 900 1,000 1,100 1,200 1,300
Airflow (m
3
/h)
Capacity
DESIGN & TECHNICAL MANUAL
- 8 -
DUCT TYPE ARHG24LMLA
