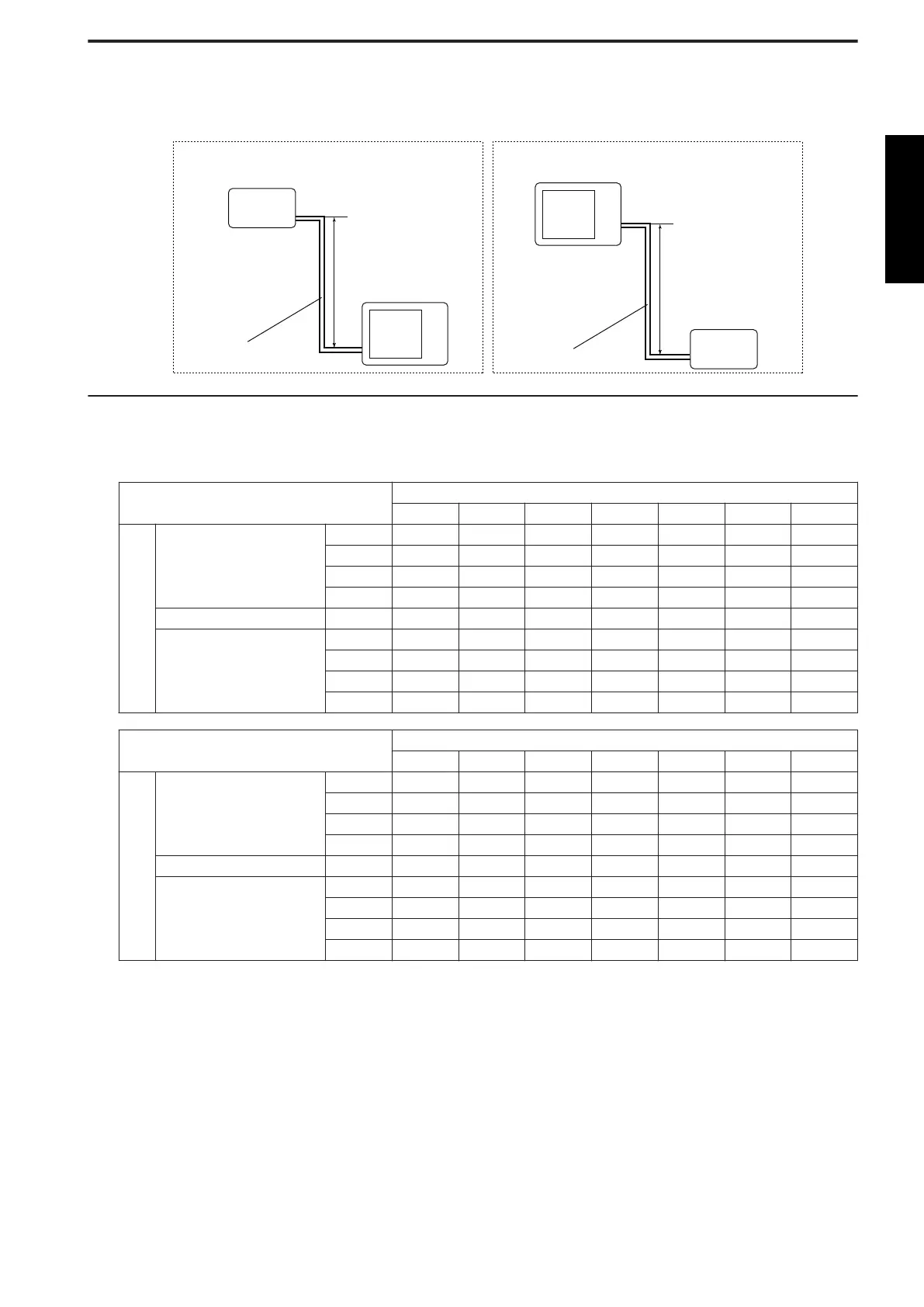

6. Capacity compensation rate for pipe length and height
difference
Height difference H
Indoor unit is higher than outdoor unit
*
1
Indoor unit is lower than outdoor unit *
2
Indoor unit
Indoor unit
Connection pipe
Outdoor unit
Outdoor unit
Connection pipe
HH
6-1. Model: AOHG24LBCB
NOTE: Values mentioned in the table are calculated based on the maximum capacity.
COOLING
Pipe length (m)
5 7.5 10 15 20 25 30
Height difference H (m)
Indoor unit is higher
than outdoor unit *1
20 — — — — 0.963 0.961 0.959
10 — — 0.984 0.981 0.979 0.977 0.975
7.5 — 0.988 0.988 0.985 0.983 0.981 0.979
5 0.992 0.992 0.992 0.989 0.987 0.985 0.983
0 1.000 1.000 1.000 0.997 0.995 0.993 0.991
Indoor unit is lower
than outdoor unit *2
-5 1.000 1.000 1.000 0.997 0.995 0.993 0.991
-7.5 — 1.000 1.000 0.997 0.995 0.993 0.991
-10 — — 1.000 0.997 0.995 0.993 0.991
-20 — — — — 0.995 0.993 0.991
HEATING
Pipe length (m)
5 7.5 10 15 20 25 30
Height difference H (m)
Indoor unit is higher
than outdoor unit *1
20 — — — — 0.927 0.893 0.863
10 — — 0.992 0.952 0.927 0.893 0.863
7.5 — — 0.992 0.952 0.927 0.893 0.863
5 1.000 — 0.992 0.952 0.927 0.893 0.863
0 1.000 1.000 0.992 0.952 0.927 0.893 0.863
Indoor unit is lower
than outdoor unit *2
-5 0.995 0.995 0.987 0.947 0.922 0.888 0.859
-7.5 — 0.993 0.984 0.945 0.920 0.886 0.857
-10 — — 0.982 0.943 0.917 0.884 0.855
-20 — — — — 0.908 0.875 0.846
- 45 -
OUTDOOR UNIT AOHG24LBCB
