2. Dimensions

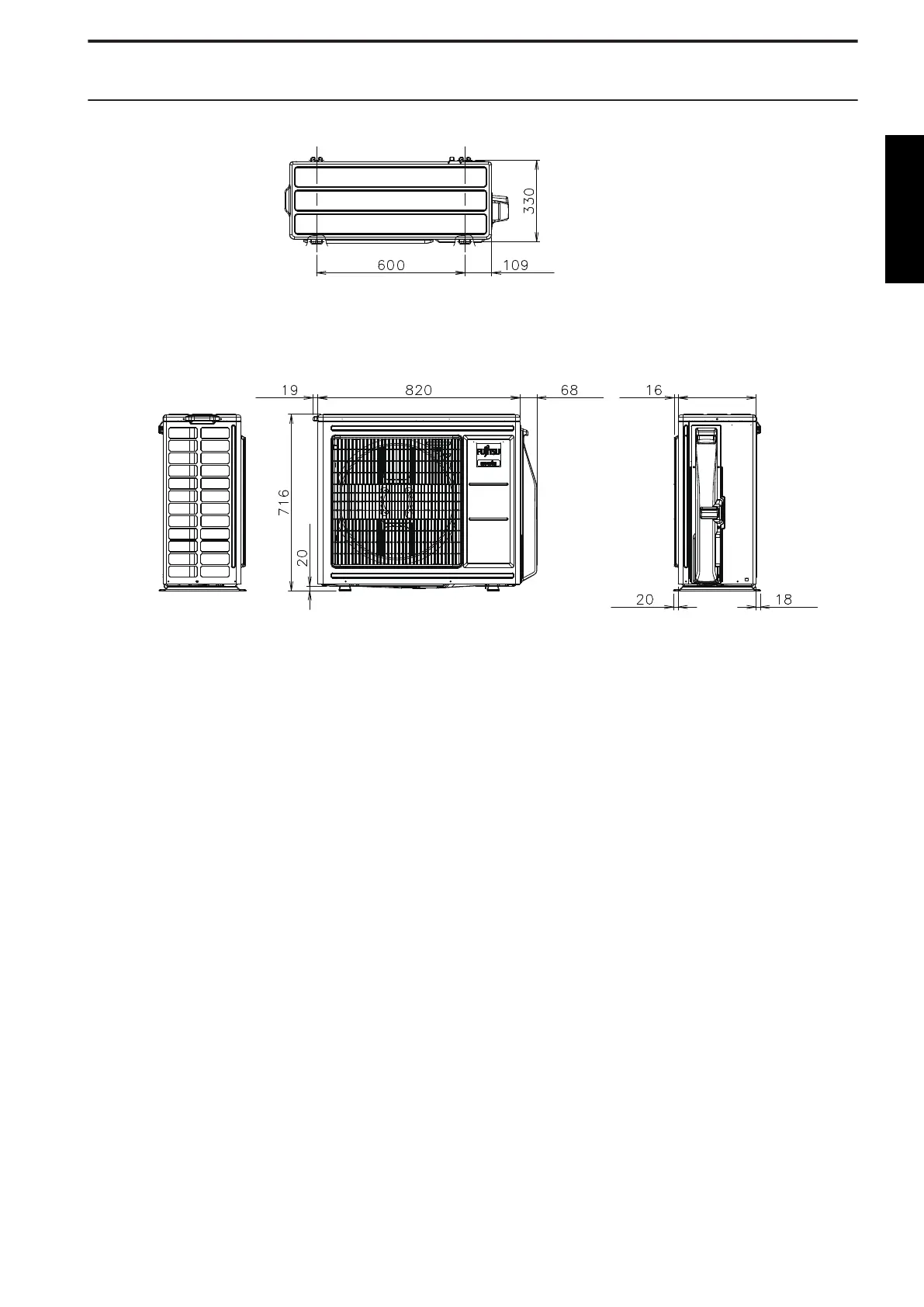

2-1. Model: AOHG24LBCB
Side view
Side view
Front view
Pitch of bolts for installation
Top view
Pitch of bolts
for installation
Unit: mm
315
- 39 -
OUTDOOR UNIT
AOHG24LBCB
