External output
With using external output function, some status signals are transmitted to the control PCB, and the
related LED lamp indicates the status of this product.

Error status output
Signal on air conditioner error status is generated when a malfunction occurs.

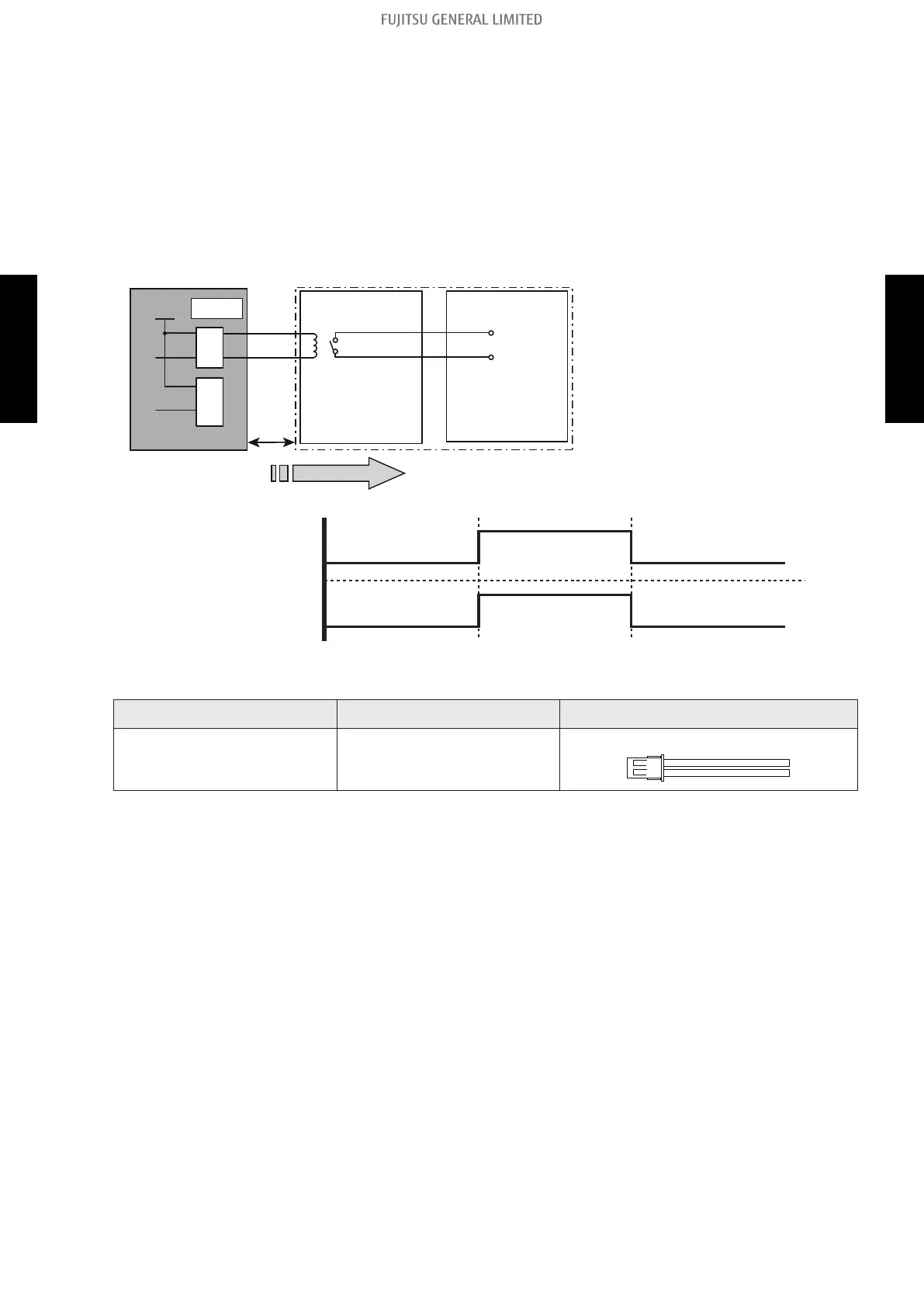

• Circuit diagram example
Outdoor unit
control PCB
Example:
Relay unit
Connected unit (Locally purchased)
Example: Fan
Signal
Connector
1
2
1
2
10m*
12 V
On/
Off
P590
On/
Off
PA590
• Output voltage (Vcc): DC 12 V
50 mA or less
• *: Make the distance from the
PCB to the connected unit with-
in 10 m.
Error
Normal
On
Off
Error status
Output signal
• Optional part
Part name Model name Exterior
External connect kit UTY-XWZXZ3
External output wire
