UTY-LNHUM/AR-RAH1U

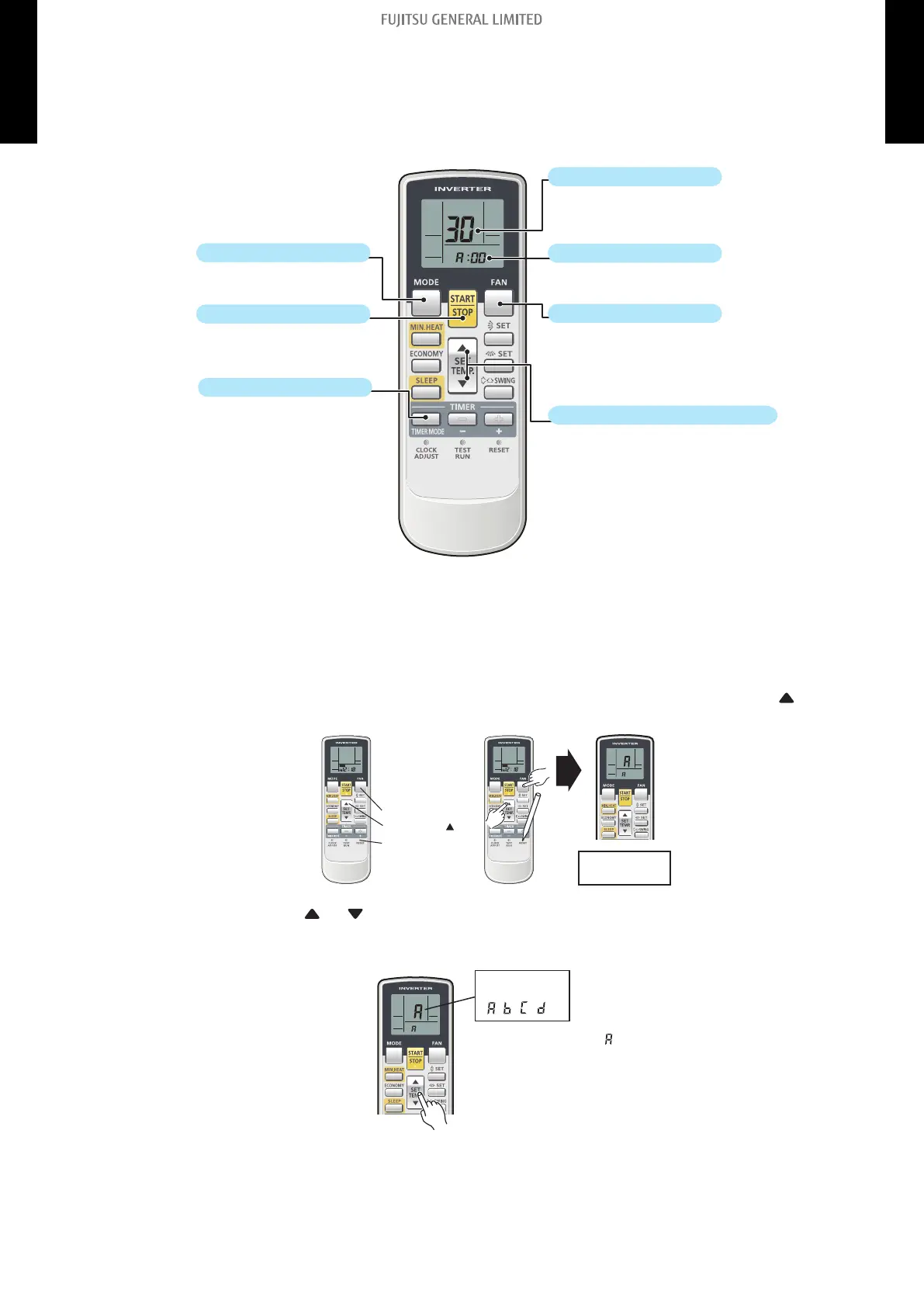

Button name and function
During address setting mode, indoor unit reject the any operation command from remote con-
troller.
MODE button
START/STOP button
TIMER MODE button
SET TEMP. "
" and "
" button
FAN button
Setting number
Function number
Refer to Function details.
Refer to Function details.
Switches between the setting number (bottom line)
and function number (top line)
Increases and decreases the displayed number
- Starts the function setting mode
- Changes the display digits
Transmits function setting
Transmits function mode
NOTE:
Actual number of buttons might be different from the figures in following instructions.
Function setting procedure
1. Connect the power supply of the outdoor unit.
2. To enter the function setting mode, while holding down the FAN and the SET TEMP.
but-
tons, press the RESET button.
SET TEMP. ( )
RESET
FAN
Function setting
mode display
3.
Press the SET TEMP. or buttons to select the custom code that matches the setting with
the indoor unit. By selecting the appropriate custom code, the communication between the in-
door unit and the wireless remote controller become possible.
Custom code
(
--
-
)
The initial setting is " "
