Fujitsu ASU7RLF - INDOOR UNIT SLIM DUCT DIMENSIONS

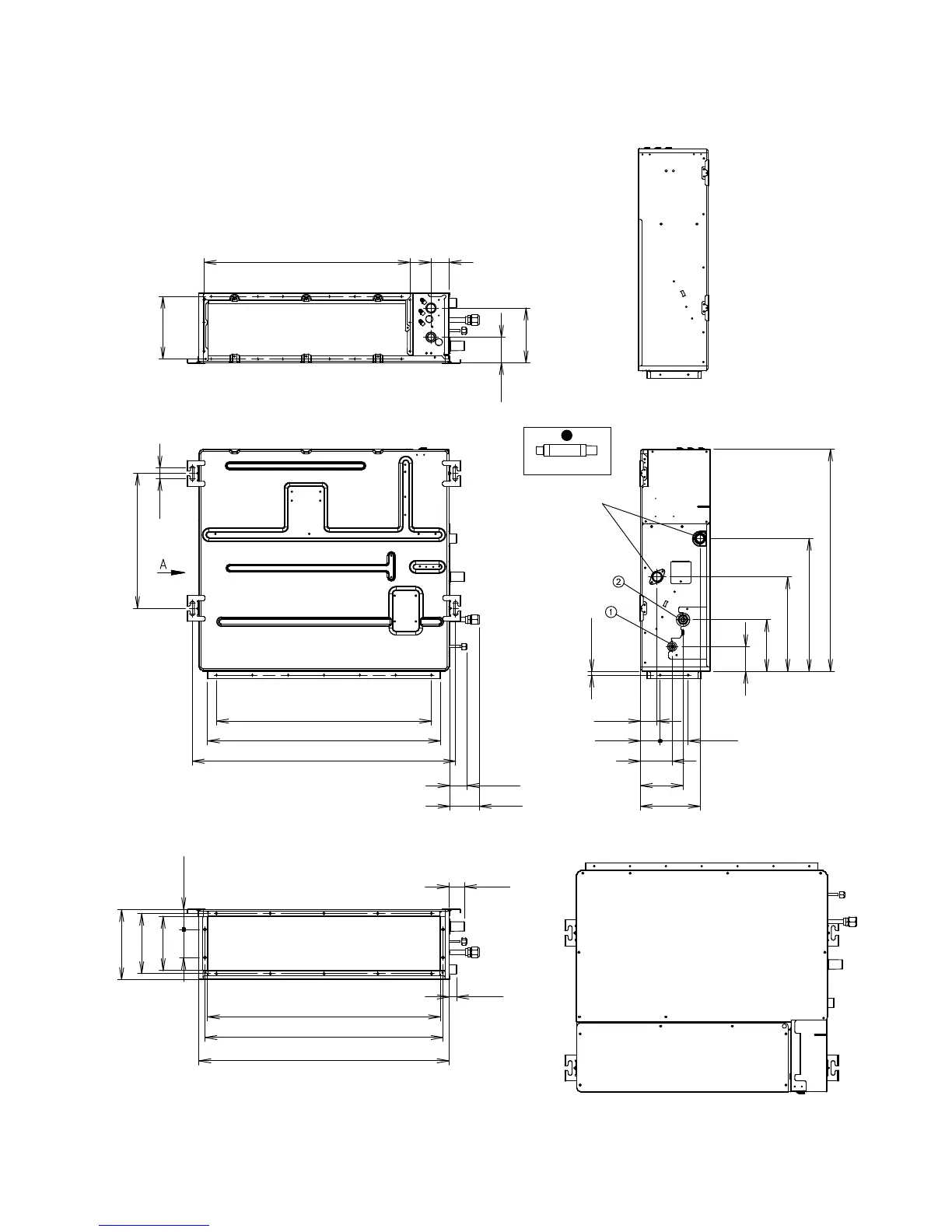

INDOOR UNIT
SLIM DUCT
ARU9RLF
ARU12RLF
Rear view
View A
Top view
Side view
Front view
Bottom view
(Drain hose)
Drain port
2 (51)
22-19/32 (574)
6-27/32 (174)
2-25/32 (71)
6 (152)
3-15/16 (100) x 6 = 23-5/8 (600)
3-7/32 (82)
1-7/8 (48)
25-19/32 (650)
28-29/32 (734)
1-3/16 (30)
14-27/32 (377)
6-9/16 (167)
4-11/16 (119)
3-1/2 (89)
3-1/16 (78)
2-5/32 (55)
1-27/32 (47)
13/32 (10)
24-13/32 (620)
14-19/32 (371)
10-13/32 (264)
5-21/32 (144)
2-23/32 (69)
25-19/32 (650)
26-5/32 (664)
27-9/16 (700)
1-11/16 (43)
25/32 (20)
7-25/32 (198)
6-5/8 (168)
5-15/16 (151)
3-1/16 (78) 2-5/32 (55)
Drain hose I.D. 3/4 in. , O.D. 1-1/16 in.
Unit : inch (mm)
2010.06.17 11
