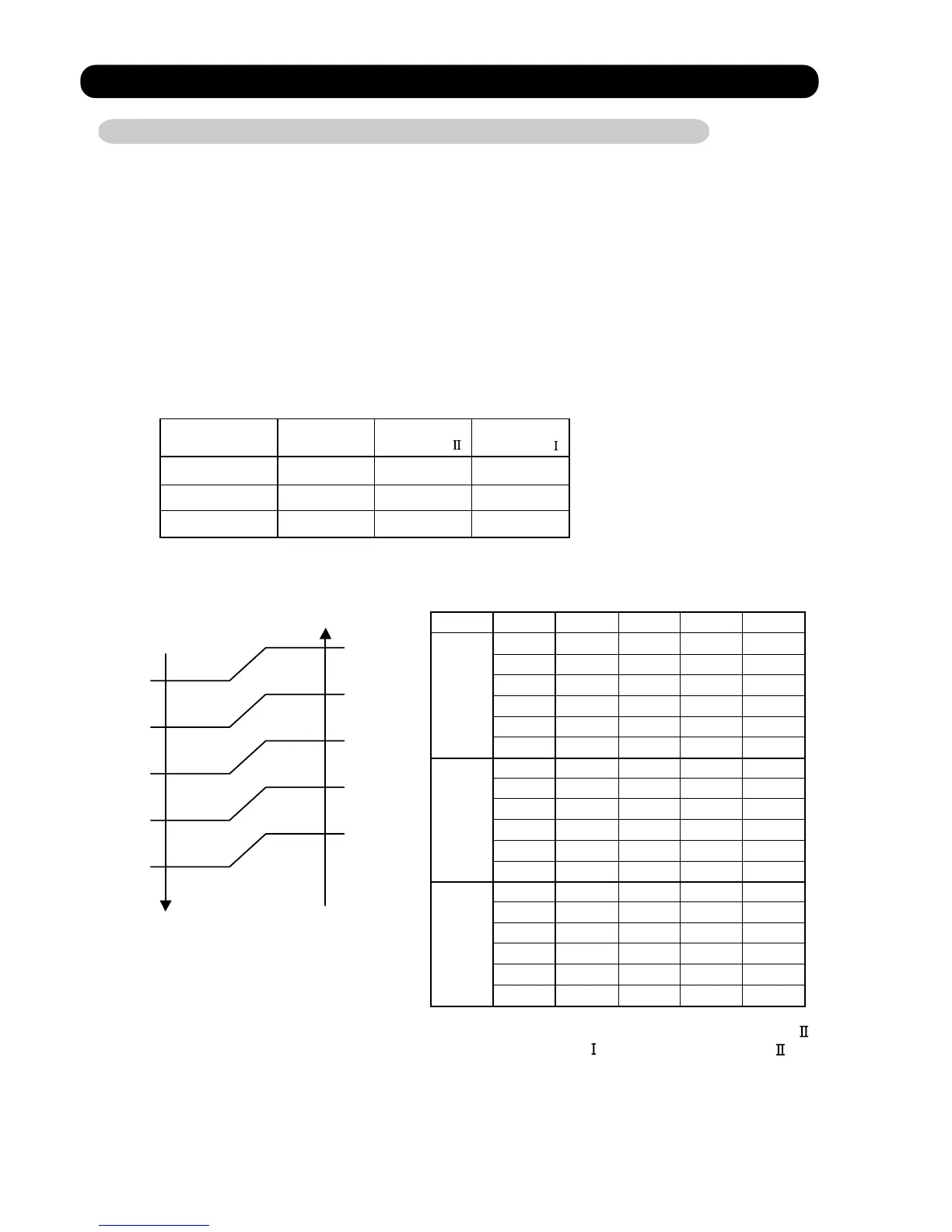

( Fig. 1 : Limit of Maximum Frequency based on Outdoor Temperature )
1. COOLING OPERATION
1-1 COOLING CAPACITY CONTROL
A sensor (room temperature thermistor) built in the indoor unit body will usually perceive
difference or variation between a set temperature and present room temperature, and
controls the operation frequency of the compressor.
* If the room temperature is 2°C higher than a set temperature, the compressor operation
frequency will attain to maximum performance.
minimum
frequency
maximum
frequency
maximum
frequency
AS*A07/ 09LGC 22Hz 76Hz 79Hz
AS*A12LGC 18Hz 80Hz 96Hz
AS*A14LGC 18Hz 70Hz 80Hz
Outside air Outside air
temperature temperature
36°C
A zone
34°C
32°C
B zone
30°C
21°C
C zone
19°C
D zone
Hi Me Lo Quiet
A zone 79Hz 61Hz 52Hz 37Hz
B zone 79Hz 61Hz 52Hz 37Hz
C zone 79Hz 61Hz 52Hz 38Hz
07LGC
09LGC
D zone 52Hz 43Hz 37Hz 28Hz
E zone 64Hz 55Hz 49Hz 36Hz
F zone 64Hz 55Hz 49Hz 36Hz
A zone 96Hz 61Hz 51Hz 33Hz
B zone 96Hz 61Hz 51Hz 33Hz
C zone 96Hz 61Hz 51Hz 33Hz
12LGC
14LGC
D zone 57Hz 42Hz 36Hz 27Hz
E zone 57Hz 42Hz 36Hz 27Hz
F zone 57Hz 42Hz 36Hz 27Hz
A zone 80Hz 49Hz 38Hz 27Hz
B zone 80Hz 49Hz 38Hz 27Hz
C zone 80Hz 49Hz 38Hz 27Hz
D zone 54Hz 38Hz 30Hz 22Hz
E zone 54Hz 38Hz 30Hz 22Hz
F zone 54Hz 38Hz 30Hz 22Hz
( Table 1 : Compressor Frequency Range )
When the compressor operates for 30 minutes continuously at over the maximum frequency ,
the maximum frequency is changed from Maximum Frequency to Maximum Frequency .
05-01
E zone
F zone
10°C
0°C
12°C
2°C
* When the room temperature is between +2°C to -2.5°C of the setting temperature,
the compressor frequency is controlled within the range shown in Table1.
However, the maximum frequency is limited in the range shown in Figure 1 based on the
fan speed mode and the outdoor temperature.
* If the room temperature is 2.5°C lower than a set temperature, the compressor will be
stopped.
