Fujitsu ASYA09LGC Service Instruction

Model Name : AS*A14LGC
[Condition]
Ambient
temperature
Indoor / Outdoor - Same temperature
Refrigerant
amount
Standard amount
Piping
length
5.0m (Height difference 1m)
Power
voltage
50Hz - 230V
Operation
condition
TEST mode (Cooling), Hi Fan, Horizontal direction, Front air flow
Measuring
method
[Constant Frequency Operation Method (Test mode)]
1. Operate on Colling mode, and press TEST button of remote control.
2. Operate continuously for 30 minutes. (After 60 minutes of operation, Test mode is released automatically.)

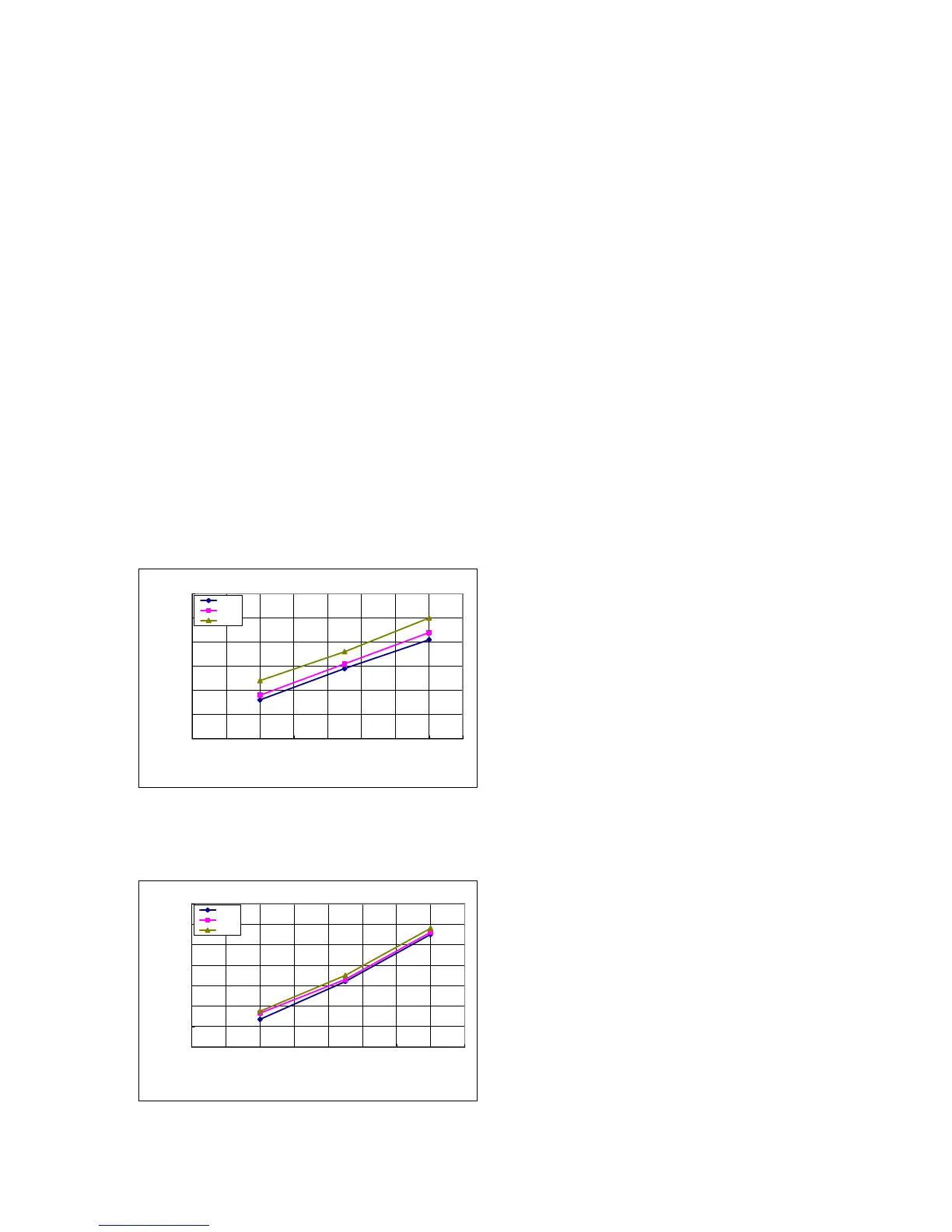

(1) Indoor/Outdoor Temperature - Outdoor Low Pressure Curve
AS*A14LGC
AS*A14LGC
(2) Indoor/Outdoor Temperature - Outdoor Total Electric Current Curve
Measure the low pressure with the pressure meter at the service valve.
Measure the outdoor unit overall current with the current clamp meter at Power Cable.
In/outdoor ambient temparature [degC]
Low-pressure of outdoor unit [MPa]
In/outdoor ambient temparature [degC]
Outdoor total electric current [A]
08-05
[50Hz-230V]
0.6
0.7
0.8
0.9
1
1.1
1.2
16 18 20 22 24 26 28 30 32
RH50%
RH60%
RH70%
[50Hz-230V]
3.4
3.6
3.8
4
4.2
4.4
4.6
4.8
16 18 20 22 24 26 28 30 32
RH50%
RH60%
RH70%
