Fujitsu ASYG09KMCDN Design & Technical Manual

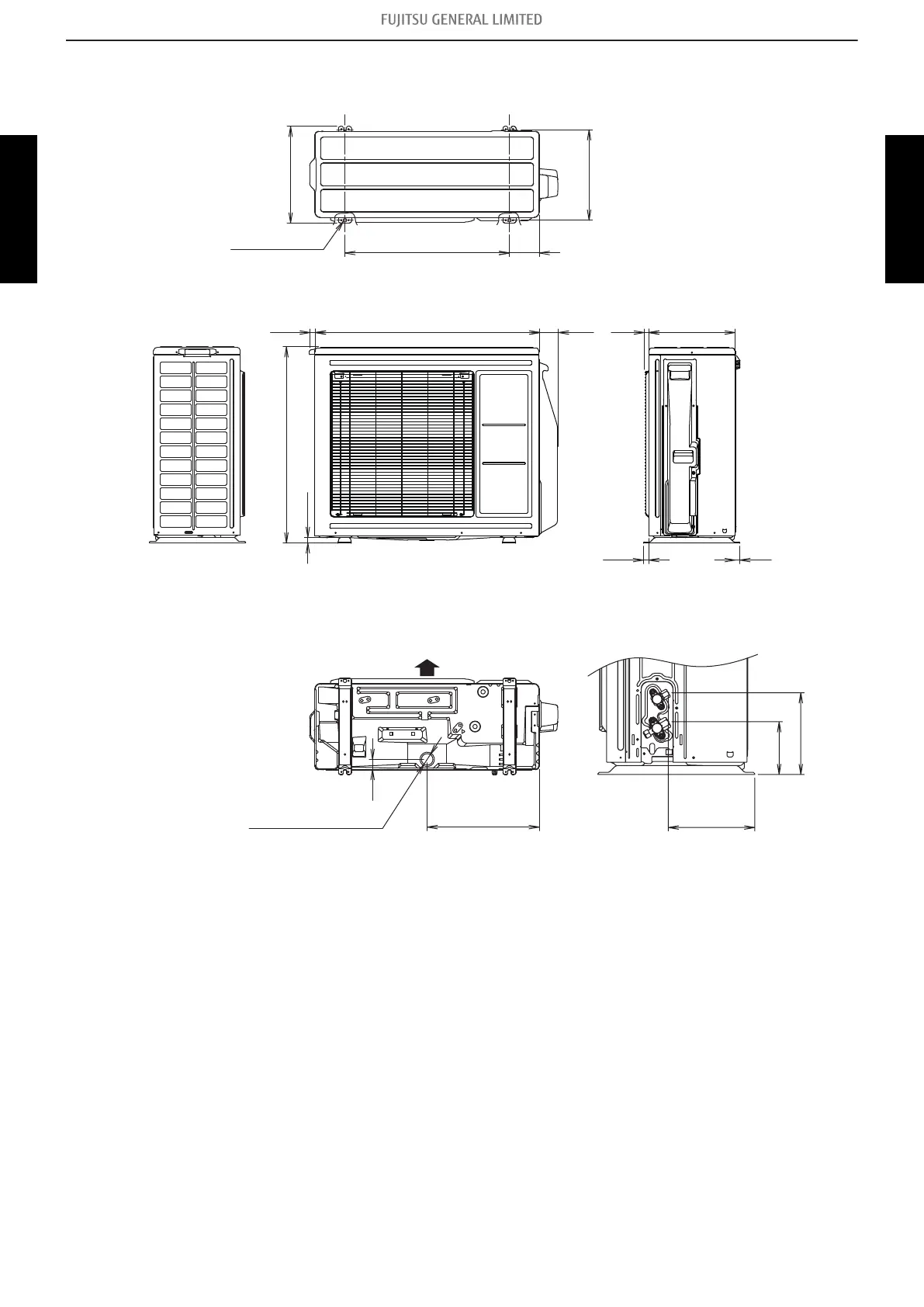

2-3. Model: AOYG14KMCDN
Unit: mm
Side viewSide view Front view
Airflow
600
109
353 330
Pitch of bolts for installation
Pitch of bolts for installation
4-
M1 0 hole
Drain port Ø42
37
410
Bottom view Side view (Valve part)
119
184
194
13 315
20 18
82019 68
716
20
- 45 -
2-3. Model: AOYG14KMCDN 2. Dimensions
OUTDOOR UNIT AOYG09-14KMCDN OUTDOOR UNIT AOYG09-14KMCDN
