5. Wiring diagrams
5-1. Models: AOYG09KMCDN and AOYG12KMCDN
- 51 -

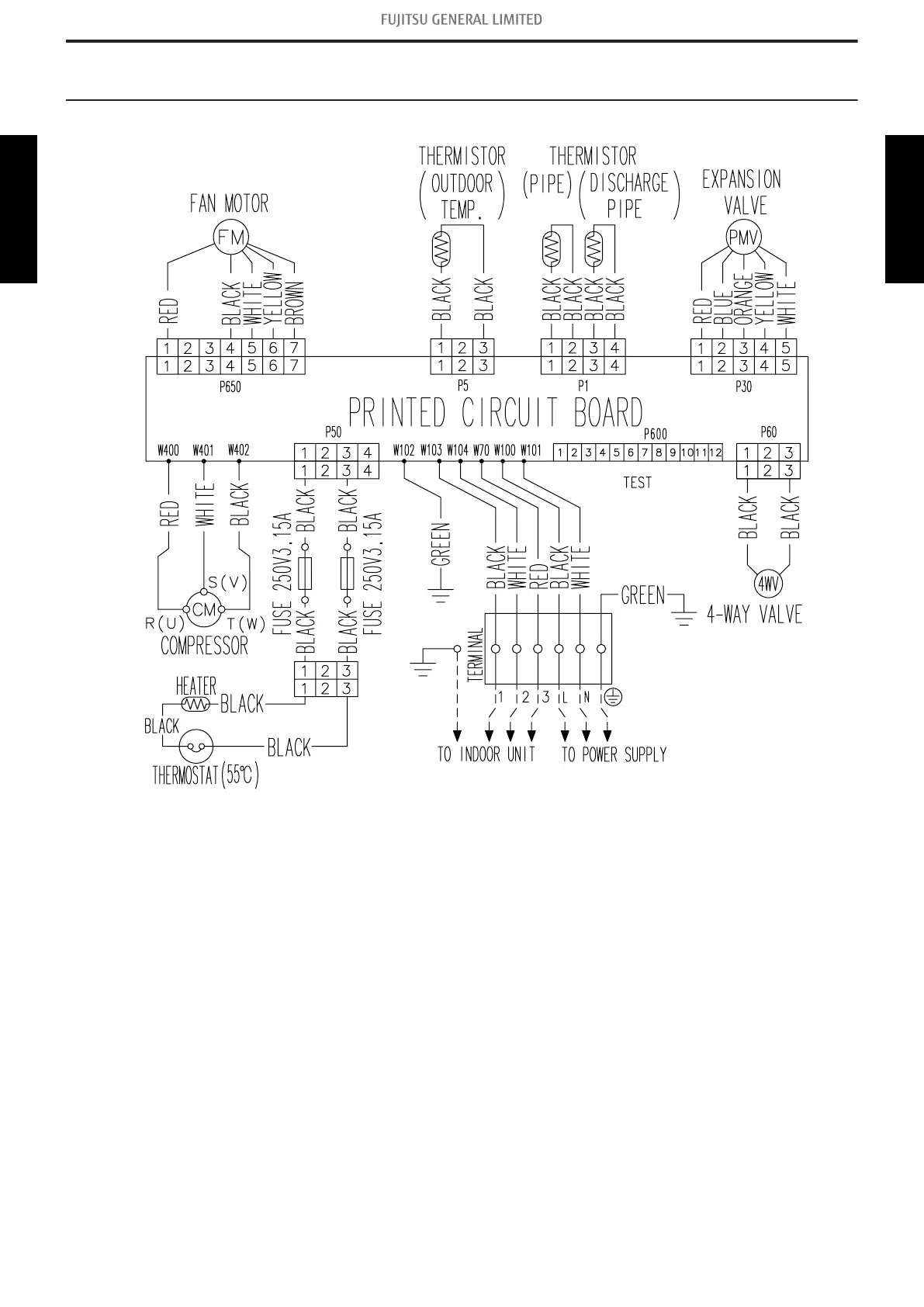

5-1. Models: AOYG09KMCDN and AOYG12KMCDN 5. Wiring diagrams
OUTDOOR UNIT
AOYG09-14KMCDN
OUTDOOR UNIT
AOYG09-14KMCDN
