3. Installation space
3-1. Models: AOYG09LZCAN, AOYG12LZCAN, and
AOYG14LZCAN

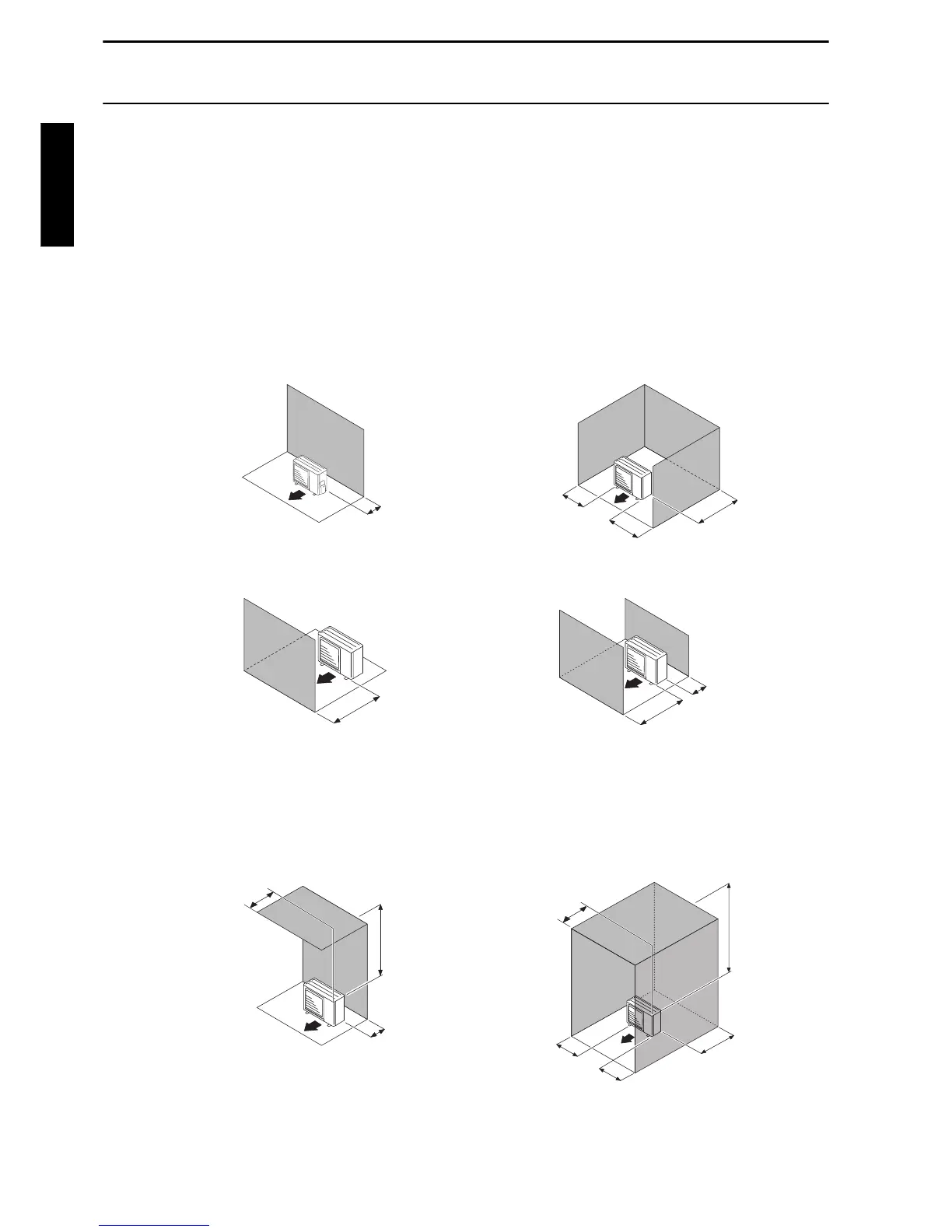

Space requirement
Provide sufficient installation space for product safety.
Single outdoor unit installation
• When the upper space is open:
• When there is an obstruction in the upper space:
Unit: mm
When there are obstacles at the rear only. When there are obstacles at the rear and sides.
When there are obstacles at the front only. When there are obstacles at the front and rear.
Unit: mm
When there are obstacles at the rear and
above.
When there are obstacles at the rear, sides, and
above.
