Fujitsu ASYG14LZCA User Manual

- 26 -
WALL MOUNTED ASYG09-14LZCA

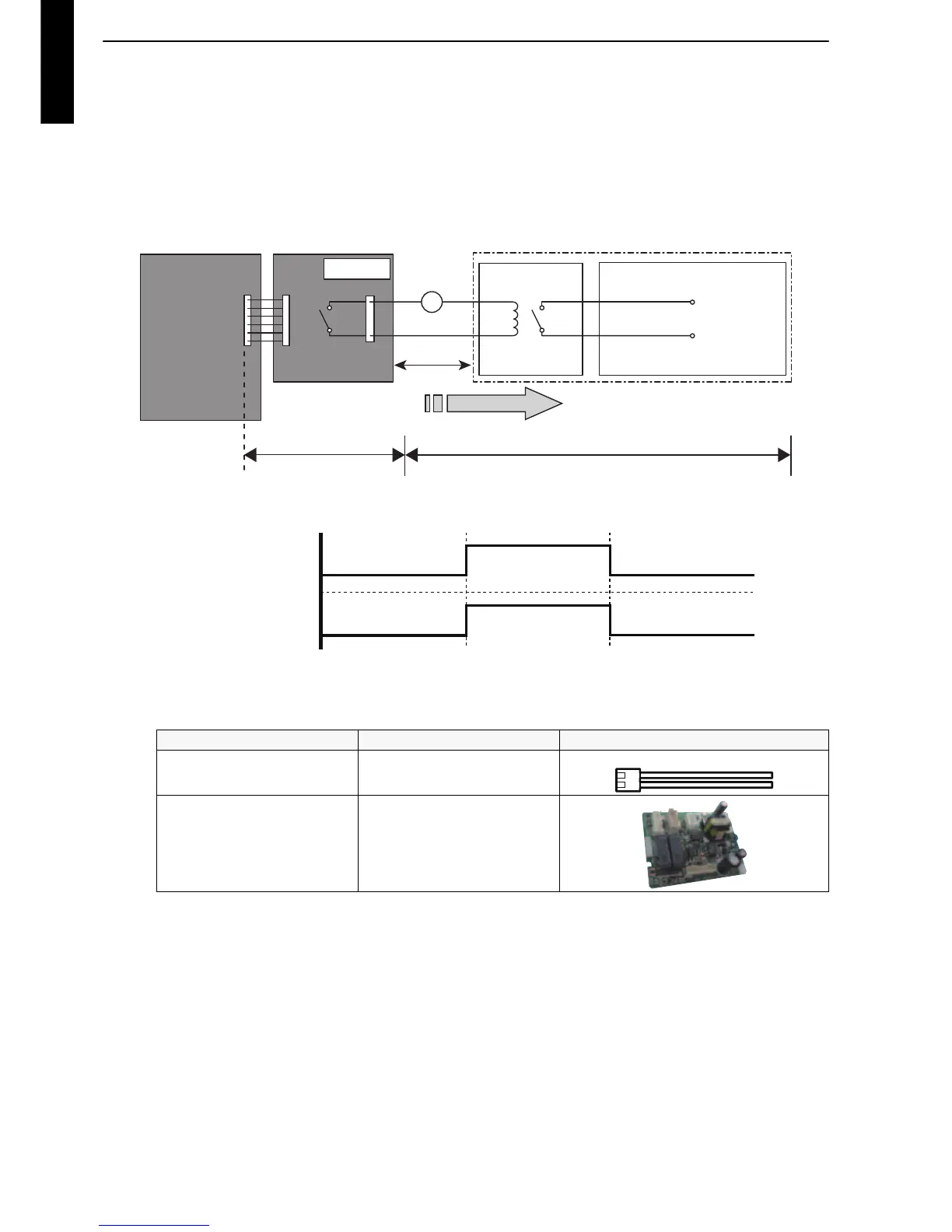

10-2. External output
With using external output function, operating status of this product can be transmitted to the
external device, and also, this product can be inter-connected with the external device.
 Operation status output
 Circuit diagram example
• *: Make the distance from the PCB to the connected unit within 10 m.
• Relay spec: Max. DC 24 V, 10 mA to less than 500 mA.
 Optional part
* For operating the external function, the wall mounted type requires the communication kit in
addition to the wire (UTY-XWZXZ5).
Part name Model name Exterior
External connect kit UTY-XWZXZ5
External output wire
Communication kit UTY-TWBXF1
Locally purchasedOptional parts
Example: Display
Indoor unit
control PCB
Communication kit Connected unit
Example: Relay unit
1
2
Signal
Relay
power supply
V
Connector
10 m*
DC 24 V
On
Off
Operation
Stop
Indoor unit
Output signal
