- 43 -
WALL MOUNTED
AOYG09-14LZCAN

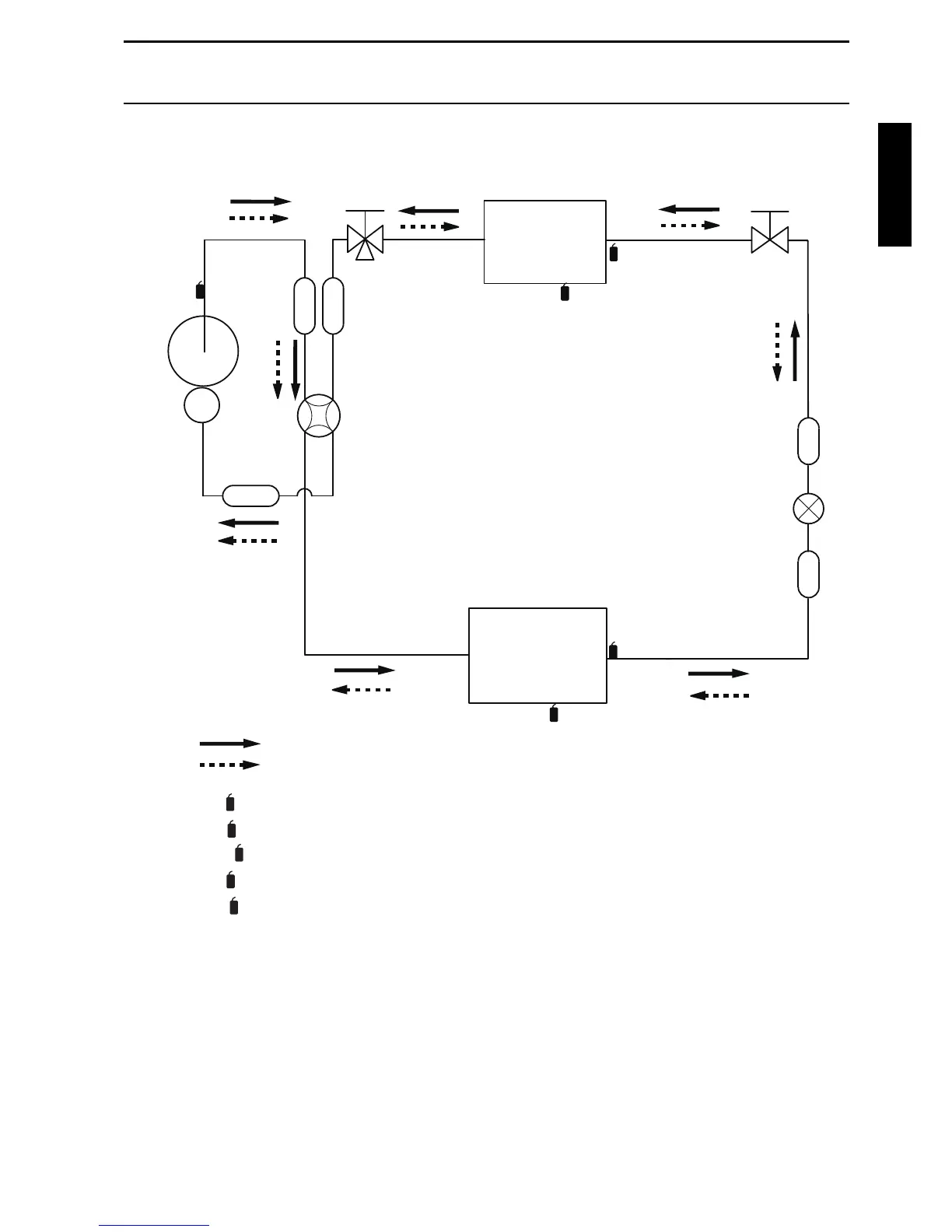

4. Refrigerant circuit
4-1. Models: AOYG09LZCAN and AOYG12LZCAN
2-way
valve
Strainer
Strainer
3-way
valve
MufflerMuffler
Acccumlator
4-way valve
Expansion valve
Heat exchanger
( INDOOR )
Heat exchanger
( OUTDOOR )
Compressor
Cooling
Heating
Th
D
Th
R
Th
PI
Th
HO
Th
O
Th
R
Th
PI
Th
D
Th
O
Th
HO
:Thermistor (Room temp.)
:Thermistor (Pipe temp.)
:Thermistor (Discharge temp.)
:Thermistor (Outdoor temp.)
:Thermistor (Heat exchanger out temp.)
