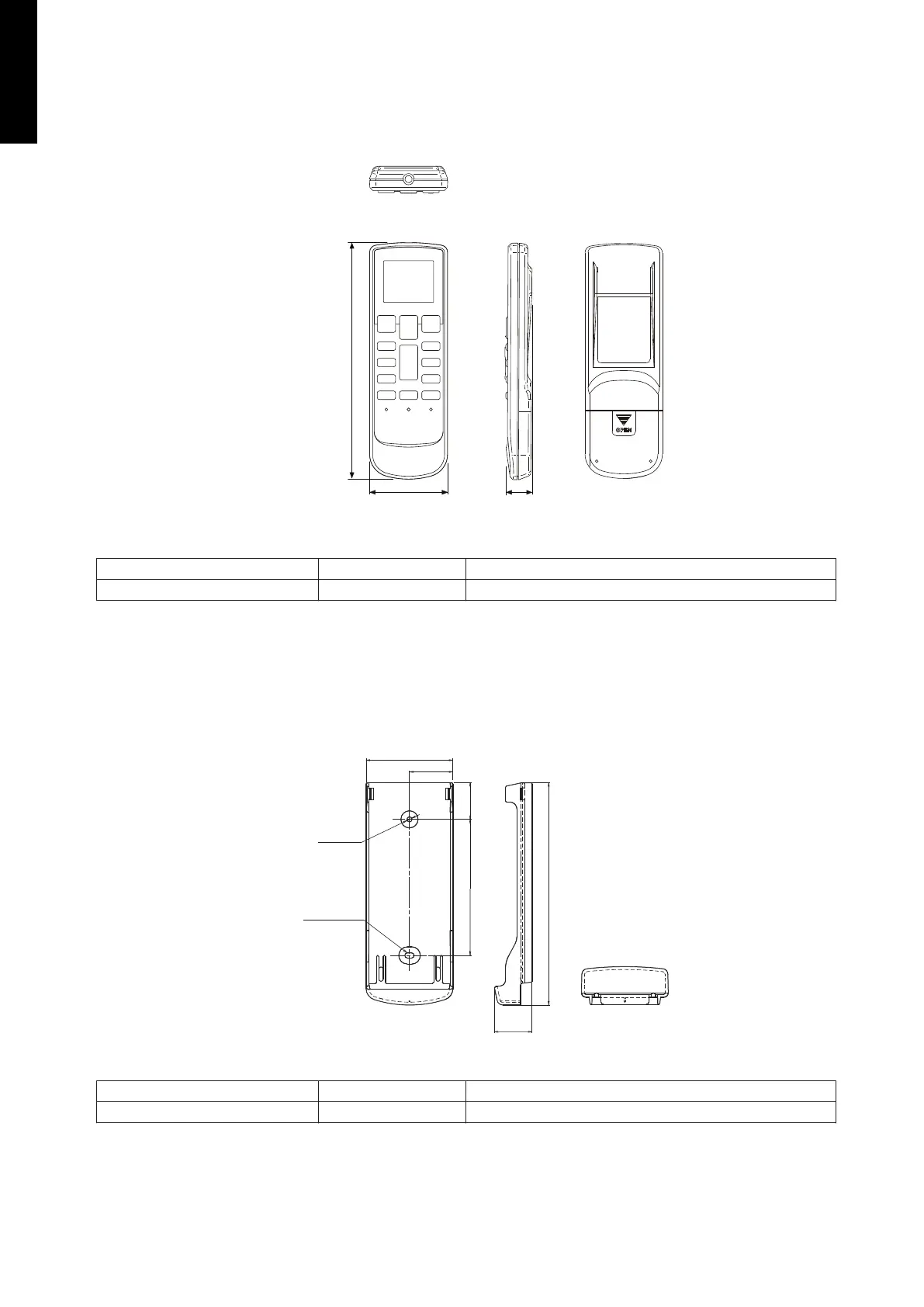

Specifications

 Controller

Unit: mm

Front view Side view Rear view

170

Top view

Size (H × W × D) mm 170 × 56 × 19

Weight g 85 (without batteries)

NOTE: Actual number of buttons might be different from the figure above.

 Holder

Unit: mm

Front view Side view Bottom view

60.4

30.2

Ø 3.5

3.5 x 6.5

(hole)

26.2

25.595

154.7

Size (H × W × D) mm 154.7 × 60.4 × 26.2

Weight g 28

DESIGN & TECHNICAL MANUAL

- 160 -
