Specifications

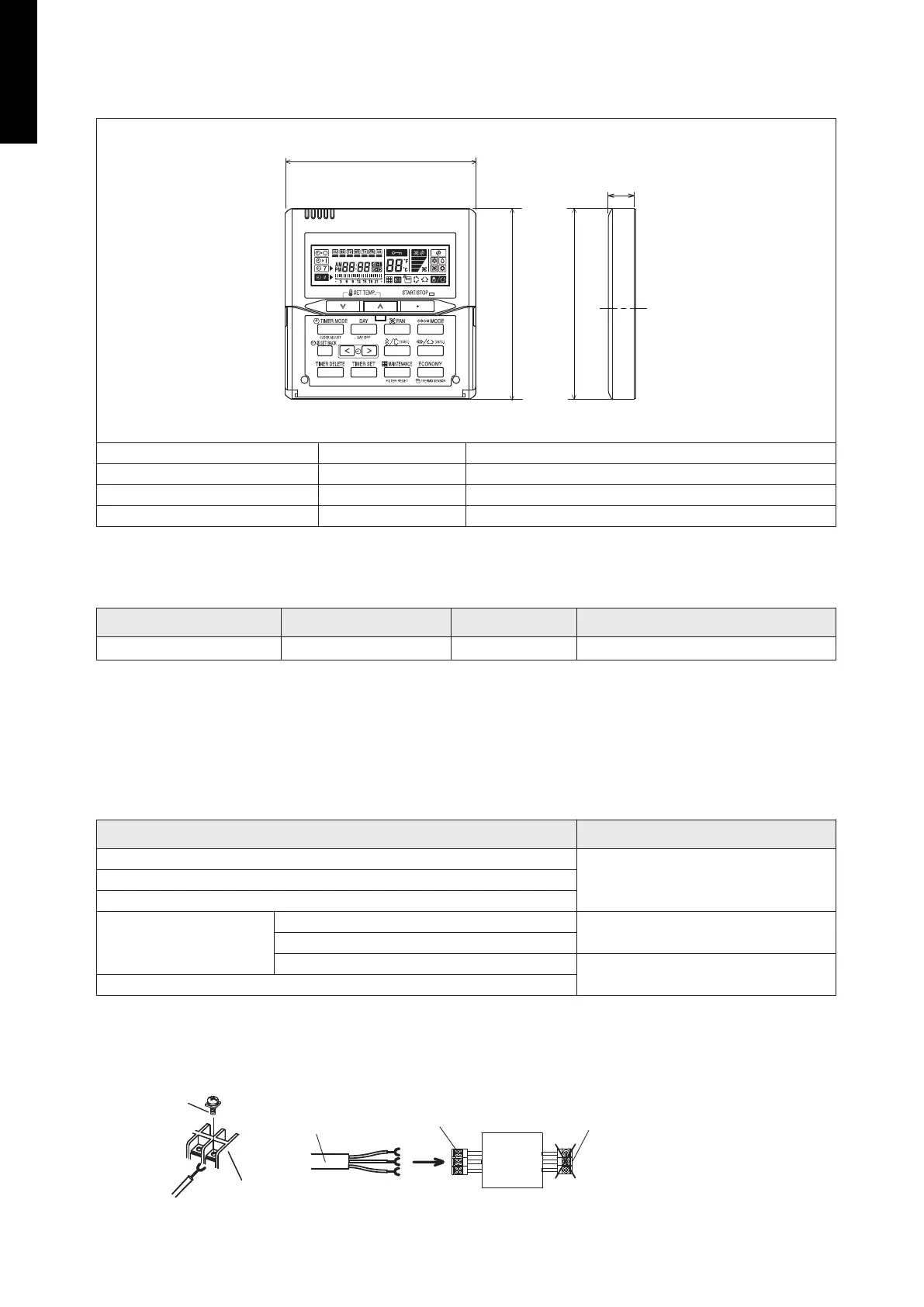

Dimensions and other specifications on the wired remote controller are as follows.
Unit: mm
120
120
120
18
Side viewFront view
Size (H × W × D) mm 120 × 120 × 18
Weight g 160
Cable length (accessory) m 10
Power V 12
 Wiring specifications
Use Cable size Wire type Remarks
Remote controller cable
0.33 mm
2
(22 AWG)
Polar 3-core Use sheathed PVC cable.
¢
Installation
 Connection pattern
NOTE: Connection pattern is different according to type of Indoor unit.
Indoor unit type Connection pattern
Compact cassette
Pattern ASlim duct, Mini duct
Floor/Ceiling
Wall mounted
LU
Pattern B
LM
LF
Pattern C
Floor
 Pattern A
Connect the end of remote controller cable directly to the exclusive terminal block.
PCB
M4 screw
Terminal block
Remote controller cable
Remote controller
terminal block
Outdoor unit or Power supply terminal
block or Remote controller terminal block
NOTE: It may be failed if it is connected to the outdoor unit or the terminal block for power
supply.
DESIGN & TECHNICAL MANUAL
- 172 -
MULTI TYPE 5, 6 ROOMS TYPE
