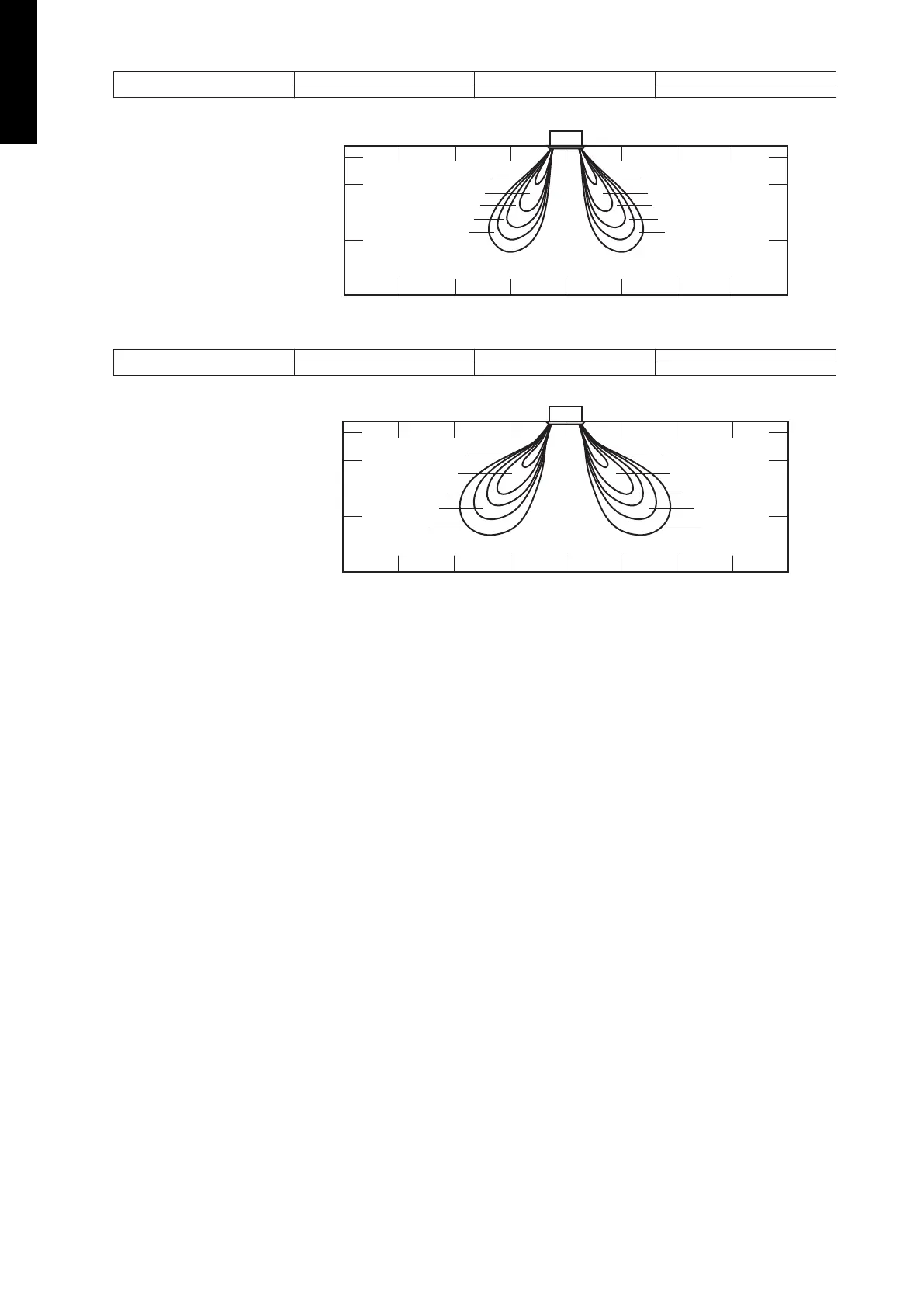

• Air velocity distribution
Measuring conditions
NOTE: Reference data
Fan speed Operation mode Outlet directions
HIGH HEAT 4-way air outlet
Side view
Vertical airflow direction louver: down
2.0 2.0
1.5 1.5
1.0 1.0
0.5 0.5
0.25 0.25
4
3
2
1
0
1
2
34
(m)
0
1
2
2.7
(m)
2.5
Unit : m/s
• Air temperature distribution
Measuring conditions
NOTE: Reference data
Fan speed Operation mode Outlet directions
HIGH HEAT 4-way air outlet
Side view
Vertical airflow direction louver: down
30 30
28 28
26 26
24 24
22 22
4
3
2
1
0
1
2
34
(m)
0
1
2
2.7
(m)
2.5
Unit : °C
DESIGN & TECHNICAL MANUAL
- 50 -
MULTI TYPE 5, 6 ROOMS TYPE
