Fujitsu D2778 User Manual

Mainboard D2778 Deutsch - 25
Fujitsu Technology Solutions 61

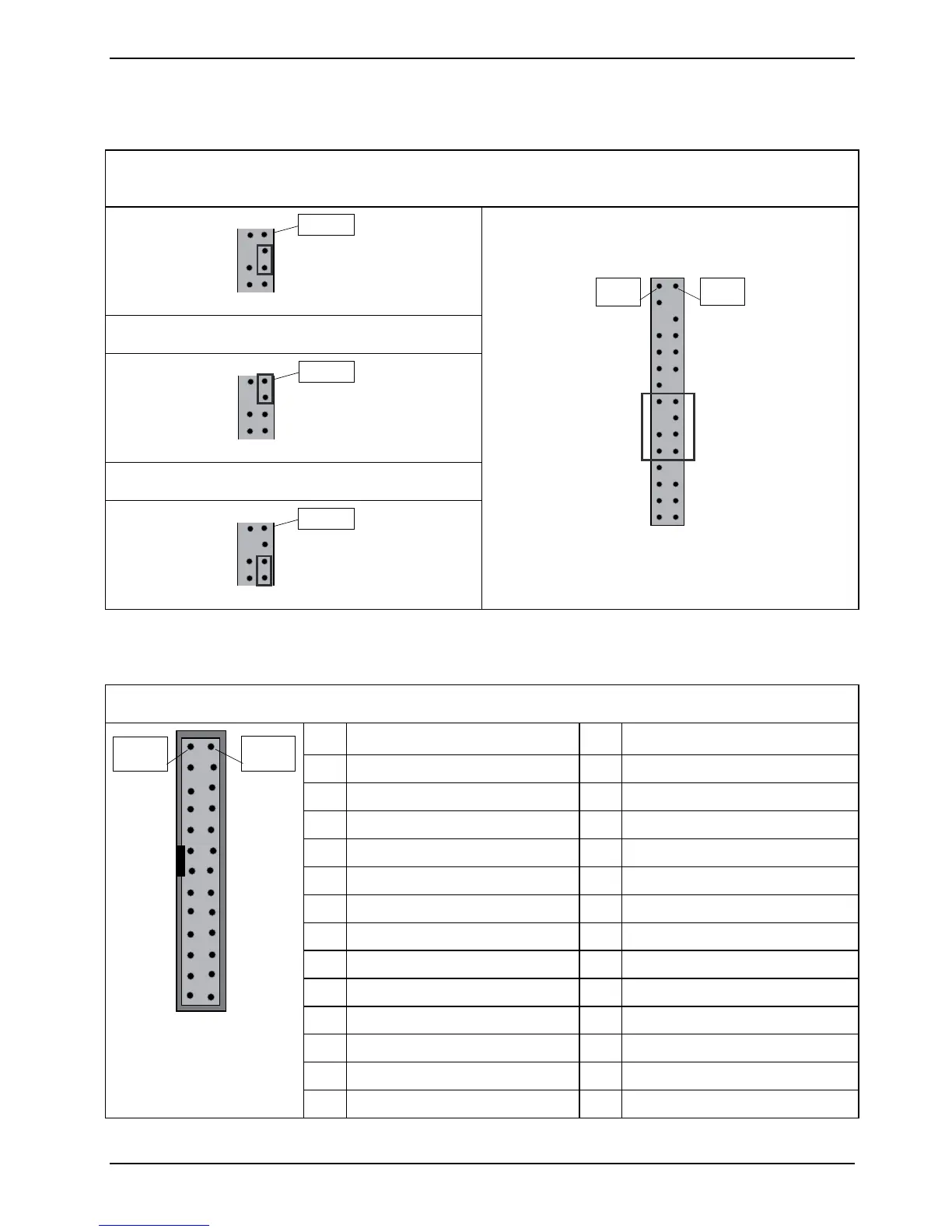

Konfigurations-Jumper innerhalb der Frontblende
Standard-Jumper-Position (Password Skip (Kennwortüberspringung) und Recovery BIOS
deaktiviert)
Pin 16
Kennwortüberspringung aktiviert
Pin 16
Recovery BIOS aktiviert
Pin 16
Pin 2
Pin 1
Parallel Port
Parallel Port ( intern )
PIN Signal PIN Signal
1 Strobe 2 AutoFD
3 Data0 4 Error
5 Data1 6 Init
7 Data2 8 Sel_L
9 Data3 10 GND
11 Data4 12 GND
13 Data5 14 GND
15 Data6 16 GND
17 Data7 18 GND
19 ACK 20 GND
21 Busy 22 GND
23 Empty 24 GND
Pin 2
Pin 1
25 Select 26 GND
