26 –
Deutsch Mainboard
D2778
62
Fujitsu Technology Solutions

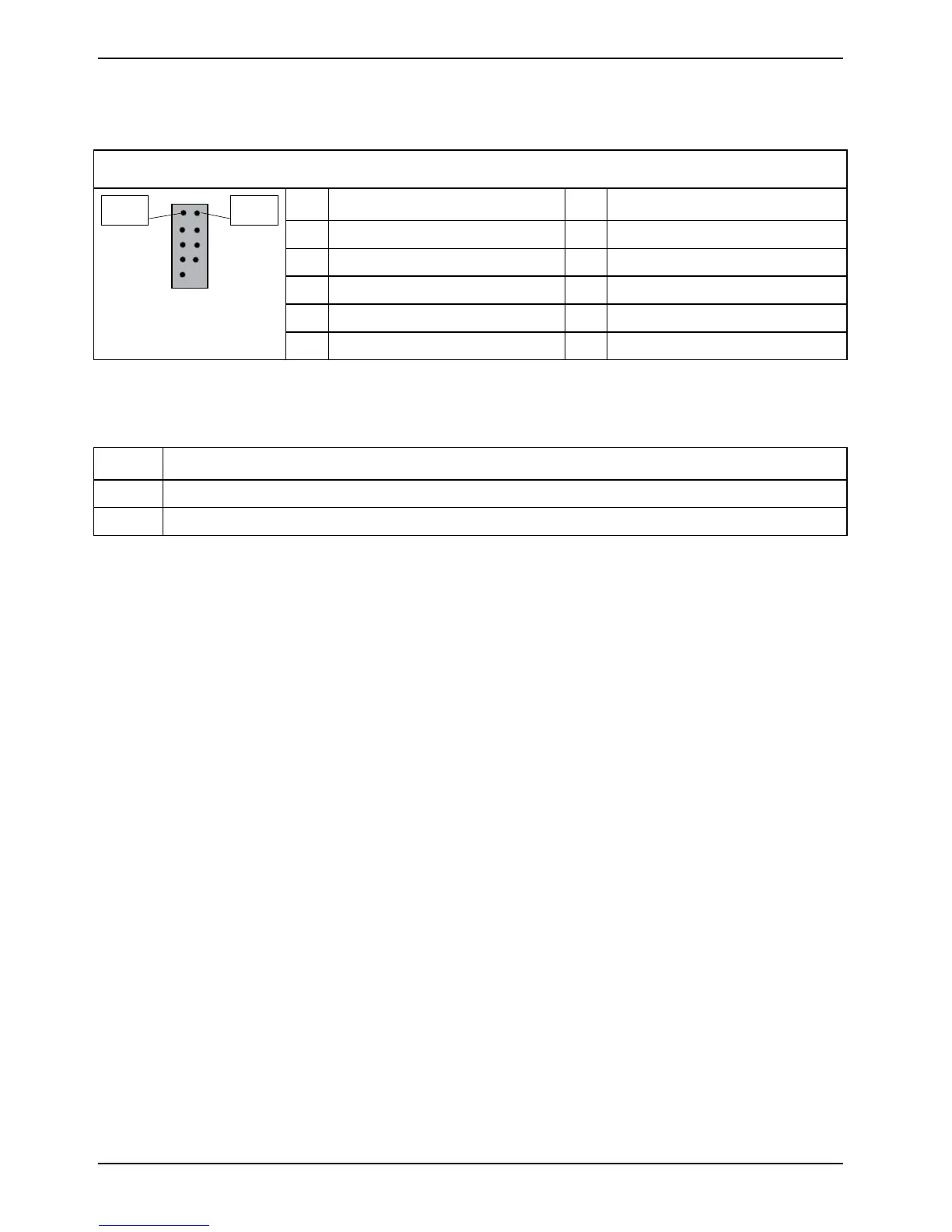

COM2 Ports
PIN Signal
PIN
Signal
1
DCD 2
2
DSR 2
3
SIN 2
4
RTS 2
5
SOUT 2
6
CTS 2
7
DTR 2
8
RI 2
Pin 1
Pin 2
9 GND
TPM-Jumper
POL Signal
1 RST_PCI_TPM_L
2 TPM_RESET_L
Standardmäßig ist der TPM-Jumper gesetzt. Das En
tfernen des Jumpers führt zur Deaktivierung der
TPM-Funktionalität.
67
69
Table of Contents
English
7
Default Chapter
7
Table of Contents
7
Overview Mainboard D2778
9
Notational Conventions
11
Important Notes
12
Information about Boards
12
Hardware Specifications
14
Block Diagram
16
System Security Features
17
Basic Security Features
17
Trusted Platform Module (TPM)
17
Smartcase Dynamicusb
18
Choose Proper Parts for Your System
19
Central Processor Unit (CPU) Considerations
19
System Memory Interface
19
BIOS POST-Codes (Port 80 Status Indicators)
20
Power Supply Considerations
25
Board Installation
26
Fan Connector (Internal)
26
Intrusion Connector (Internal)
26
PC2004 PSU Connector (PC2004)
26
Frontpanel Connector (Internal)
27
LCD Connector (Internal)
27
Communiction Connectors
28
User Experience Connector
29
System Monitoring and Management Connectors
29
Configuration Jumper Inside Front Panel
29
Parallel Port
30
COM2 Ports
30
TPM Jumper
30
Installing the Memory
31
Memory Installation Procedure
32
Installing the Processor and Heatsink
34
Installing the Processor
34
Mounting Heat Sink
36
Installing Add-In Cards
37
Connecting External Devices
38
External Ports
38
Installing the Power Supply
39
Replacing Lithium Battery
40
BIOS Update
41
When Should a BIOS Update be Carried out
41
How Does a BIOS Update Work
41
BIOS Update under Windows with Deskflash Utility
41
BIOS Recovery
41
Glossary
42
Deutsch
43
Übersicht über das Mainboard D2778
44
Handbuchkonventionen
46
Wichtige Hinweise
47
Allgemeine Informationen IM Zusammenhang mit Boards
47
Hardware-Spezifikationen
49
Blockdiagramm
51
Systemsicherheitsfunktionen
52
Grundlegende Sicherheitsfunktionen
52
Trusted Platform Module (TPM)
52
Smartcase Dynamicusb
53
Auswahl der Korrekten Teile für das System
55
Betrachtungen zur CPU (Central Processor Unit)
55
Systemspeicherschnittstelle
55
BIOS POST-Codes (Port 80-Statusanzeigen)
56
Betrachtungen zur Stromversorgung
62
Installation des Boards
63
Lüfteranschluss (Intern)
63
Intrusion-Anschluss (Intern)
63
PC2004 PSU-Anschluss (PC2004)
63
Frontblendenanschluss (Intern)
64
LCD-Anschluss (Intern)
64
Kommunikationsanschlüsse
65
Anschluss Benutzererfahrung
66
Anschlüsse für Systemüberwachung und -Verwaltung
66
Konfigurations-Jumper Innerhalb der Frontblende
67
Parallel Port
67
COM2 Ports
68
TPM-Jumper
68
Speicherinstallation
69
Vorgehen bei der Speicherinstallation
70
Installation von Prozessor und Wärmeableiter
72
Prozessorinstallation
72
Montage des Wärmeableiters
74
Installation von Add-In-Karten
75
Anschließen von Externen Geräten
76
Externe Ports
76
Installieren des Netzteils
77
Austauschen des Lithium Akkus
78
BIOS-Update
79
Wann sollte ein BIOS-Update Durchgeführt werden
79
Wie Funktioniert ein BIOS-Update
79
BIOS Recovery
79
Glossar
80
