D3031 (RX200 S6) Technical Manual 33
Features Connectors and indicators

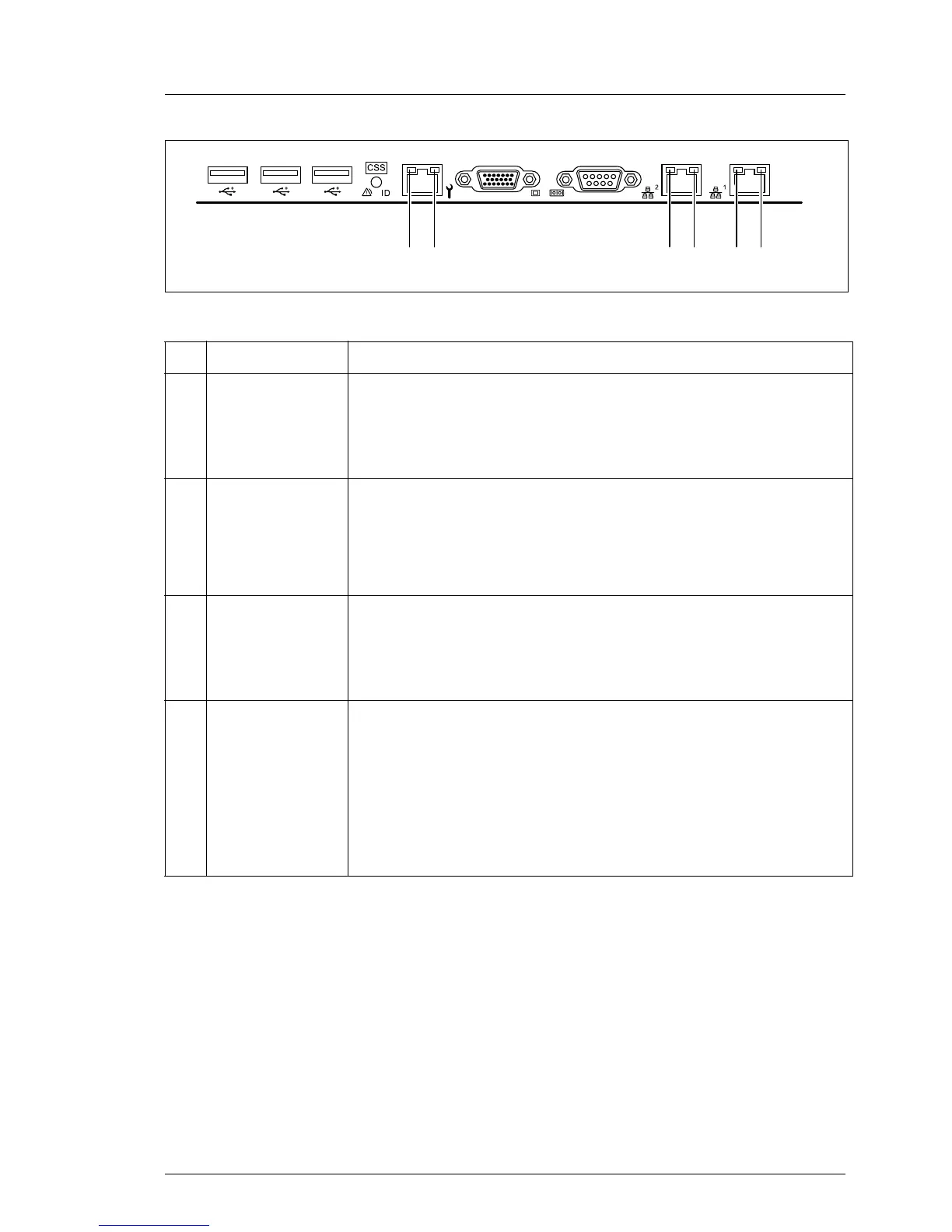

Figure 8: LAN indicators
No Indicator Description
1LAN
link/transfer
(management
LAN)
Steady green signal when a LAN connection exists.
Remains dark when no LAN connection exists.
Flashes green when LAN transfer takes place.
2 LAN speed
(management
LAN)
Steady green signal in the event of a LAN transfer rate
of 100 Mbit/s.
Remains dark in the event of a LAN transfer rate of
10 Mbit/s.
3LAN
link/transfer
(system LAN)
Steady green signal when a LAN connection exists.
Remains dark when no LAN connection exists.
Flashes green when LAN transfer takes place.
4 LAN speed
(system LAN)
Flashes yellow in the event of a LAN transfer rate of
1 Gbit/s
Steady green signal in the event of a LAN transfer rate
of 100 Mbit/s.
Remains dark in the event of a LAN transfer rate of
10 Mbit/s.
