32 Technical Manual D3031 (RX200 S6)
Connectors and indicators Features
3.6.2 Connector panel

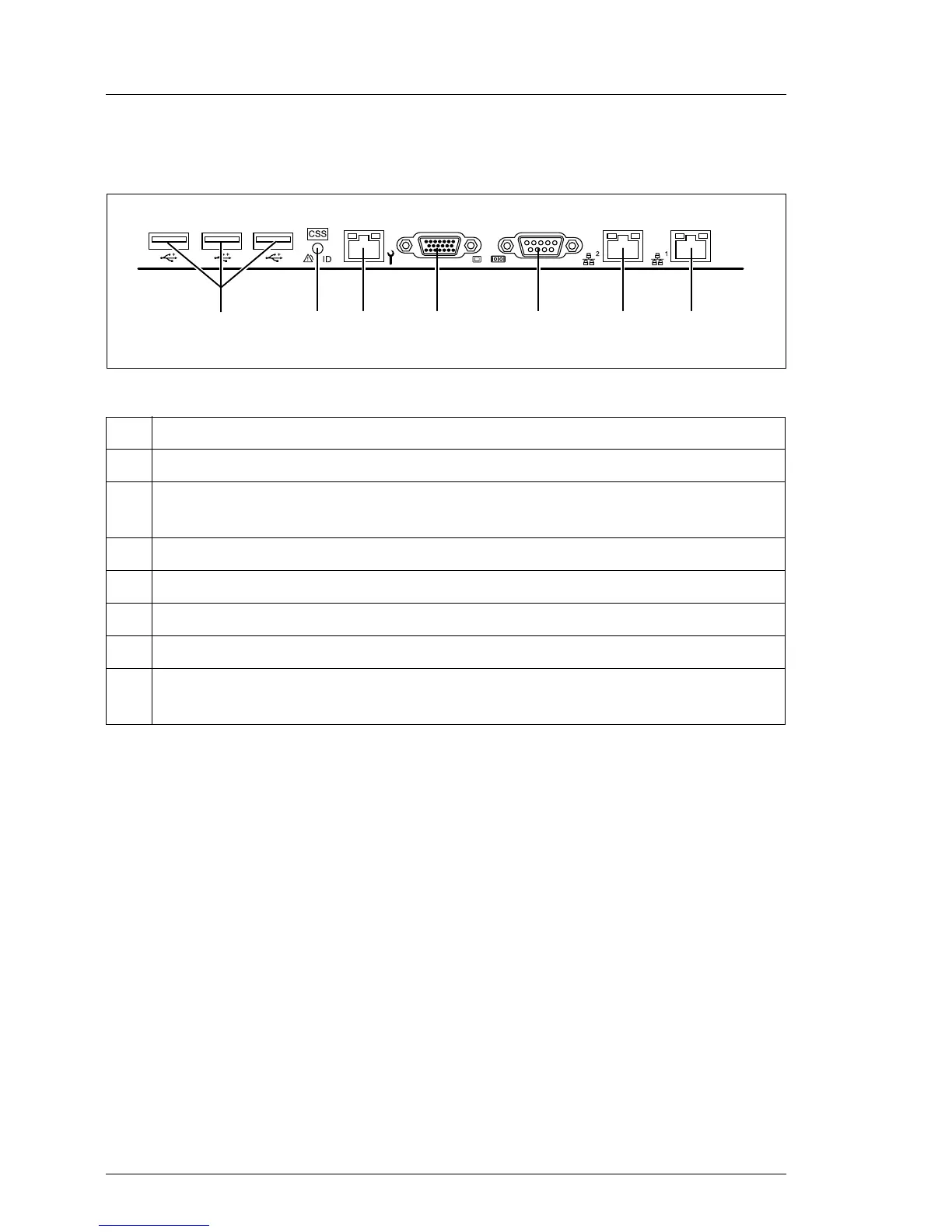

Figure 7: Connector panel
LAN connectors
The system board is equipped with an Intel
®
dual-port Gigabit Ethernet
controller (Intel 82575EB). The LAN controller supports transmission rates of 10
Mbit/s, 100 Mbit/s and 1 Gbit/s.
The LAN controller also supports WOL functionality by means of Magic
Packet™. It is also possible to start a system via a LAN without a separate boot
hard disk drive. PXE is supported here.
The separate management LAN connector is used as a management interface
(iRMC S2) and is prepared for operation with the Remote Management.
Optionally LAN connector 1 can also be used for iRMC S2 server management.
Each LAN connector has two LEDs which display the speed of the connection
and its status:
No. Description
1 USB connectors
2 Global error indicator (orange), CSS indicator (yellow), ID indicator
(blue); (description see preceding section)
3 Management LAN connector (for iRMC S2 server management function)
4 Video connector (VGA)
5 Serial connector COM
6 System LAN connector (LAN 2)
7 System LAN connector (LAN 1), also for iRMC S2 server management
function
12
04536
