System Monitoring

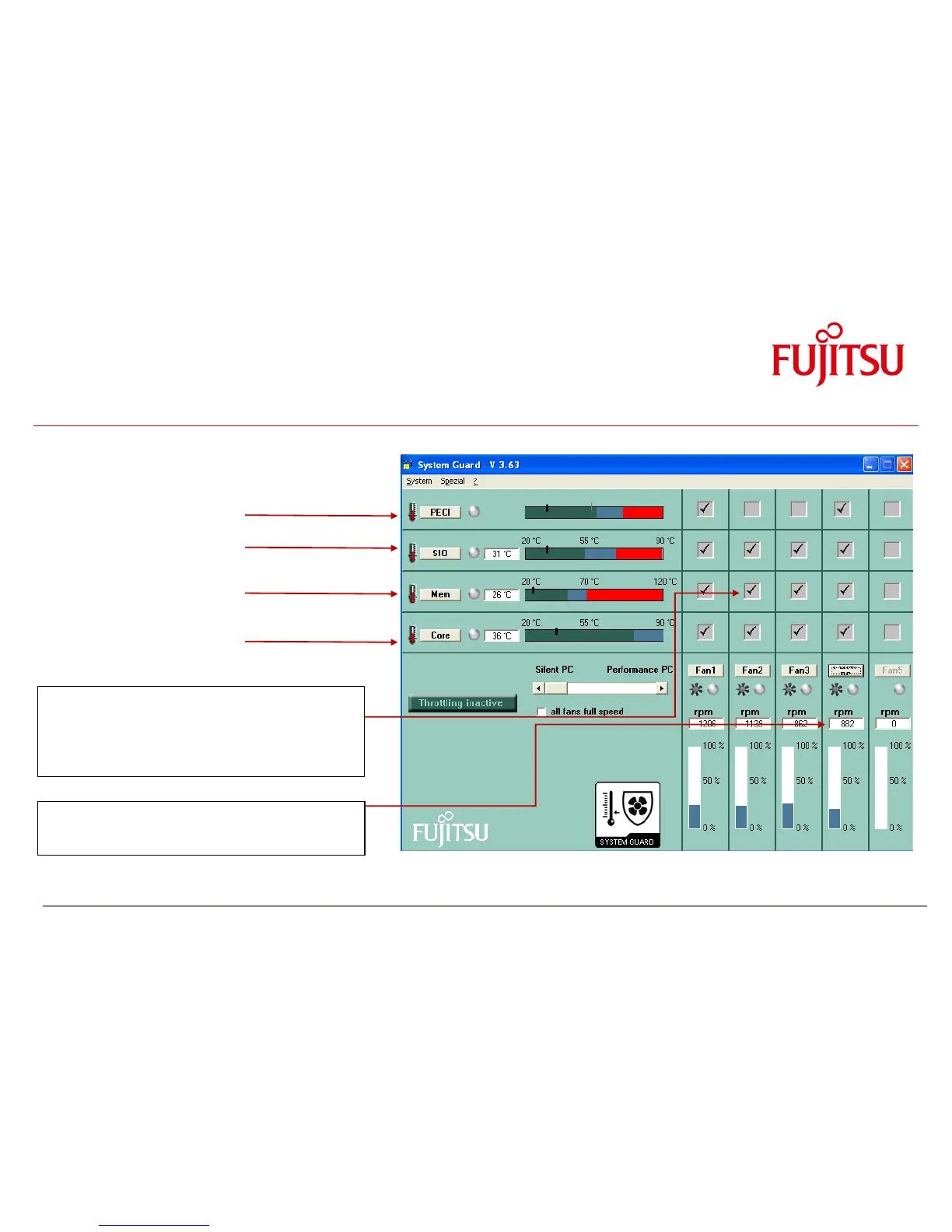

4.3 D3162-B: SystemGuard - Details
Temperature Sensors
Processor Sensor
1)
Super I/O Sensor
Memory Sensor
Core Voltage
Regulator Sensor
Sensor / Fan Matrix
Indicates which sensor influences the specific fan speed
Note: Characteristics for FAN1 is always dependent on the CPU
temperature – fully controlled by the system BIOS.
Due to safety reasons the influence of the CPU sensor for FAN1
cannot be disabled!
FanPS
Displays the fan speed of the power supply fan (specific PSU
option)
1) Note: As Intel has replaced the analogue processor „diode“ temperature measurement by the digital
„PECI“ measurement (Platform Environment Control Interface) which does no longer provide the absolute processor
temperature, SystemGuard can only display the processor´s temperature range.
