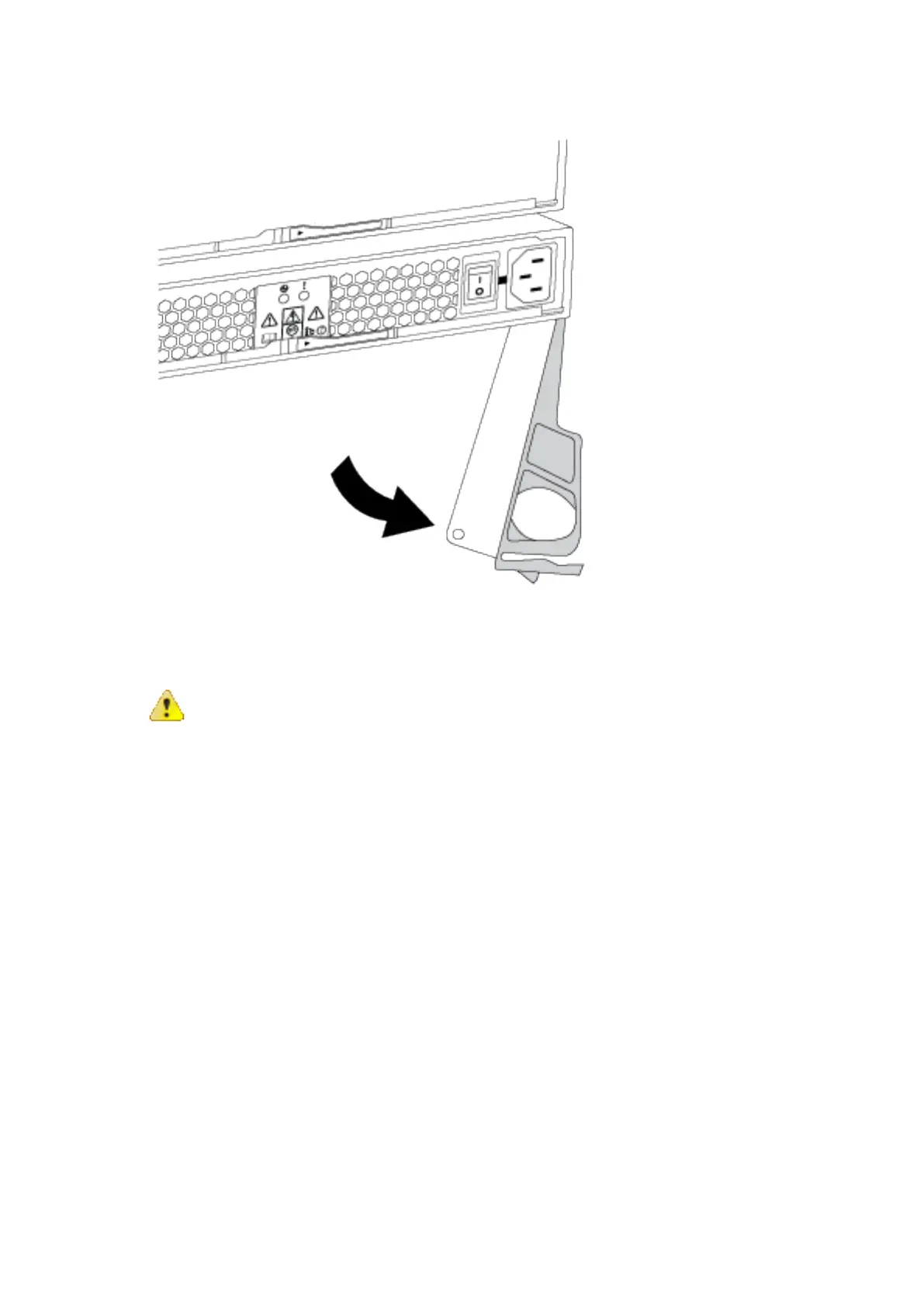

4. Use the cam handle to slide the power supply out of the system.
Attention: When removing a power supply, always use two hands to support its weight.
As you remove the power supply, a flap swings into place to block the empty bay, helping to maintain air
flow and cooling.
What to do next
Go to Install new power supply.
Install new power supply
You install a new power supply to replace the failed one. When you install a power supply (referred to in
SANtricity System Manager as a power-fan canister), you slide the part into the shelf, close the cam handle,
reconnect the power cord, and reapply power.
Before you begin
• You have a replacement power supply that is supported for your controller shelf or drive shelf model.
• You have unpacked the replacement power supply.
Procedure
1. Make sure that the on/off switch of the new power supply is in the Off position.
2. Using both hands, support and align the edges of the power supply with the opening in the system
chassis, and then gently push the power supply into the chassis using the cam handle.
The power supplies are keyed and can only be installed one way.
33
