fi-7480 / fi-7460 CONSUMABLE REPLACEMENT AND CLEANING INSTRUCTIONS
3

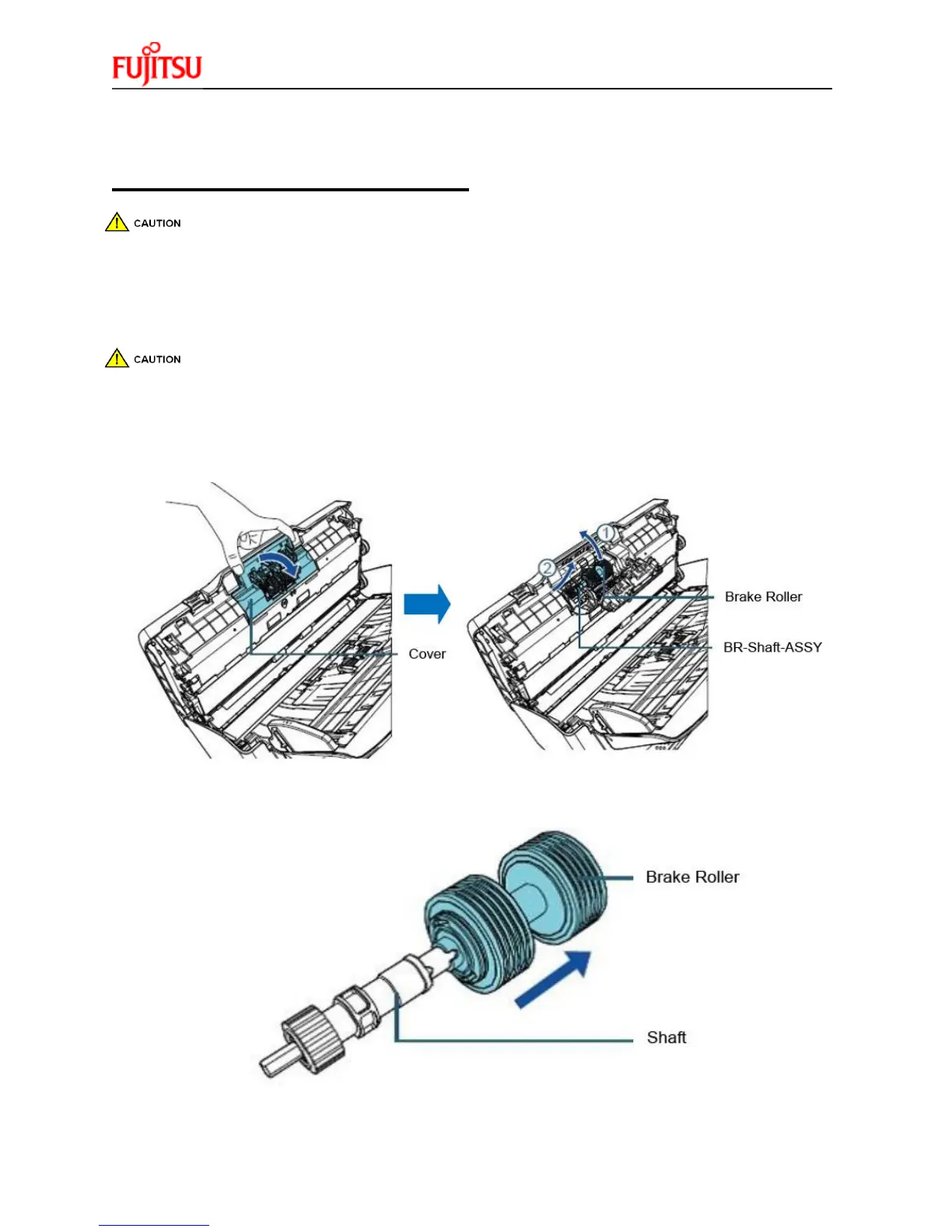

REPLACING THE BRAKE ROLLER
The Glass inside the ADF becomes very hot when the scanner is being used. Before
you replace the consumables, turn off the power, unplug the power cable, and let cool
for 15 minutes
1. Remove all documents from the ADF paper chute
2. Open the ADF
When the ADF is open, it might close accidentally. Use caution when the ADF is open.
3. Remove the Brake Roller Shaft Assembly
a. Hold both Ends of the cover and open it in the direction of the arrow.
b. Lift the right side of the roller. Pull out the shaft form the slot on the left
4. Remove the brake roller from the Brake Roller Shaft Assembly
To Next Page
